Forklift Wiring Harness

Forklift Wiring Harness: Main Electrical Harness & Branch Harness Assemblies

The wiring harness is the nervous system of the forklift — every electrical signal, from the ignition key to the starter, from the ECU to the injectors, from the dashboard to every warning light — travels through the harness. A damaged harness doesn’t just cause one circuit to fail; it can cause ghost faults across multiple unrelated systems as wires short together inside a common loom. A single chafed wire against the chassis can blow fuses randomly, cause intermittent no-start conditions, or trigger false sensor readings that lead to misdiagnosis and unnecessary parts replacement.

Kingstream supplies replacement wiring harnesses for HELI, Toyota, Komatsu, CAT, and Nissan forklifts. Every harness is continuity-tested pin-to-pin and insulation-tested for short circuits before shipment, backed by a 6-month warranty.

Main Harness vs Branch Harness:

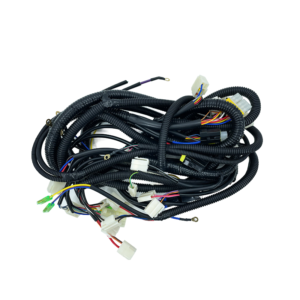

Main Wiring Harness — The primary harness that runs from the dashboard through the chassis to the engine bay, connecting the battery, ECU, fuse box, ignition, and all major systems. The A300-7.5T main harness is designed for 7.5-ton HELI diesel forklifts with OEM connector pinouts and wire gauge specifications.

Branch Harness — Smaller sub-harnesses for specific areas: engine harness (injectors, sensors, alternator), dashboard harness (gauges, switches, indicator lights), and lighting harness (headlights, turn signals, tail lights).

Common Causes of Wiring Harness Failure:

• Chafing against sharp metal edges — The most common failure. Loom tape wears through, then wire insulation wears through, exposing copper to the chassis. Results in intermittent short circuits.
• Corrosion at connectors — Water and chemical ingress at multi-pin connectors causes high-resistance contacts. The circuit works cold but fails as resistance increases with heat.
• Heat damage near the engine — Harness sections routed too close to exhaust manifolds or turbochargers experience insulation embrittlement. Wires become brittle and crack.
• Rodent damage — Forklifts parked outdoors or in warehouses attract rodents that chew wire insulation. Inspect harnesses in storage yards regularly.

When to Replace Your Wiring Harness:

• Multiple unrelated electrical faults occurring simultaneously → Wires shorted together inside the harness loom; replacing individual wires is impractical — replace the harness
• Intermittent electrical faults that change with chassis flex or vibration → Broken wire inside insulation; continuity test with harness flexed
• Burnt smell or visible melted insulation anywhere on the harness → A short-to-ground has overheated multiple wires; the harness is permanently damaged
• Corroded connectors with green or white powder inside pins → Individual connectors can be replaced if the wire is clean; if corrosion has wicked up the wire, replace the harness section
• Multiple previous repairs with crimp connectors or electrical tape → The harness has been patched repeatedly; each repair is a future failure point. Replace for reliability.

OEM Cross-Reference / Available Models:

Need a specific harness by forklift model? Send us your forklift model and harness description →

Compatible Forklift Brands:
HELI A300 series, Toyota 7FG/7FD, Komatsu FD/FG, CAT DP, Nissan FD series.

Browse our complete forklift electrical parts catalog.
