Forklift Timing Gear Chamber: Timing Covers & Chain Kits for Toyota 4Y 1DZ 7FG 8FG QC480

The timing gear chamber — also called timing cover, timing case, or front cover plate — is the cast housing bolted to the front of the engine block that encloses the crankshaft timing gear, camshaft timing gear, and timing chain or belt. It serves three critical functions simultaneously: protecting the timing components from abrasive dirt and debris contamination, providing the precision-machined bore for the front crankshaft oil seal, and serving as the alignment reference for timing marks during engine reassembly. A cracked, warped, or worn timing chamber causes persistent front-of-engine oil leaks that contaminate the timing chain and gears, accelerating wear and risking complete timing failure. A scored or oversized seal bore allows the front seal to walk out during operation, causing rapid oil loss.

Kingstream supplies replacement timing gear chambers, timing covers, and complete timing chain cover kits for Toyota 4Y (7FG/8FG forklifts), Toyota 1DZ (7FD/8FD forklifts), QC480 Chinese diesel trucks, and Xinchai D25TCIE engines. Every chamber is inspected for gasket surface flatness, seal bore diameter, and thread condition before shipment.

Types:
• Toyota 4Y OEM (11301-78155) — Japan-origin timing chamber for Toyota 4Y and GQ49GP engines in 7FG15-30 and 8FG15-30 forklifts. OEM part number, 3-month warranty
• Toyota 4Y Blue (11301-UB010) — Aftermarket timing chamber for 7F/8F/4Y engines. Cross-references to 11301-78155-71. Blue color, 2.49kg, 6-month warranty, China
• Toyota 1DZ Silver (11311-78208-71) — Hanzhi brand timing chamber for Toyota 1DZ engine in 7FD/8FD forklifts. Silver, 2.95kg, 6-month warranty
• 4Y Timing Chain Cover Kit (4Y-TIMING-KIT) — Complete timing cover kit for Toyota 4Y diesel engines. OE 18395593039, STD size, 3.5kg, 1-year warranty. Carton packing, express/sea/air shipping

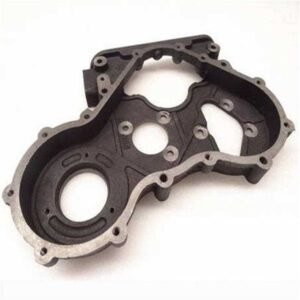

• QC480 Chamber (2408001200500) — Timing gear chamber for QC480 truck diesel engines. China
• Xinchai D25TCIE (X10000789) — Gear chamber and cover assembly for Xinchai D25TCIE diesel engines

When to Replace Timing Gear Chambers:
• Front engine oil leak that persists after replacing the crankshaft front seal → Seal bore is worn or scored. New seal cannot seat. Replace chamber
• Visible crack anywhere on the timing chamber casting, especially near bolt holes → Crack will propagate with thermal cycling. Replace immediately
• Gasket sealing surface is pitted or warped beyond 0.1mm flatness → New gasket cannot seal. Replace chamber
• Broken or stripped bolt hole threads in the chamber → Multiple stripped holes indicate replacement is needed
• Chamber damaged in front-end collision → Internal timing gears may have been impacted. Inspect gears, replace chamber

OEM Cross-Reference:

Don’t see your engine? Send your engine model and OEM number →

Compatible: Toyota 4Y/GQ49GP/1DZ, QC480, Xinchai D25TCIE. Browse our engine parts catalog.
