Forklift Transmission Control Valve: Hydraulic Flow Direction & Pressure Regulation

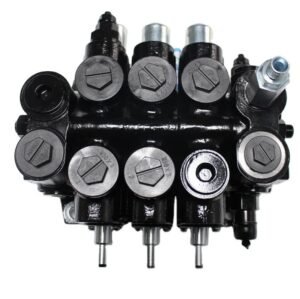

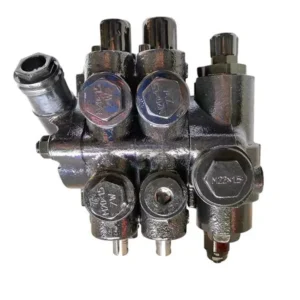

The forklift transmission control valve — also called a hydraulic directional valve or multi-circuit control valve — is the central hydraulic hub that directs pressurized transmission fluid to the mast lift, tilt, and auxiliary attachment circuits. Each spool in the valve body controls one independent hydraulic function: the operator moves a control lever, the corresponding spool shifts to direct oil flow to the correct cylinder, and a spring returns the spool to neutral when the lever is released. The valve incorporates built-in pressure relief protection to prevent hydraulic system overpressure. Kingstream supplies OEM-spec control valves including the 3-spool CDB2-F15-AOO for TCM FD20C-30C series, the multi-circuit CDB2-F15 for HELI/LONGGONG/BOALI forklifts, the CDB-F20-03 for 4-7 ton heavy-duty applications, and the HELI A20A7-30431 valve.

When to Replace Your Control Valve — Common Symptoms
• Hydraulic function drifts — mast slowly lowers or tilt angle changes without operator input → Worn spool-to-bore clearance causing internal hydraulic leakage
• External oil leak between valve body sections → Failed inter-section O-rings or gaskets
• Jerky or erratic hydraulic operation during lift/tilt → Contaminated spool bore causing spool binding or sticking
• Control lever feels loose, unresponsive, or fails to return to center → Broken spool return spring
• Complete loss of one hydraulic function while others work normally → Seized spool in its bore for that specific circuit

OEM Cross-Reference / Available Models

Don’t see your model? Send us your forklift model and valve specifications →

Compatible Forklift Brands
TCM FD20C-30C, HELI (2-5 ton and A20A7 OEM), LONGGONG, BOALI, and other forklift brands with monoblock or multi-circuit hydraulic control valves.

Browse our complete Forklift Hydraulic Transmission Parts catalog for clutch assemblies, torque converters, and transmission rebuild components.
