Forklift Cylinder liner

Forklift Cylinder Liner: Engine Sleeves & Piston Kits for Xinchai 490 Toyota 2Y Mitsubishi S4S Isuzu C240 Weichai

The cylinder liner — also called cylinder sleeve — is the replaceable cast iron tube pressed or slipped into the engine block cylinder bore that provides the precision wear surface for the piston rings. The liner bore finish directly determines oil consumption, compression, and blow-by. A worn, scored, or out-of-round liner causes blue smoke, power loss, hard starting, and crankcase pressurization from blow-by. Liners are categorized as wet liners (direct coolant contact on the outside of the liner — used in Xinchai 490, Toyota 2Y, Isuzu C240) or dry liners (pressed into a solid block bore without coolant contact). When one liner is worn beyond the service limit, replace all liners as a set to maintain even cylinder wear and compression balance across the engine.

Kingstream supplies replacement cylinder liners, complete liner kits, and cylinder piston kits for Xinchai 490B/XC490B (the most common Chinese forklift engine), Toyota 2Y (86mm bore), Mitsubishi S4S/S6S, Isuzu C240, and Weichai R4105/R6105 engines. Liners are manufactured from wear-resistant cast iron and available individually, as complete liner sets, or as full piston-and-liner rebuild kits.

Types:
• Xinchai 490B-01005 — Individual cylinder liner for Xinchai 490BPG/A490BPG/C490B engines. Cross-ref 80033020159. HELI/Hangcha 2-3.5T forklifts
• Xinchai 490B Liner + Piston Kit — 100% original Xinchai complete kit: liners, pistons, rings, wrist pins, seals. 1kg per cylinder, 1-year warranty, Chongqing
• Xinchai 490B-04001B (PASOU) — Complete piston liner kit for XC490B/490BPG. Cast iron, 12kg set, 3-month warranty, Guangdong
• Toyota 2Y 86mm (11461-72010) — Cylinder liner for Toyota 2Y diesel engine. 86mm bore × 90mm OD × 154mm length. Santosh Auto Parts India, 1-year warranty. OE export quality, MOQ 60
• Mitsubishi S4S/S6S (32A07-00300) — Cylinder liner for Mitsubishi S4S and S6S diesel engines. Hanzhi brand, 0.5kg, 6-month warranty, Zhejiang
• Isuzu C240 Kit (Z-5-87810-536-2) — Complete cylinder liner kit for Isuzu C240 3G. BRIGHT brand, stainless steel electroplated, 14kg set, 6-month warranty

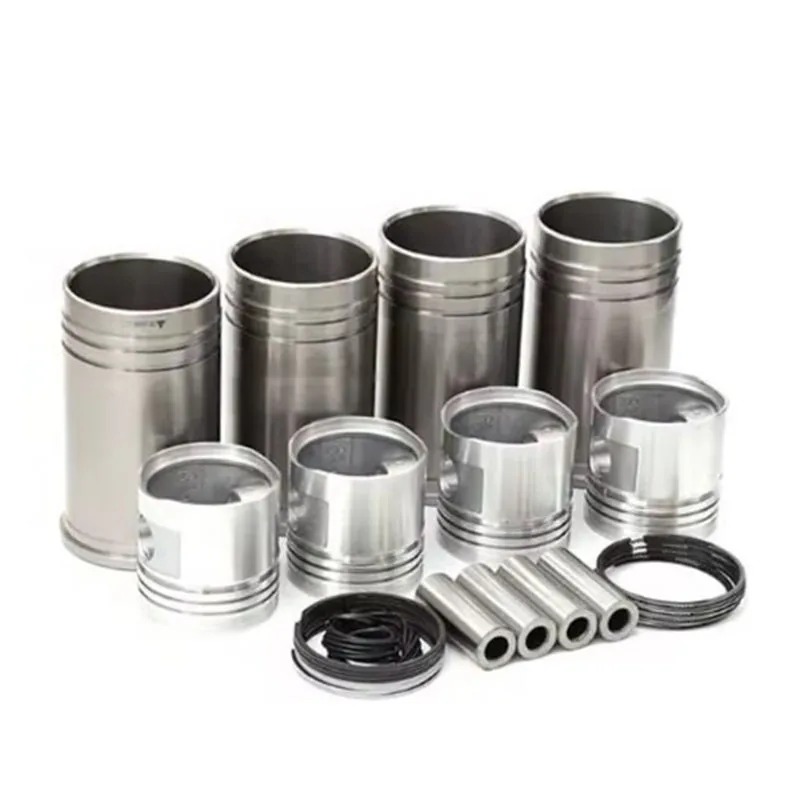

• Weichai R4105/R6105 Kit — Universal cylinder liner kit set for Weichai R4105, R6105, R6113, K4100, K4105 diesel engines. Factory direct pricing

When to Replace Cylinder Liners:
• Blue smoke from the exhaust and oil consumption above 1 quart per 8 operating hours → Worn liners allow oil past the rings. Measure liner bore for out-of-round and taper
• Low compression on one or more cylinders (below 300 psi on diesel, or more than 10% variation between cylinders) → Worn liner bore or ring seal. Perform a leak-down test to confirm
• Visible scoring, vertical scratches, or glazing on the liner bore surface when the cylinder head is removed → Liner surface is damaged. Replace liner, piston, and rings together
• Coolant in the engine oil (milky appearance on dipstick) with no external leak → Wet liner O-ring seal has failed. Replace all liner O-rings and liners
• Engine being rebuilt after any lower-end failure → Replace ALL liners. A new piston and ring set on a worn liner will never seat properly

OEM Cross-Reference:

Don’t see your engine? Send your engine model and bore size →

Compatible: Xinchai 490/495/498, Toyota 2Y, Mitsubishi S4S/S6S, Isuzu C240, Weichai R4105/R6105. Browse our engine parts catalog.
