Forklift Gearbox Assembly: Complete Transmissions — HELI CPCD50-100, Hangcha CPD30J, YQXD30H-D1, JDS30X-3, 6 Product Lines

The gearbox assembly — also called transmission assembly or gearbox — is the complete transmission unit that converts engine (or electric motor) RPM and torque into the speed and torque multiplication required at the drive wheels. On an IC forklift, the gearbox provides typically 2-4 forward gear ratios plus a reverse gear, with each ratio selected by the operator through a shift lever connected to shift forks inside the transmission. On an electric forklift, the gearbox provides a single fixed gear reduction (no shifting required — the electric motor’s variable speed control handles speed changes) with the gear train optimized for silent operation and regenerative braking compatibility. The gearbox is the second most expensive powertrain component after the engine (or battery+motor on electric forklifts), and a gearbox failure — whether from oil starvation (leaking seal drains the gear oil), gear tooth fatigue (pitting or spalling from millions of load cycles), synchronizer wear (grinding during shifts), or bearing failure (howling noise that changes with road speed) — immobilizes the forklift completely because no power can reach the drive wheels. Rebuilding a transmission requires precision measurement of every bearing preload, gear backlash, and synchronizer clearance — on a forklift transmission that has been in service for 10,000+ hours, the accumulated wear on every internal component often makes replacing the complete assembly more cost-effective than a rebuild when parts cost and labor are combined.

Kingstream supplies 6 gearbox assembly product lines covering HELI IC forklifts (CPCD50-100, H2000 2-3T), Hangcha electric forklifts (CPD30J), and universal IC forklift transmissions (YQXD30H-D1 for HC/HL 3T with C240 engine, 14432-50001, and 24462-52100G).

IC Forklift Gearbox Assemblies:
• 15803-50001 (HELI/TCM CPCD50-100, FD80-100Z8) — Reducer assembly for HELI H2000 K Series CPCD80-100 (8-10T) and CPCD50-70-C10 (5-7T), plus TCM FD80-100Z8 (8-10T). Heavy-duty final drive reducer for large forklifts. FLS reference DE00-003A
• JDS30X-3 (HELI H2000 2-3T) — Mechanical transmission assembly for HELI H2000 series 2-3 ton forklifts. Zhongchai brand. Standard manual shift transmission with multiple forward speeds and reverse
• YQXD30H-D1 (HC/HL 3T, C240) — Gearbox assembly for HC (Hangcha) and HL (HELI) 3-ton forklifts with Isuzu C240 diesel engine. RWD configuration, 185kg complete transmission unit. Mechanical shift with forward and reverse gears
• 14432-50001 — Universal forklift gearbox assembly for mechanical and hydraulic transmission forklifts. Multi-brand compatibility for mixed fleet operators

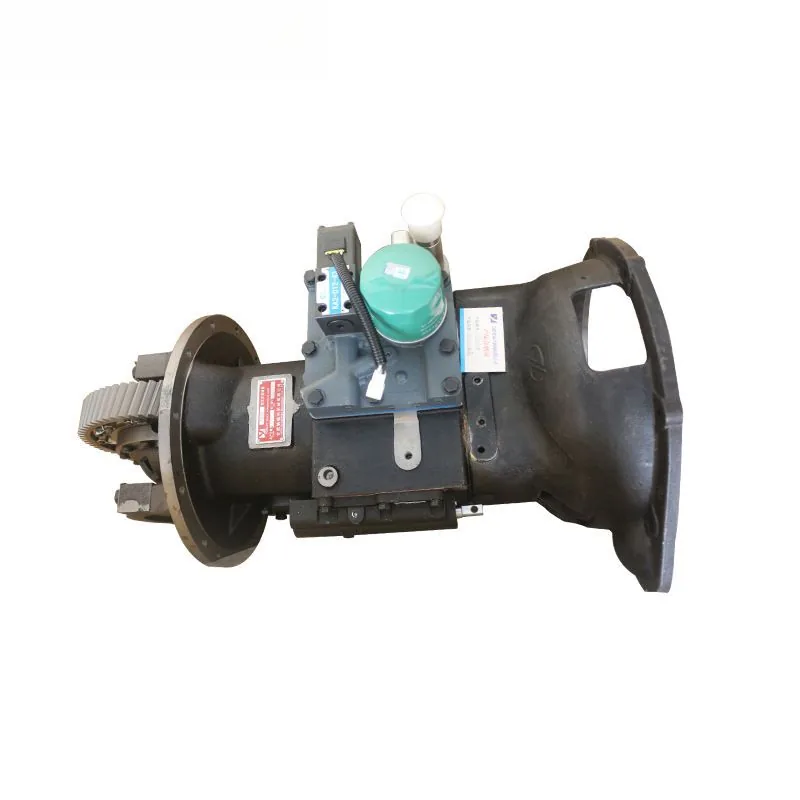

• 24462-52100G — Hydraulic transmission gearbox for forklifts. Designed for forklift platforms using hydraulic transmission systems rather than mechanical shift mechanisms

Electric Forklift Gearbox:
• HDCS30-G00 (Hangcha CPD30J, BSX0004396) — Electric forklift gearbox for Hangcha CPD30J 3-ton electric counterbalanced forklift. Fixed-ratio gear train optimized for silent operation with AC drive motor. Designed for regenerative braking torque reversal and sealed-for-life synthetic gear oil lubrication. HDCS30-G00 part number with cross-reference BSX0004396

When to Replace Gearbox Assemblies:
• Grinding noise during gear shifts that does not improve with clutch adjustment → The synchronizer rings are worn past minimum thickness. On a manual transmission, replace the complete gearbox assembly
• Transmission jumps out of gear under load or engine braking → Worn detent springs or shift fork pads. The gear dogs are not being held in full engagement. Replace gearbox
• Loud whining or howling noise from the transmission that changes pitch with road speed but not with engine RPM → Worn or spalled gear teeth or failed transmission bearings. Replace gearbox
• Metal particles in the transmission oil — particularly steel-colored magnetic particles → Gear or bearing material is being shed. Drain and inspect the oil. If particles are present, replace the gearbox
• Transmission oil leak from the input shaft seal, output shaft seal, or case joint → Seals have failed. While seals can be replaced individually, oil starvation damage to the gears and bearings has likely already occurred. Inspect internal components; if damage is present, replace the complete assembly

OEM Cross-Reference:

Don’t see your gearbox? Send your forklift model, engine type, and transmission part number →

Compatible: HELI CPCD50-100 / H2000, Hangcha CPD30J, TCM FD80-100Z8. Browse our transmission parts catalog.
