Forklift Mast Roller

Forklift Mast Roller: Main & Side Roller Bearings for Mast Carriage Guidance Systems

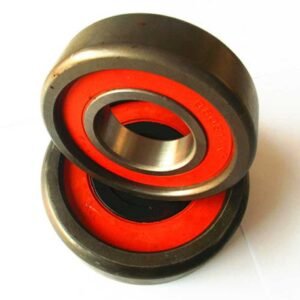

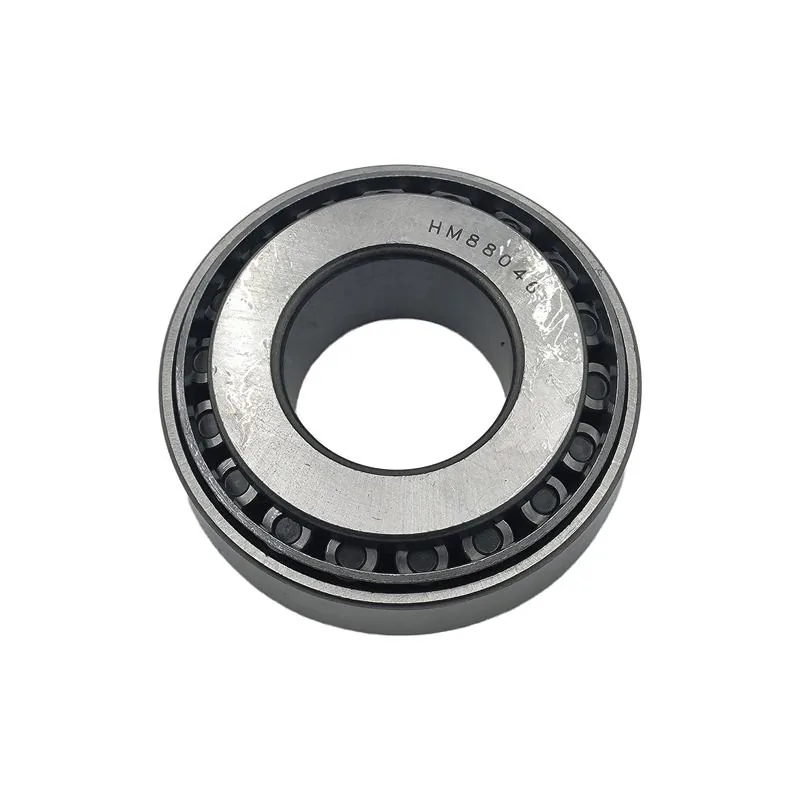

A forklift mast roller is a sealed or shielded bearing assembly that guides the fork carriage along the mast channels during lifting and lowering operations. Mast rollers serve two distinct functions: main rollers carry the full vertical load of the carriage and payload, rolling within the inner mast channel; side rollers (also called side thrust rollers) absorb lateral forces and prevent the carriage from shifting sideways within the mast. A worn, seized, or noisy mast roller creates uneven carriage travel, accelerated mast channel wear, and in severe cases can cause the carriage to bind or jerk during lift operation — creating a safety hazard when handling elevated loads. Mast rollers are typically grease-packed sealed bearings with specific outer diameters, bore sizes, and widths matched to the mast channel profile of each forklift model.

Kingstream supplies mast rollers and bearings for Toyota, Komatsu, HELI, TCM, Linde, and other major brands. Each roller is verified for outer diameter tolerance and bearing smoothness before shipment, with OEM part number cross-referencing available.

When to Replace / Common Symptoms:
• Carriage jerks or shudders during lifting and lowering → Worn flat-spotted main roller bearing — replace
• Excessive side-to-side carriage movement within mast → Worn side rollers — replace thrust rollers
• Grinding or squealing noise from mast during operation → Dry or seized roller bearing — replace immediately
• Visible rust, pitting, or spalling on roller outer diameter → Bearing race damage — replace before mast channel damage occurs
• Uneven wear on one mast channel vs the other → Single roller failure causing asymmetric loading

OEM Cross-Reference / Available Models:

Don’t see your bearing? Send us your roller dimensions →

Compatible Forklift Brands:
Toyota 7FD/8FD, TCM FD, HELI H2000/G, Linde 316-396 Series, Komatsu FD/FG, CAT DP/GP, Hangcha A/R

Browse our complete Mast Parts catalog for mast chains, assemblies, and carriage components.
