Forklift starter motor

Forklift Starter Motor： QDJ Series 12V 24V Diesel Engine Cranking Motors for HELI Forklifts

A forklift starter motor converts electrical current from the battery into the mechanical rotation that cranks the diesel engine until combustion becomes self-sustaining. It must overcome the compression resistance of a diesel engine — typically 300-500 psi — while delivering sufficient cranking speed for compression ignition. When the starter motor fails, the engine will not crank, leaving the forklift stranded wherever it stopped. Kingstream stocks replacement forklift starter motors including the QDJ1321, QDJ1409E, and QDJ251 series for Xinchai 490 and Yuchai diesel engines used in HELI 2-3.5 ton forklifts. Every starter is bench-tested for cranking speed, current draw, and solenoid engagement.

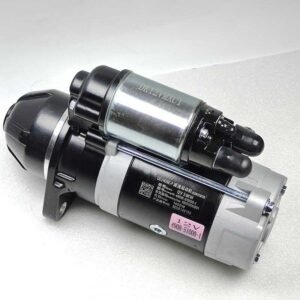

A forklift starter motor consists of a DC series-wound motor that produces maximum torque at zero RPM, a solenoid mounted on the motor housing that performs two functions — it pushes the starter drive pinion into mesh with the flywheel ring gear AND closes the high-current contacts that deliver battery power to the motor — and a planetary or offset gear reduction between the motor armature and the pinion that multiplies motor torque. The QDJ1321 is the standard starter for Xinchai 490 engines on HELI CPCD 2-3.5 ton forklifts. The QDJ1409E is a higher-output unit for larger displacement engines, and the QDJ251 covers Yuchai-powered machines. A forklift starting motor that produces a single loud click but does not crank has a failed solenoid — the solenoid plunger moves and engages the pinion, but the main contacts inside the solenoid cap are burned or pitted and do not pass current to the motor. A starter that spins but does not crank the engine has a failed overrunning clutch in the drive pinion — the clutch is designed to freewheel in one direction to prevent the engine from driving the starter once it starts, but a failed clutch freewheels in both directions.

When replacing a forklift starter, always verify battery voltage and cable connections before condemning the starter — a weak battery or corroded terminals cause the same symptoms as a failed starter. Check battery voltage at the starter main terminal while cranking — voltage below 9.6V for a 12V system indicates a battery or cable problem, not a starter fault. Verify the replacement starter has the correct pinion tooth count to match the flywheel ring gear — an incorrect tooth count will damage the ring gear on the first engagement. Torque the mounting bolts to specification and ensure the starter is square to the flywheel housing to prevent pinion-to-ring-gear misalignment.

Popular Starter Motor Cross-Reference

Quality Control at Kingstream

Every forklift starter motor we ship is bench-tested: cranking speed is measured under load, current draw is verified within specification, and the solenoid engagement and pinion return are cycled multiple times. The pinion overrunning clutch is checked for freewheel in the correct direction. You receive a starter that cranks the engine at the specified speed and disengages cleanly.

Engine won’t crank? Send us your engine model. Browse our engine parts catalog.
