Forklift Multi-Way Valve： Hydraulic Directional Control for Mast Functions

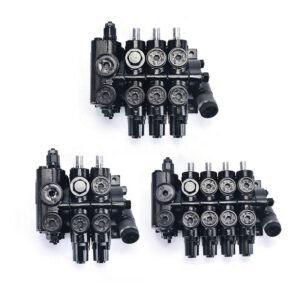

A forklift multi-way valve — also called a directional control valve or hydraulic control valve — directs pressurized hydraulic oil to the lift, tilt, and side-shift cylinders. When the valve spools wear or seals leak, the mast drifts down under load, the tilt function becomes sluggish, or the side-shift creeps out of position. Kingstream stocks replacement forklift multi-way valves in 2-spool, 3-spool, and 4-spool configurations with mechanical and pilot-operated control for Toyota, Komatsu, HELI, Hangcha, TCM, Nissan, Mitsubishi, and Linde forklifts.

What a Multi-Way Valve Does

The forklift multi-way valve is the hydraulic system command center. Each spool inside the valve body controls one function: the first spool typically handles lift — raising and lowering the mast; the second spool controls tilt — angling the mast forward and backward; and the third spool manages an auxiliary function such as a side-shifter or fork positioner. When the operator moves a control lever, it shifts the corresponding spool, opening a flow path from the hydraulic pump to the cylinder. A properly functioning forklift hydraulic control valve provides smooth, proportional control — partial lever movement produces partial cylinder speed, giving the operator precise load handling. When spools wear, the clearance between the spool and valve body increases, allowing oil to bypass internally — this causes the cylinder to drift or the function to feel weak even when the lever is fully engaged.

Signs Your Multi-Way Valve Needs Repair or Replacement

A failing forklift multi-way valve shows these symptoms: the mast slowly sinks with a raised load, indicating internal leakage past the lift spool — this is a safety hazard because the load can descend without operator input; the tilt function chatters or moves unevenly, suggesting a worn spool that is oscillating under pressure fluctuations; the control lever feels loose or sloppy with excessive free play before the spool engages, indicating worn linkage or a broken centering spring; and hydraulic oil temperature rises above normal because internal leakage through worn spools converts hydraulic energy to heat. A forklift directional control valve with excessive internal leakage wastes pump flow and can cause the entire hydraulic system to run hot, accelerating oil degradation and seal wear throughout the system.

How to Order the Correct Multi-Way Valve

When replacing a forklift multi-way valve, confirm the number of spools — 2-spool for lift and tilt only, 3-spool for lift, tilt, and one auxiliary function, 4-spool for lift, tilt, and two auxiliary functions. Check the rated flow in liters per minute — the valve must handle the output of your hydraulic pump without excessive pressure drop. Verify the control type: mechanical cable-operated valves use cables from the operator levers to the valve spools, while pilot-operated hydraulic valves use low-pressure pilot oil from joystick controls. Also confirm the mounting pattern and port thread types — SAE, BSP, or metric ports must match your existing hydraulic lines. The fastest way to ensure compatibility is to send us your original OEM part number from the valve body.

Popular Multi-Way Valve Cross-Reference

Quality Control at Kingstream

Every forklift multi-way valve we ship is pressure-tested: each spool is cycled through its full travel and checked for smooth operation without binding or sticking; internal leakage is measured by pressurizing each work port and monitoring the tank return port for bypass flow — any leakage exceeding OEM tolerance is rejected; the relief valve setting is verified to open at the specified pressure, protecting the hydraulic system from overpressure damage; and all port threads are checked with go/no-go gauges. You receive a forklift hydraulic control valve that provides precise load control from the first installation — not a valve with internal leakage that causes load drift and wastes hydraulic power.

Mast drifting under load? Send us your valve part number or forklift model for a fast quote. For other hydraulic components, browse our complete forklift hydraulic parts catalog.
