Forklift Steering axle assy

Forklift Steering Axle Assembly： Complete Rear Axle Units for HELI, Hangcha & TCM

A forklift steering axle assembly is the complete rear axle unit that carries the rear wheels and provides steering. When the axle beam cracks, the kingpin bores wear oval, or the steering cylinder mounts break, the forklift loses steering control — a critical safety failure. Kingstream stocks replacement forklift steering axle assemblies for Toyota, Komatsu, HELI, Hangcha, TCM, Nissan, Mitsubishi, and Linde forklifts from 2 to 10 tons capacity.

What Makes Up a Steering Axle Assembly

The forklift steering axle assembly is a welded steel structure comprising the axle beam — a heavy I-beam or box-section forging that supports the full rear weight of the forklift; two steering knuckles mounted at each end of the axle via kingpins that allow the wheels to pivot for steering; the steering cylinder mounted to the axle beam that pushes and pulls the steering linkage; and the tie rods connecting the cylinder to both knuckles for synchronized left-right steering. The entire assembly pivots on a center trunnion mount attached to the forklift chassis, allowing the axle to articulate over uneven surfaces. A forklift rear axle bears less weight than the front drive axle but experiences higher cyclic loading from steering inputs — every turn of the steering wheel cycles the kingpins, tie rod ends, and cylinder seals.

Signs Your Steering Axle Needs Replacement

A failing forklift steering axle assembly produces these symptoms: excessive free play in the steering wheel before the wheels respond — this indicates worn kingpin bushings or tie rod ends that have exceeded their service limit; the forklift wanders or requires constant steering correction to maintain a straight path, caused by worn kingpins allowing the steering knuckles to shift under load; uneven tire wear on the rear wheels — scalloping or feathering of the tread that indicates the wheels are not tracking parallel due to bent or worn axle components; and in the most serious cases, visible cracking in the axle beam at the kingpin bores or cylinder mounting brackets — any crack in a forklift steering axle is cause for immediate replacement.

How to Order the Correct Steering Axle

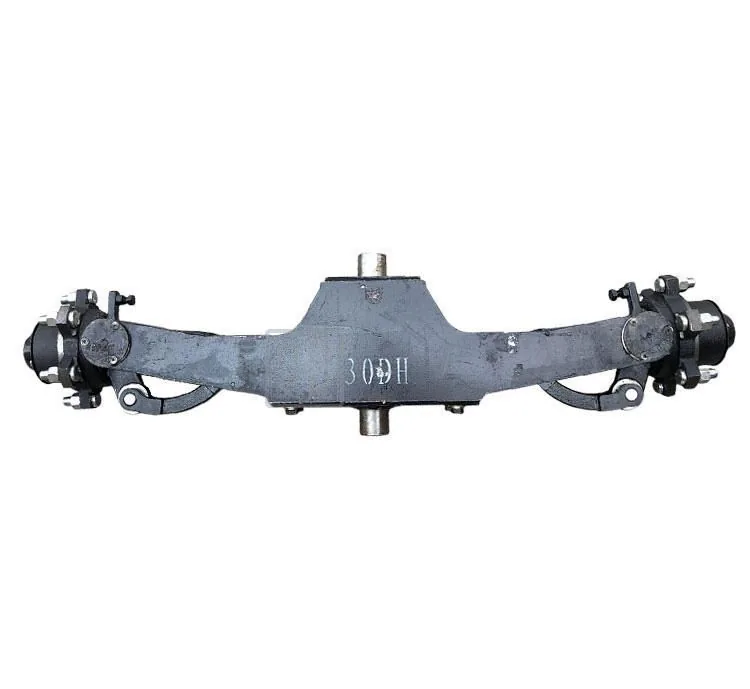

When replacing a forklift steering axle assembly, verify the forklift capacity — the axle is rated for a specific load range and an under-rated axle will fail prematurely. Confirm the mounting configuration: center-trunnion mount is standard on most counterbalance forklifts, but the trunnion diameter and width must match. Check the kingpin spacing and the steering cylinder mounting position. Also verify the wheel hub bolt pattern and the brake mounting provisions — some forklift rear axle assemblies include the brake backing plates and wheel cylinders, while others require transferring these components from the old axle. Sending us your forklift model and capacity, or the OEM part number like A21B4-30001 (HELI) or 30DH-211000, ensures correct fitment.

Popular Steering Axle Assembly Cross-Reference

Do not see your part? Send us your OEM number for cross-reference.

Quality Control at Kingstream

Every forklift steering axle assembly we ship is inspected: the axle beam is checked for weld quality and dimensional accuracy; the kingpin bores are measured for correct diameter and alignment — misaligned kingpin bores cause the steering knuckles to bind and accelerate bushing wear; the steering knuckles are verified for correct fit and smooth rotation on the kingpins; and the cylinder mounting brackets are checked for correct position and bolt hole alignment. You receive a forklift rear steering axle that bolts on and steers correctly — not an axle with ovaled kingpin bores from poor machining that develops free play within the first hundred hours of operation.

Steering axle worn or damaged? Send us your forklift model or part number for a fast quote. For other steering components, browse our complete steering axle parts catalog.
