Forklift Other Transmission Parts

Forklift Transmission Parts: Shift Cables, Control Valves, Bevel Gears & Pins — 7 Product Lines, HELI Hino SDLG CPCD30

Transmission components that do not fall into a single subcategory — shift cables, hydraulic control valves, output shaft bevel gears, and transmission pins — each serving a distinct function in the forklift drivetrain. The shift cable transmits the mechanical motion from the driver’s shift lever in the cab to the selector mechanism on the transmission, often spanning across the engine bay or under the floor. A stretched, frayed, or binding shift cable creates the most common misdiagnosis in forklift transmission troubleshooting: the driver reports difficulty shifting, the mechanic assumes the problem is inside the transmission (synchronizers, forks), and the transmission is removed and disassembled — only to find the transmission is fine and the real problem was a $50 shift cable that could have been diagnosed in 5 minutes by disconnecting the cable at the transmission end and shifting the transmission manually. The transmission control valve manages the flow of hydraulic fluid (ATF) to the clutch packs and bands in an automatic or powershift transmission — a stuck spool valve in the control valve body causes a specific gear to not engage or to engage harshly, and the control valve is always diagnosed before the transmission itself because it is accessible without transmission removal. The spiral bevel gear transfers power from the transmission output shaft to the differential at a 90-degree angle in the drive axle — the bevel gear teeth are the highest-stress gear contact in the entire drivetrain because they experience both sliding friction (from the spiral tooth profile) and high contact pressure (from the small tooth contact area relative to the transmitted torque). A transmission pin — typically a hardened steel dowel pin — locates and secures internal transmission components such as the selector shaft, shift fork pivot, or gear cluster shaft. A sheared or missing pin allows the component it secures to drift out of position, causing immediate transmission failure.

Shift Cables:
• 8-98146878-1 (8981468781) — Auto parts gear shift cable for Hino 4BD1 engine applications. This heavy-duty push-pull cable transmits shift lever movement to the transmission selector mechanism. A stretched cable creates free play that prevents the transmission from fully engaging the selected gear — the symptom is the gear popping out under load even though the shift lever feels like it’s fully in position

Transmission Control Valves:
• 15583-80211 — Forklift transmission control valve. Manages hydraulic pressure to clutch packs in automatic transmission applications

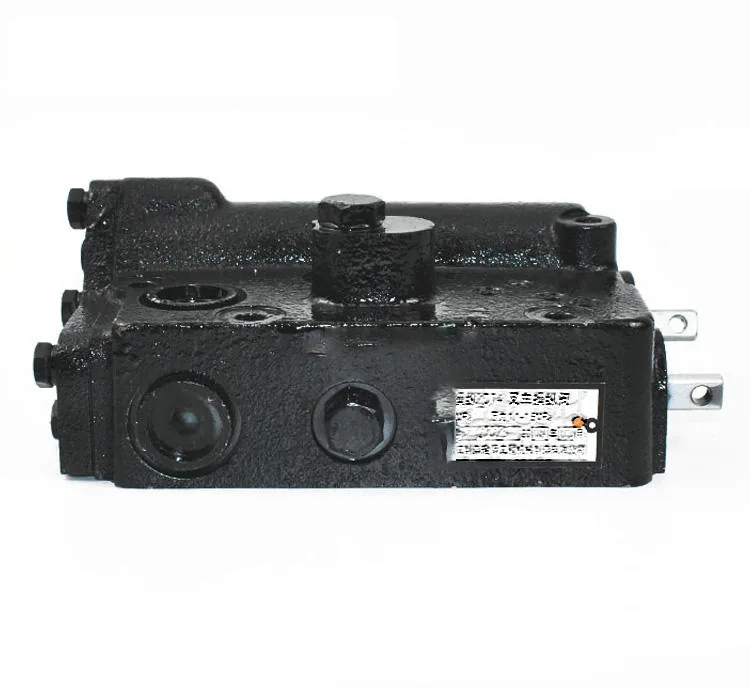

• CCT6 / YDS45.903 — Gearbox control valve for forklift transmissions. CCT6 designation for specific transmission valve body application. YDS45.903 is an alternative part number

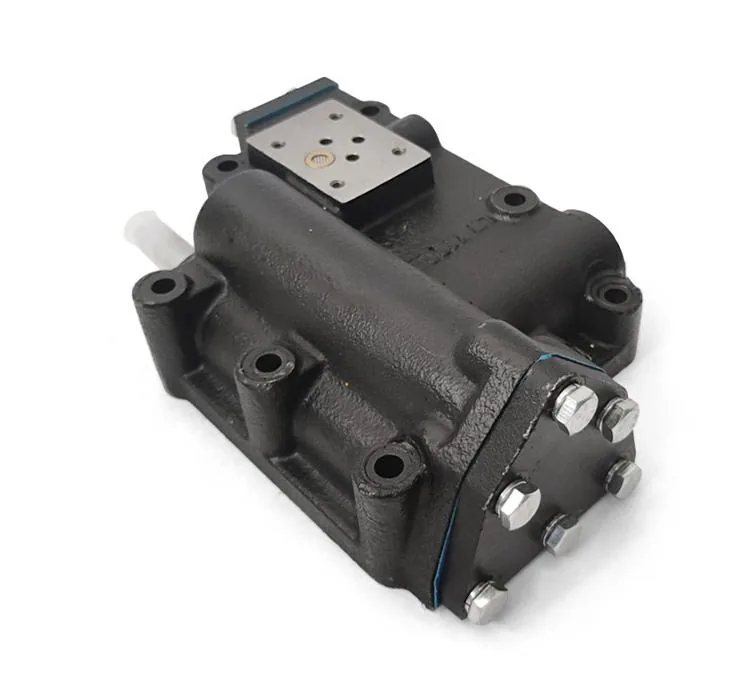

• YQX100-906B — Transmission control valve for 5-10 ton forklifts. Heavy-duty valve body designed for the higher hydraulic flow rates of large-displacement transmissions in heavy forklifts

Bevel Gears & Pins:

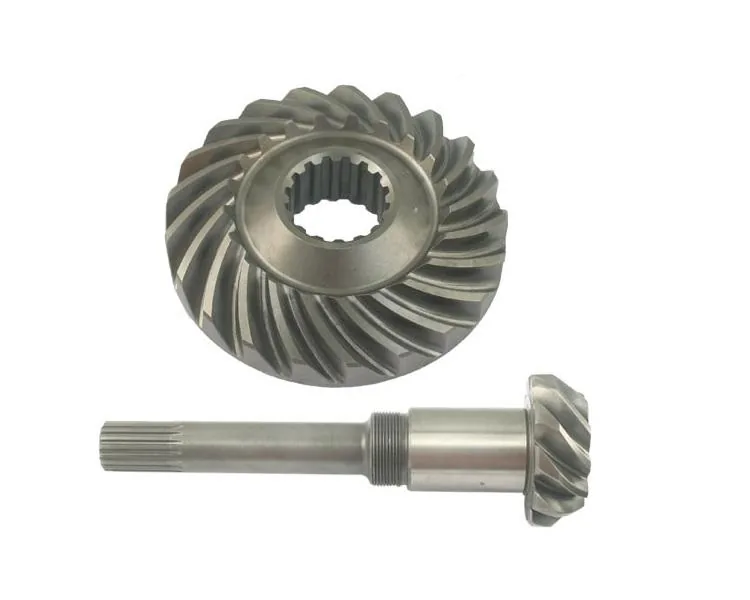

• 14463-42001 — Output shaft spiral bevel gear for HELI CPCD30 3-ton forklift. Transfers power from transmission output shaft to differential at 90 degrees. Spiral tooth profile provides smoother, quieter operation than straight-cut bevel gears
• 3030900161 — SDLG LG956L transmission pin. Hardened steel locating pin for SDLG wheel loader transmissions — also used in some heavy forklift applications using the same transmission platform

When to Diagnose vs Replace Transmission Components:
• Shift lever feels loose, excessive free play, or gear does not fully engage despite the lever being in position → Disconnect the shift cable at the transmission end and shift the transmission manually at the transmission selector shaft. If manual shifting is smooth and positive, the problem is the shift cable, not the transmission. Replace the cable
• Automatic transmission harsh engagement or failure to engage a specific gear → The control valve body has a sticking spool valve for that gear’s hydraulic circuit. Remove and inspect the valve body before removing the transmission. Clean or replace the control valve
• Whining noise from the drive axle that changes pitch with speed → The spiral bevel gear teeth may be worn or pitted. Inspect gear tooth pattern with Prussian blue before removing the gear — incorrect tooth contact pattern indicates bearing or shim wear, not gear wear
• Metal pin or fragments found in the transmission oil → A locating pin or retaining pin has sheared. The transmission must be disassembled to identify which pin failed and to inspect the component it was securing for damage. Operating with a sheared pin will cause the unsecured component to drift and destroy the transmission

OEM Cross-Reference:

Don’t see your part? Send your part number and forklift model →

Compatible: HELI CPCD30, Hino 4BD1, SDLG LG956L, 5-10T forklifts. Browse our transmission parts catalog.
