Forklift Flywheel

Forklift Flywheel: Assemblies, Ring Gears & Housings for Xinchai 490 ChaoChai Hino QuanChai

The flywheel is the heavy cast iron or steel disc bolted to the rear of the crankshaft that serves three critical functions: storing rotational energy to smooth out the power pulses between cylinder firings, providing the ring gear teeth that the starter motor pinion engages to crank the engine, and providing the friction surface that the clutch disc presses against to transmit engine power to the transmission. On forklifts, the flywheel also carries the torque converter drive plate on powershift transmissions. A flywheel with worn or chipped ring gear teeth causes grinding during starting and can prevent the starter from engaging. A flywheel with a cracked or heat-checked clutch friction surface causes clutch chatter, slipping, and eventual clutch failure. A worn ring gear can often be replaced individually without replacing the entire flywheel — the ring gear is heated to expand it, slipped onto the flywheel, and shrinks into place as it cools.

Kingstream supplies replacement flywheel assemblies, flywheel ring gears, and flywheel housings for Xinchai 490/495/498, ChaoChai 6102, QuanChai, and Hino E13C/W06E engines. Every flywheel is inspected for ring gear tooth condition, friction surface flatness, and runout before shipment.

Types:
• Xinchai 490B-13001 Flywheel Assembly — Complete flywheel for Xinchai 490/495/498 diesel engines. Fits HELI and Hangcha 2-3.5T forklifts. The most common flywheel replacement in the Chinese forklift market
• Xinchai 490B Ring Gear (490B-120C) — Individual flywheel ring gear for Xinchai 490B engines. Replace the ring gear without replacing the entire flywheel. Expansion-fit installation (heat ring gear, slip onto flywheel)
• ChaoChai 6102 Ring Gear — Ring gear for ChaoChai 6102 diesel engines. Universal ring gear application for engine rebuilds
• QuanChai QC4J1-115C32 Ring Gear — Ring gear for QuanChai QC4J1 series diesel forklift engines. Part number QC4J1-115C32-FLCQ

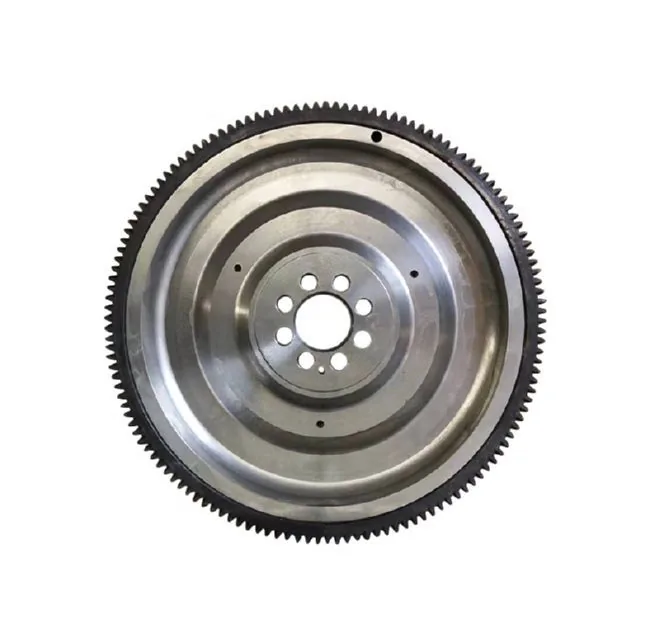

• Hino E13C Flywheel (13450-E0G70) — Flywheel assembly for Hino 700 truck and forklift E13C engines. Cross-ref S1345-03711

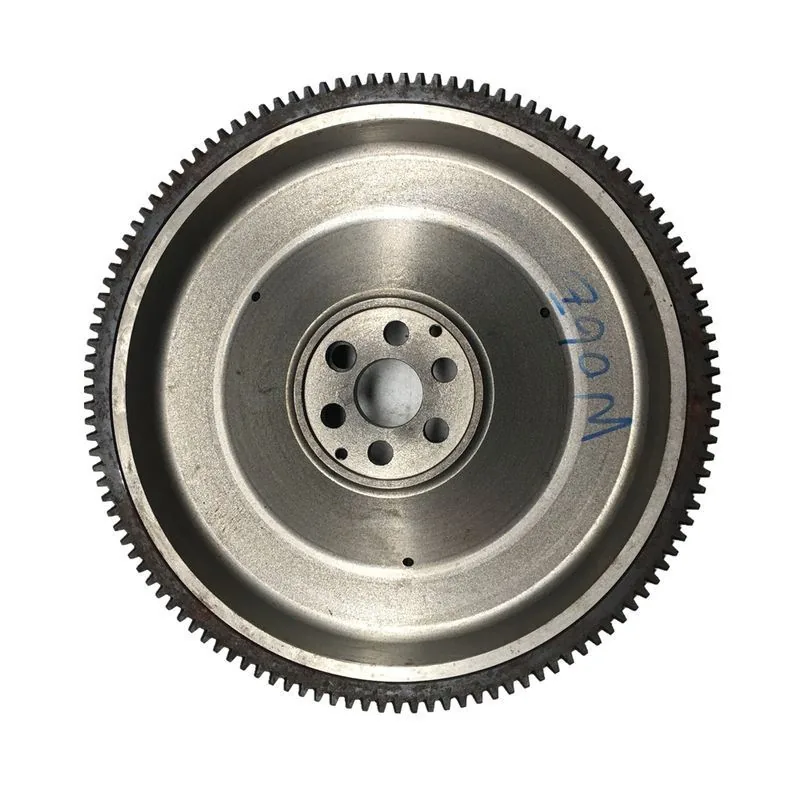

• Hino W06E Flywheel — Flywheel assembly for Hino W06E Japanese truck/forklift engines

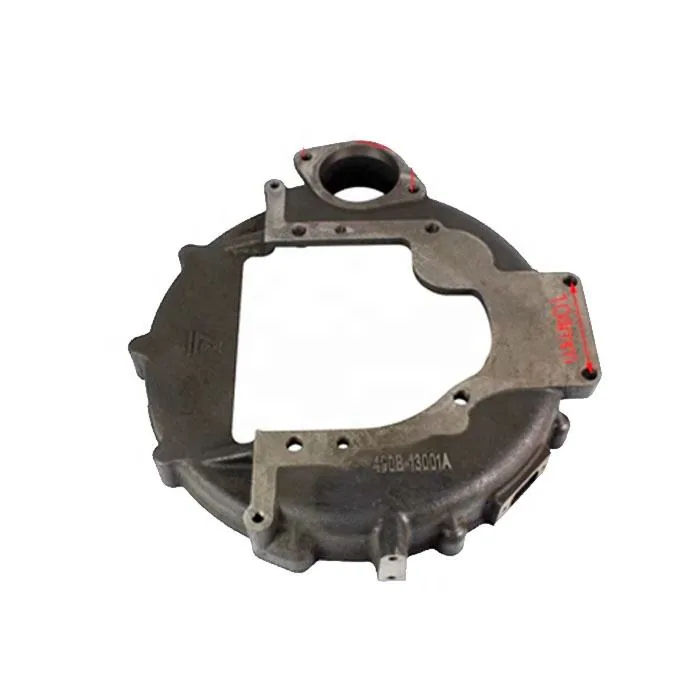

• Xinchai Flywheel Housing (A490BPG-C490BPG) — Flywheel housing for HELI CPCD30 with Xinchai A490BPG/C490BPG engines. Encloses flywheel and clutch/torque converter assembly

When to Replace Flywheels & Ring Gears:
• Grinding or scraping noise when engaging the starter, especially intermittent engagement → Ring gear teeth are worn or chipped. Replace ring gear or flywheel assembly
• Starter spins freely without cranking the engine (no grinding, just spinning) → Ring gear teeth are completely stripped in one spot where the engine always stops. Rotate flywheel manually and inspect all 360° of ring gear teeth
• Clutch chatter or vibration during engagement, especially when starting from a stop → Flywheel friction surface is heat-checked, warped, or has hard spots from overheating. Replace flywheel
• Visible cracks radiating from the flywheel center or bolt holes → Fatigue cracking from torsional vibration. Replace flywheel immediately — catastrophic flywheel failure can penetrate the bellhousing
• Flywheel housing is cracked or has stripped bolt holes → Housing is the structural connection between engine and transmission. Replace housing before misalignment damages the transmission input shaft

OEM Cross-Reference:

Don’t see your engine? Send your engine model and flywheel type →

Compatible: Xinchai 490/495/498, ChaoChai 6102, QuanChai, Hino E13C/W06E. Browse our engine parts catalog.
