Forklift Engine Assembly

Forklift Engine Assembly: Complete Diesel & LPG Engine Units — Nissan K21 Yanmar 3TNE84 4TNE98 Xinchai C490B Isuzu 4HK1

A forklift engine assembly is the complete power unit — engine block, cylinder head, fuel injection system, starter motor, alternator, flywheel, and all accessories — ready to bolt into the chassis and connect to the fuel, electrical, and cooling systems. When the original engine has suffered catastrophic failure (seized engine, thrown rod, cracked block, or hydro-locked), installing a complete engine assembly is often more cost-effective than a full rebuild: the engine ships pre-assembled and factory-tested, eliminating machine shop costs, parts matching variables, and assembly error risks. Engine assemblies range from 186-290 kg and span LPG (Nissan K21), compact diesel (Yanmar 3TNE84 1.5L), mid-size diesel (Yanmar 4TNE98 3.3L, Xinchai C490B/4D27G31 2.7-3.0L), and heavy-duty diesel (Isuzu 4HK1 5.2L and Isuzu 6HK1 7.8L). New and used options available for different budgets.

Kingstream supplies complete engine assemblies for Nissan K21 LPG engines, Yanmar 3TNE84/4TNE98/4TNV98 diesel engines, Xinchai C490B/4D27G31 diesel engines, and Isuzu 4HK1/6HK1/4JB1/4HE1/4JJ1/4JG2/6BG1/6BD1 diesel engines. Engine assemblies cover HELI, Hangcha, Toyota, Nissan, and multi-brand forklift platforms.

Types by Brand:
• Nissan K21 (10001-36K1A) — 2.1L LPG engine for Nissan and Toyota 2-3 ton forklifts. Smooth power, lower emissions than diesel. Used with new condition available, Japan origin
• Yanmar 3TNE84-GB1 (1.5L) — Compact 3-cylinder diesel for 1-3 ton forklifts. 186 kg, gear-driven camshaft (no timing belt), 6-month warranty, Japan

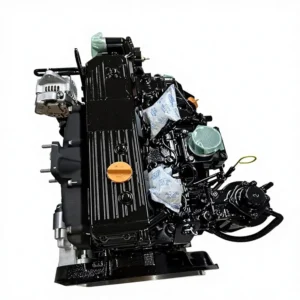

• Yanmar 4TNE98-BQFLC (3.3L) — 4-cylinder diesel for 3-5 ton forklifts and industrial equipment. 200 kg, 6-month warranty

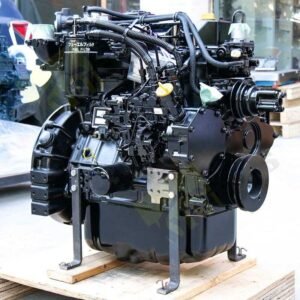

• Yanmar 4TNV98/4TNV98T (3.3L) — Original Yanmar diesel with turbocharged option (4TNV98T). Complete assembly for truck and machinery applications
• Xinchai C490B (2.7L) — Standard 4-cylinder water-cooled diesel for HELI/Hangcha/LongGong 2-3.5 ton forklifts. 40kW/2650RPM, 290 kg, 3-month warranty. Most common forklift engine in China
• Xinchai 4D27G31 (2.7L) — Valve-parts-spec engine assembly for 3-3.5 ton HELI forklifts. Compatible with CPCD30 platform

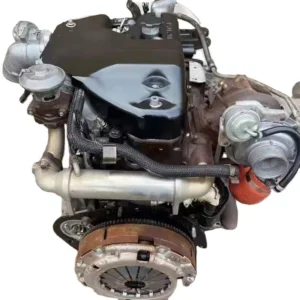

• Isuzu 4HK1 (5.2L) — 4-cylinder turbo diesel for medium-duty forklifts, trucks, excavators. Used condition, 100% tested

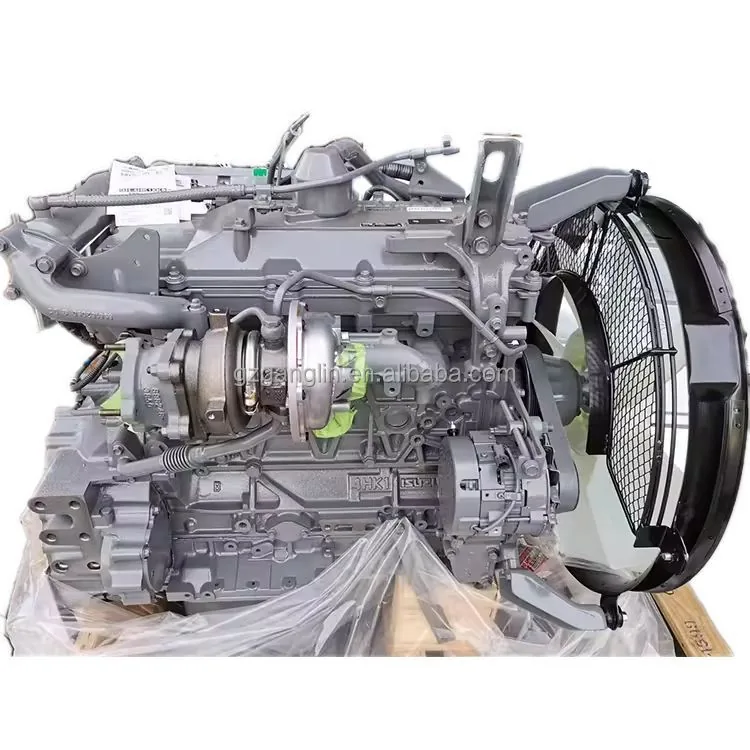

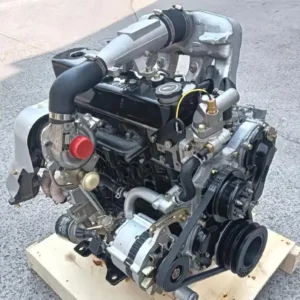

• Isuzu Multi-Model (4JB1/6HK1/4HE1/4JJ1/4JG2/6BG1/6BD1) — Used complete engine assemblies covering Isuzu’s 2.8L-7.8L range. Japan origin. Specify model when ordering

When to Replace a Complete Engine Assembly:
• Engine seized (will not rotate with a breaker bar on the crankshaft pulley) → Catastrophic failure. Complete assembly replaces all failed components at once
• Thrown connecting rod through the engine block → Block is destroyed. Replace with complete assembly
• Hydrolocked engine (water in cylinders, bent rods) → Multiple cylinders may have damage. Complete assembly eliminates hidden damage risks
• Engine rebuild cost exceeds 70% of a complete assembly → The assembly eliminates rebuild labor, machine shop costs, and assembly risk
• Engine burning excessive oil (more than 1 quart per 8 hours) with low compression on multiple cylinders → Ring and bore wear is widespread. Complete assembly vs. full rebuild evaluation needed

OEM Cross-Reference:

Don’t see your engine? Send your make, model, and fuel type →

Compatible Brands: Nissan, Toyota, Yanmar, Xinchai, HELI, Hangcha, LongGong, Isuzu. Browse our engine parts catalog.
