Forklift Battery Charger

Forklift Battery Charger: 48V 100A Linde, 24V HELI Lithium, LiFePO4 Fast CAN Bus & Multi-Voltage Smart Chargers

The battery charger is the life-support system for electric forklift fleets — without a properly functioning charger, the forklift sits idle for hours instead of minutes, and repeated improper charging destroys $5,000+ batteries in months instead of years. A lead-acid charger connected to a lithium battery will overcharge individual cells until the BMS shuts down, bricking the battery. A LiFePO4 charger without CAN bus communication can’t receive cell-level voltage data from the BMS, resulting in imbalanced cells that lose capacity with every charge cycle. The charger must match both the battery chemistry and the voltage/capacity specifications of the specific forklift model.

Kingstream supplies battery chargers for Linde, HELI, and multi-voltage LiFePO4 applications. Chargers range from compact 12V high-frequency units to industrial 48V/100A Linde OEM chargers and 2400W CAN bus fast chargers.

Types of Battery Chargers:

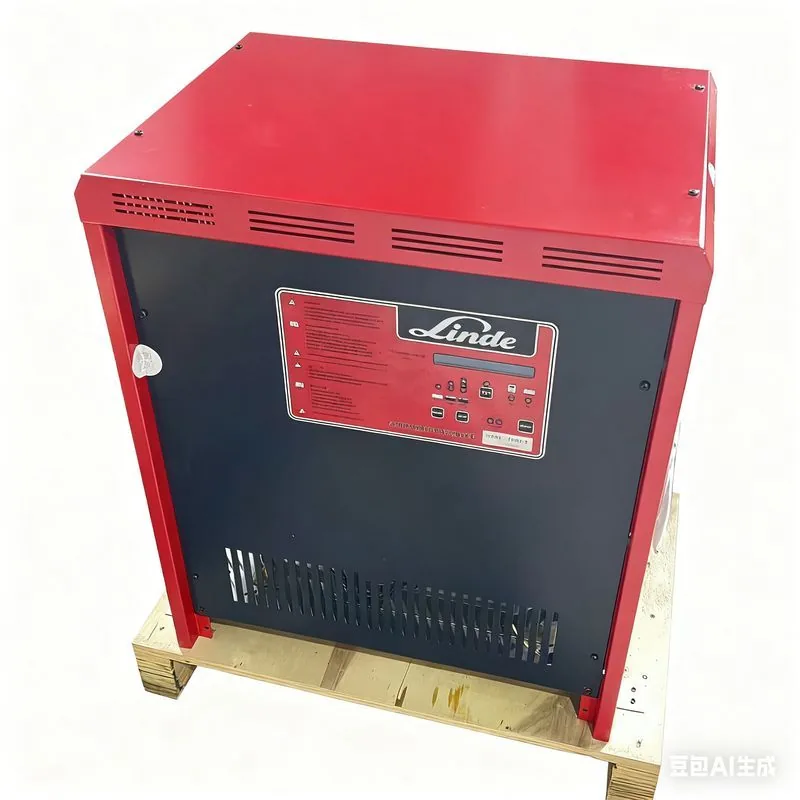

Linde OEM Charger (48V 100A) — Genuine Linde automatic charger for 711-840Ah lead-acid batteries. Factory-calibrated charge profile with automatic detection of battery state of charge, temperature-compensated charging, and equalization mode for battery maintenance. Not interchangeable with generic 48V chargers — the Linde BMS interface and charge termination logic are proprietary.

HELI Lithium Charger GBCH24V (24V 10A) — OEM lithium charger for HELI CBD15-LI pallet trucks. CC/CV charging profile specific to the CBD15-LI’s lithium battery pack, with CE certification and 1-year warranty. CX part number B.M.02.0608G1.

LiFePO4 Fast Charger (24V-80V, 100A-200A, 2400W) — High-power CAN bus charger with REMA plug, ≥93% efficiency, and SuperVOOC fast-charging. Handles the full range of LiFePO4 forklift battery voltages from 24V pallet trucks to 80V counterbalance forklifts. The CAN bus interface allows the charger to receive real-time cell voltage data from the BMS during charging.

Multi-Voltage Smart Charger EPC4805 (48V/12V/34V, 300W) — Three-output charger that handles LiFePO4, lithium, and lead-acid batteries automatically. Universal 85V-265V AC input. CE certified with 18-month warranty. Aluminium housing, 1.2 kg, portable for field service.

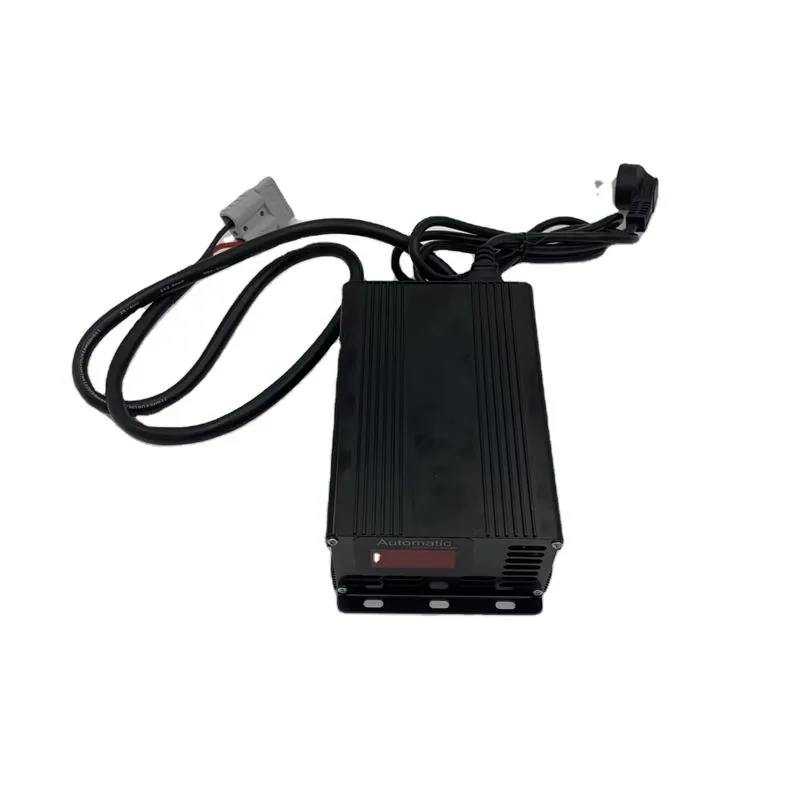

High-Frequency Charger (12V 15A / 48V 60A) — Compact high-frequency chargers for small electric forklifts and pallet trucks. The 48V/60A model serves mid-size electric forklifts with standard lead-acid batteries.

When to Replace Your Battery Charger:

• Charger doesn’t start — no output voltage, no indicator lights → Internal power supply or control board failure. Check input power first; if present, replace charger
• Charger runs but battery doesn’t reach full charge — charge terminates early → Charge profile corrupted or voltage sensing circuit failed. The charger thinks the battery is full when it’s not
• Battery overheats during charging despite normal ambient temperature → Charger is delivering excessive current or voltage. The charge regulation circuit has failed
• Charger error codes or fault indicators that reset but reoccur → Intermittent internal fault. Replace before it damages a battery
• Connector is melted, cable is frayed, or housing is cracked → Physical damage. Replace — charger repair is generally not cost-effective vs replacement

OEM Cross-Reference / Available Models:

⚠️ Charger chemistry must match battery chemistry. Lithium charger → lithium battery only. Lead-acid charger → lead-acid battery only. Cross-connection damages both.

Need a specific charger by forklift model? Send us your battery voltage, chemistry, and connector type →

Compatible Forklift Brands:
Linde, HELI, Toyota, Komatsu, BYD, Hyster, Hangcha electric forklifts.
