Forklift Reducer Gear: Drive Axle Reduction Assemblies & Differentials for HELI Hangcha TCM Isuzu

The reducer gear assembly — also called reduction gearbox or final drive — is the primary gear reduction unit in the forklift drive axle that converts the drive motor’s high RPM/low torque into low RPM/high torque at the wheels. Without the reducer, an electric forklift motor would need to produce 5-8x more torque to move a loaded forklift — physically impossible within the space and power constraints of a forklift drivetrain. The reducer contains precision-ground helical or planetary gears running in an oil bath, with gear ratios matched to the forklift’s weight class, tire diameter, and intended operating speed. A failed reducer produces growling noise, metal particles in the gear oil, and eventually complete loss of drive to one or both wheels when the gear teeth strip.

Kingstream supplies replacement reducer assemblies and differentials for 15+ forklift brands including HELI, Hangcha, TCM, and Isuzu NPR applications. Every reducer is manufactured to OEM specifications with proper gear ratios, bearing preload, and seal integrity.

Types:
• Reducer Assembly ABL73-00201 — Genuine HELI original OEM reducer, 180-day warranty. Complete bolt-in unit for HELI electric forklifts
• Reducer Assembly 15803-50001 — BRIGHT brand OEM reducer for HELI H2000 CPCD50-100 and TCM FD80-100Z8. FLS reference DE00-003A, 6-month warranty

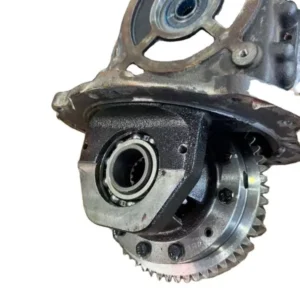

• Reducer Gearbox CPD15-AEY2 — Genuine Hangcha reducer for CPD15-AEY2 electric forklift. 98kg heavy-duty unit, 6-month warranty
• Main Gear with Differential NHBJ130-2402010 — Combined main gear and differential unit for forklift drive axle applications
• Differential Assembly NPR 7×41 — Isuzu NPR differential with 19 or 23 spline options, 7:41 or 7:43 gear ratios

When to Replace Reducer Gears:
• Growling, rumbling, or howling noise from the drive axle that increases with speed → Gear teeth are worn or the ring and pinion mesh has excessive backlash. The noise will only get worse as wear accelerates
• Metal flakes, glitter, or chunks visible in the gear oil during oil change → Gear teeth are spalling or breaking. Drain and flush the entire axle housing, inspect all gears, replace damaged components
• Magnetic drain plug covered in fine metal paste → Normal wear debris. If the paste is thick and chunky rather than a fine grey film, gear wear is accelerated — investigate
• Oil leaking from the reducer housing or axle shaft seals → Seal failure. Running the reducer with low oil destroys the gear surfaces within minutes. Replace seals and refill
• Complete loss of drive — motor runs but wheels don’t turn, with grinding noise → Gear teeth have stripped. The broken teeth fragments will damage all other gears. Replace the complete assembly

OEM Cross-Reference / Available Models:

Don’t see your model? Send us your reducer part number and gear ratio →

Compatible Forklift Brands:
HELI, Hangcha, TCM, Isuzu NPR, Toyota, Komatsu
