Forklift Fork Sleeve

Forklift Fork Sleeve: Extension Covers, Protectors & Slip-On Sleeves for Extended Reach and Load Protection

A forklift fork sleeve is a slip-on steel or polyurethane cover that slides over the existing fork tines to extend fork length, protect delicate loads from fork marks, or shield the parent fork surface from abrasive wear. Fork sleeves are available in three primary types: steel extension sleeves that increase effective fork length for handling oversized pallets and long loads; steel protector sleeves that shield the fork surface from impact and abrasion in heavy-duty applications; and polyurethane (PU) protective sleeves that provide a non-marring cushioned contact surface for handling painted, polished, or finished goods in appliance, furniture, and consumer product logistics. Each type serves a distinct operational need — extending reach requires derating the forklift capacity for the new load center, while protective sleeves add negligible weight but must be sized precisely to the fork cross-section to prevent forward creep during load release.

Kingstream supplies forklift fork sleeves for 15+ brands including Toyota, Komatsu, HELI, CAT, Mitsubishi, Hangcha, and Linde — covering 2-ton through 5-ton counterbalance forklifts and pallet trucks. Our range spans galvanized steel extension forks (48″-96″ lengths), manganese steel heavy-duty protectors, customizable PU sleeves in custom colors, and brand-specific sleeves for Mitsubishi and Caterpillar carriages. Every sleeve is manufactured to ITA Class II/III standard fork profiles with pre-drilled safety pin holes or heel-retention mechanisms to prevent forward sliding during operation.

Types & Selection Guide:
• Steel Extension Sleeves — Slide over forks to extend reach for long loads (pipes, lumber, wide pallets). Must derate forklift capacity for extended load center.

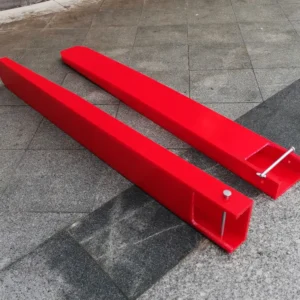

• Steel Protector Sleeves — Manganese steel or galvanized covers that shield parent forks from abrasive wear in mining, construction, and scrap handling.
• PU Protective Sleeves — Polyurethane elastic covers for non-marring load contact. Custom colors available for load-type identification.
• Brand-Specific Sleeves — Mitsubishi FD/FG, Caterpillar DP/GP, and HELI H2000 compatible fork profiles.

When to Replace / Common Symptoms:
• Fork tips are too short to safely support the load → Install steel extension sleeves (verify derated capacity)
• Load surfaces show fork marks, scratches, or dents → Install PU or steel protector sleeves
• Sleeve slides forward during load release → Worn retaining pin holes or incorrect fork cross-section fitment
• Visible crack at sleeve heel or weld seam → Fatigue cracking — replace immediately
• Rust or corrosion on sleeve surface → Galvanized or PU upgrade recommended for outdoor/marine environments

OEM Cross-Reference / Available Models:

Don’t see your model? Send us your fork dimensions →

Compatible Forklift Brands:
Toyota 7FD/8FD, Komatsu FD/FG, HELI H2000/G/CPCD, CAT DP/GP, Mitsubishi FD, Hangcha A/R, Yale ERC/GC, Linde H Series

Browse our complete Mast Parts catalog for forks, fork pins, carriages, and mast components.
