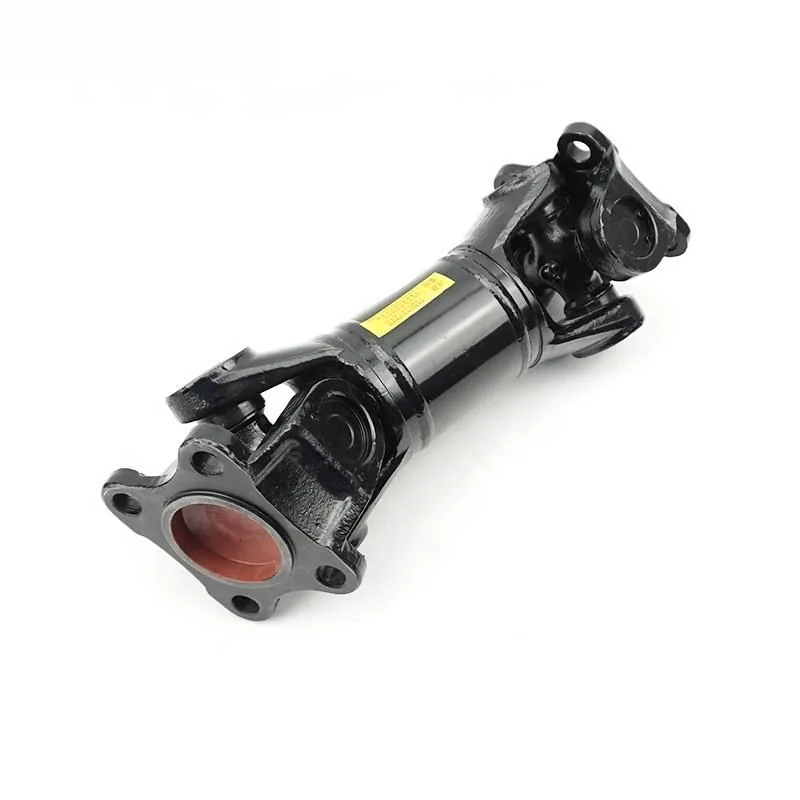

Forklift Transmission shaft

Forklift Transmission Shaft： Propeller Shafts, Drive Shafts & U-Joint Assemblies

A forklift transmission shaft transfers engine torque from the transmission output to the drive axle input — it is the rotating mechanical link that delivers power through U-joints that accommodate the angle change between the transmission and axle. When a transmission shaft U-joint wears, the driveline vibrates at speed and the splines hammer against each other, accelerating wear on both the shaft and the mating components. Kingstream stocks replacement forklift transmission shafts including propeller shafts, drive shaft assemblies, and U-joint cross kits for HELI, Toyota, TCM, Hangcha, and Komatsu forklifts from 3 to 10 ton capacity.

Transmission shafts fail in three common modes: U-joint bearing cap needle rollers wear flat from lack of grease, creating radial clearance that causes vibration at specific road speeds; the slip yoke splines wear from constant in-and-out movement as the axle articulates, introducing torsional backlash that clunks during direction changes; and the shaft tube itself bends from impact with debris or ground obstacles, causing imbalance that destroys the transmission output bearing and axle pinion bearing within weeks. A forklift drive shaft that vibrates at speed should be removed and inspected immediately — continued operation with a bent or unbalanced shaft cascades failure through the entire driveline.

When replacing a forklift propeller shaft, always mark the orientation of the shaft relative to the transmission output flange and axle input flange before removal — the shaft is dynamically balanced as an assembly, and installing it 180 degrees out of phase creates imbalance even though the bolt pattern aligns. Check the U-joint bearing caps for evidence of movement in the yoke ears — elongated yoke ears require yoke replacement, not just a new U-joint. Verify that the slip yoke slides freely through its full travel without binding, and pack the splines with the specified grease before assembly to prevent fretting corrosion that accelerates spline wear.

Technical Specifications

Compatible Forklift Brands

OEM Cross-Reference

Quality Control at Kingstream

Every forklift transmission shaft we ship is inspected for the parameters that determine smooth power delivery. Shaft runout is measured with a dial indicator at the center and both ends — excessive runout indicates a bent shaft or misaligned yoke that causes driveline vibration. U-joint bearing cap fit in the yoke ears is checked for correct interference — loose caps spin in the yoke and destroy the ears. The slip yoke splines are checked for freedom of movement through full travel and for excessive radial play that indicates spline wear. The shaft assembly is visually inspected for cracks at weld joints between the tube and yokes. You receive a forklift propeller shaft that runs true, transfers torque smoothly, and does not vibrate — not one with a bent tube that destroys your transmission and axle bearings from the inside out.

Driveline vibrating or clunking? Send us your OEM part numbers for a fast quote on forklift transmission shafts. For other drivetrain components, browse our complete forklift transmission parts catalog.
