Forklift Steering Axle Assembly: How to Match a Replacement Axle by Brand, Model & Fitment
TL;DR
Use four evidence groups when buying a forklift steering axle: truck identity, original part number, measured interfaces and replacement scope. Choose a complete steering axle assembly when the beam, cylinder, tie rods or knuckles are worn together; choose a housing when the remaining steering hardware can be verified and reused.
Abstract
Match a forklift steering axle with four evidence groups: truck identity, original part number, measured interfaces and replacement scope. This guide separates complete assemblies from housing-only replacements and maps the decision to Kingstream’s verified steering-axle product groups.
Key Takeaways
- The reviewed local catalog snapshot reports a 66-product steering-axle category, including 8 complete assemblies, 6 housings and 7 knuckle products in their direct subcategories.
- A complete assembly and a housing-only replacement are different purchasing decisions; do not substitute one for the other by visual similarity.
- Fitment evidence should be organized into four groups: truck identity, original part number, measured interfaces and replacement scope.
- A product detail page is the source for model-specific fitment, material, dimensions, warranty and configuration claims.
- If the axle is bent or several steering components are worn, compare the total installed risk before choosing a partial repair.
Table of Contents
- Abstract
- Key Takeaways
- Why forklift steering axle fitment needs proof
- Complete steering axle assembly vs housing-only replacement
- How to match a forklift steering axle by model and fitment
- What is included in a forklift steering axle assembly
- Steering axle wear signs and checks before you buy
- Forklift steering axle product paths by brand and capacity
- Forklift steering axle replacement FAQ
- Conclusion
- References
Why forklift steering axle fitment needs proof
The safest way to buy a replacement forklift steering axle assembly is to prove the truck identity and mounting arrangement before comparing price. A photograph can show the general shape, but it cannot confirm the model, capacity, serial range, axle-side configuration, steering connections or the parts included in the quoted assembly.
A forklift steering axle is the rear axle system that carries the steering wheel ends and connects them to the truck through its mounting and pivot interfaces. A steering axle assembly is the grouped replacement scope for that system, while a steering axle housing is the structural body that may require the existing steering hardware to be transferred.
The short answer for buyers
Use four evidence groups before requesting a final quote: truck identity, including brand, exact model, rated capacity and serial range; the original part number; measured mounting and steering interfaces; and replacement scope, meaning a complete assembly, housing, knuckle or another component. If any group is incomplete, send photographs and measurements rather than treating a similar-looking listing as proof of fitment.
For a complete replacement, also confirm what the supplier means by assembly. One listing may cover the structural axle with steering hardware, while another may describe only the axle body or housing. The product detail page and the supplier’s written quote should define the scope.
Why the category structure helps
The reviewed Kingstream steering-axle catalog snapshot reports 66 products. Its direct product groups include 8 complete steering axle assemblies, 6 steering axle housings and 7 steering knuckles. Those counts are useful because they separate three different purchasing decisions:
- Choose a complete assembly when several connected parts are damaged, the old unit is difficult to verify, or transferring worn hardware creates too much installation uncertainty.
- Consider a housing-only replacement when the existing knuckles, hubs, cylinder, tie rods and pivot hardware have passed inspection and match the replacement body.
- Choose a knuckle or another individual part when the axle structure is sound and the damaged component can be identified and measured.
This guide focuses on the first path, a forklift steering axle assembly, while showing when a housing or knuckle is the more accurate request. It is written for maintenance and purchasing teams that need a reliable fitment decision and a quote package a supplier can act on.
Fitment rule: A replacement axle is order-ready only when the four evidence groups, truck identity, original part number, measured interfaces and replacement scope, all agree. Product appearance is a useful starting clue, not the final evidence.

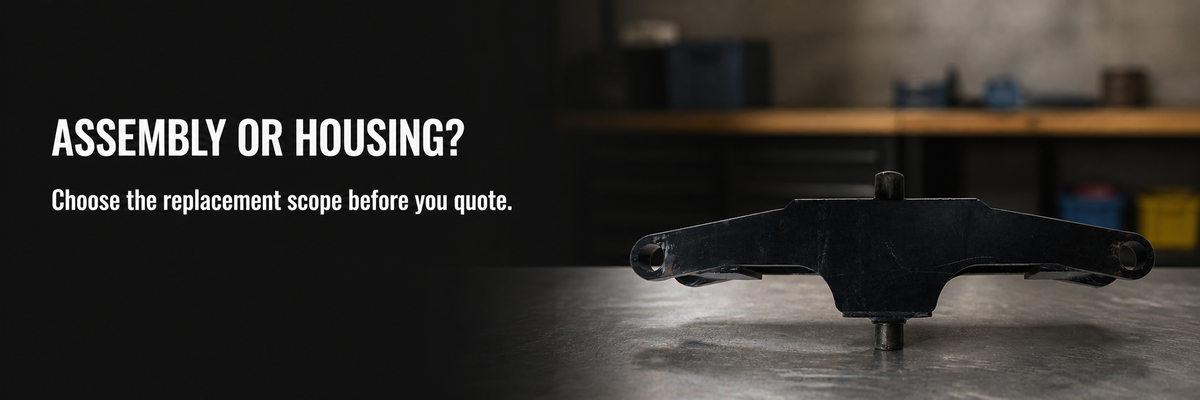

Complete steering axle assembly vs housing-only replacement
Choose a complete forklift steering axle assembly when the repair involves several connected parts or when the old axle cannot provide dependable fitment evidence. Choose a housing-only replacement only when the existing steering hardware is serviceable, measurable and confirmed compatible. The decision is about replacement scope and installed risk, not simply the lowest catalog price.
What a complete assembly is intended to solve
A complete assembly is a grouped replacement path for the rear steering axle. Depending on the listing, it may include the axle body plus some combination of knuckles, hubs, kingpins, bushings, steering cylinder or tie-rod connections. “Assembly” is not a universal contents list. Confirm every included component on the product detail page and written quotation.
When housing-only can be the right scope
A housing or axle body is a narrower structural replacement. It can be appropriate when the beam is damaged but the steering knuckles, hubs, pivot hardware, cylinder and tie rods are known to be reusable. Before choosing it, confirm that the replacement housing accepts the parts being transferred and that those parts have no hidden looseness, bending or abnormal wear.
Compare the repair paths
| Decision point | Complete steering axle assembly | Housing-only replacement |
|---|---|---|
| Structural damage | Best fit when the beam and attached interfaces need a broader replacement | Fits a sound, identifiable repair plan centered on the body |
| Reused hardware | Less transfer work when the listed scope includes the needed hardware | Requires inspection and reuse of existing knuckles, hubs and steering parts |
| Fitment evidence | Confirm assembly scope, truck identity and mounting arrangement | Confirm housing dimensions plus every transferred interface |
| Quote request | Ask for included components and complete-assembly fitment | Ask for housing scope and compatibility of reusable parts |
| Main risk | Assuming “assembly” includes parts not listed | Underestimating wear or mismatch in parts carried forward |
Kingstream separates complete assemblies, housings and steering knuckles into different product paths, so a buyer can describe the repair scope more accurately before asking for a quote. (Kingstream Forklift Parts, 2026) Use the forklift steering axle assembly category for the complete-assembly path and compare the steering axle housing category when the existing hardware is suitable for reuse.
The decision in one sentence
If the old unit has structural damage plus uncertain attached hardware, start with a complete assembly. If only the body is damaged and every transferred part passes inspection, a housing-only replacement may be the cleaner fit. In both cases, send the supplier the truck identity, part number, photographs and measurements before treating a product match as final.

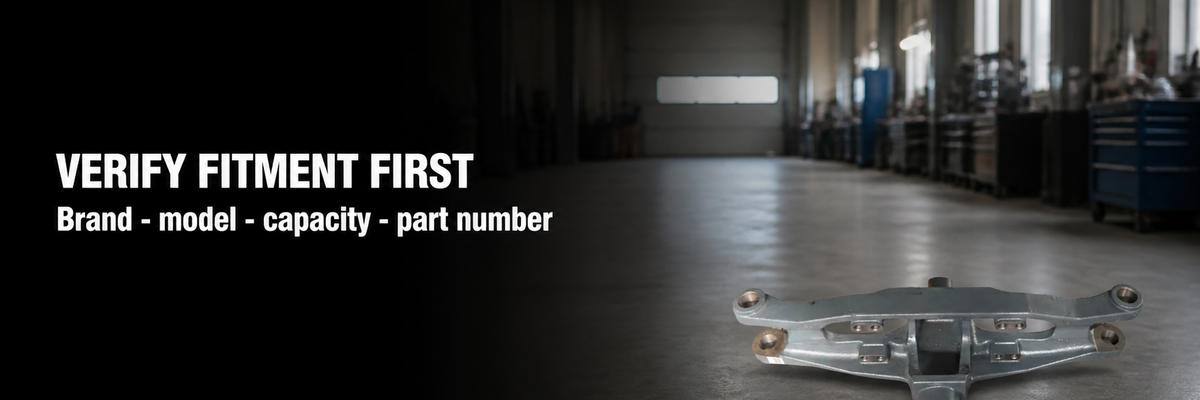

How to match a forklift steering axle by model and fitment
Match a replacement forklift steering axle assembly in two passes. First identify the truck and the original part. Then verify the physical interfaces that determine whether the proposed axle can be installed. Brand and model narrow the search, but capacity, serial range, part number and mounting measurements provide the stronger evidence.
Step 1: Record the truck identity
Write down the forklift manufacturer, exact model designation, rated capacity and serial number or serial range. Do not shorten a model name from memory. Similar trucks can use different rear axle arrangements across capacity classes, production years or regional configurations.
Step 2: Find the original part number
Search for a stamped, cast or tagged part number on the old axle. Record every letter, digit and separator, then photograph the marking in context. A part number is useful for cross-reference, but it should not be treated as the only fitment proof if the axle has been replaced or modified during the truck’s life.
Step 3: Measure the interfaces
Measure the dimensions that control installation and steering movement. Depending on the axle design, these can include:
- Mounting-hole spacing and hole diameter
- Overall beam width and wheel-end spacing
- Pivot-pin diameter, center distance and mounting height
- Steering-cylinder mount location and pin size
- Tie-rod or knuckle connection geometry
- Wheel hub or spindle interface where the supplied scope requires it
Step 4: Confirm replacement scope
Ask whether the quoted item is a complete forklift steering axle assembly, a bare axle body, a housing, a knuckle or another component. Confirm which parts are included and which must be transferred from the old unit. This distinction prevents a housing quote from being compared with a ready-to-install assembly as if they were equivalent products.
Step 5: Resolve conflicting evidence
If the product title suggests one model but the measured mounting pattern suggests another, stop the order and investigate. Check the serial range, previous repair records, axle-side orientation and any conversion history. A mismatch is a reason to request more evidence, not a reason to choose the closest-looking part.
Fitment checklist: The four evidence groups are truck identity, original part number, measured interfaces and replacement scope. Truck identity includes brand, model, capacity and serial range; measurements cover mounting, pivot, cylinder and wheel-end interfaces. Use all four groups before approval.
Step 6: Send a quote-ready package
The most useful request contains the data plate photo, axle photos, original part number, truck brand and model, rated capacity, serial range, measurements, repair scope and a short description of the failure. State whether you need a complete assembly or want to reuse selected hardware. A supplier can then review the right product family and tell you what additional evidence is missing.
Kingstream’s A21B4-30001 product page identifies a Heli 2-3T rear steering axle, showing why a replacement request needs more than the phrase “rear axle.” Record the truck brand, model, capacity, serial range, original part number and mounting measurements, then compare them with the listed product scope before approving a complete forklift steering axle assembly. (Kingstream Forklift Parts, 2026).
Talk to a specialist
The key decision in this guide is whether you need a complete forklift steering axle assembly or a housing-only replacement, and that choice depends on documented fitment. Kingstream is a single-source forklift parts supplier covering 14 major brands, with OEM-compatible forklift parts backed by fast quotation. Share the truck details and replacement scope through forklift parts sourcing services to clarify the right sourcing path.
What is included in a forklift steering axle assembly
A forklift steering axle assembly is a grouped replacement, but the word “assembly” does not guarantee a universal contents list. The product detail page and written quote must identify whether the item includes the axle body, steering hardware, wheel-end parts or only selected components. (Kingstream Forklift Parts, 2026)
Structural axle parts
The beam or axle body provides the structural link between the rear wheel ends and the truck mounting points. It may be listed as an axle body, axle housing or complete rear steering axle. These terms are related, but they do not describe the same supply scope.
A housing-only product generally covers the structural body and its mounting features. It may require the buyer to transfer the existing knuckles, hubs, kingpins, bushings, cylinder and tie rods. Confirm the mounting ears, pivot areas and steering connections before assuming the old hardware can move across.
Steering and wheel-end hardware
Depending on the specific listing, a complete assembly may group some steering-end components with the structural axle. Potential items include steering knuckles, hubs, kingpins, bushings, steering-cylinder mounts and tie-rod connections. The exact contents must come from the product detail page, not from a stock photograph or the word “complete” alone. (Kingstream Forklift Parts, 2026)
Steering knuckles can also be purchased as an individual repair path. That matters when the axle body remains sound but a wheel-end component is worn or damaged. Separating the knuckle request from a complete assembly keeps the quote aligned with the actual repair.
Scope comparison
| Product path | What it normally describes | What the buyer must verify |
|---|---|---|
| Complete steering axle assembly | A grouped rear axle replacement | Included components, truck fitment and installation interfaces |
| Steering axle housing or body | The structural beam or housing | Mounting points and compatibility of transferred hardware |
| Steering knuckle | A wheel-end steering component | Left or right side, interface and matching pivot hardware |
| Related steering part | An individual cylinder, tie rod or pivot item | Part number, dimensions and whether the axle body remains reusable |
The reviewed Kingstream catalog snapshot separates 8 complete assemblies, 6 housings and 7 steering knuckles within the wider 66-product steering-axle category. (Kingstream Forklift Parts, 2026) This structure gives a buyer three primary paths: replace the grouped assembly, replace the structural body, or repair the identified wheel-end component. Related steering parts remain a separate quote path when a cylinder, tie rod or pivot item is the actual failure.
Questions to put on the quotation
Ask the supplier to state whether the price covers the complete assembly, housing only or a named component. Ask which parts are installed, which are supplied loose and which must be reused. Then provide the truck model, capacity, serial range and original part number so the contents are reviewed against the correct configuration.
Scope rule: Never compare a housing-only price with a complete-assembly price until the included parts and transfer work are written down. The cheaper line item may leave the buyer responsible for several worn or incompatible components.
When the product scope is clear, the next step is to match the assembly by brand, model and measured fitment rather than by appearance.
Steering axle wear signs and checks before you buy
Inspect the old axle to decide the replacement scope, not merely to confirm that it looks worn. The inspection guidance below is a purchasing checklist based on the scope and interface fields shown in Kingstream’s steering-axle product pages, not a substitute for the truck manufacturer’s service manual. Check the structural body first, then the pivot, wheel-end and steering hardware. Several connected faults may justify comparing a complete forklift steering axle assembly with a housing-only repair, while one identifiable component may support a narrower replacement. (Kingstream Forklift Parts, 2026)
Structural damage
Look for a bent beam, cracked housing, distorted mounting ear, damaged pivot area, fresh weld repair, impact mark or metal deformation around the mounts. Abnormal tire alignment and uneven wheel clearance are additional reasons to investigate the axle geometry before selecting a replacement.
Pivot and wheel-end wear
Inspect the kingpin area, bushings and steering knuckles for looseness, scoring, uneven contact or damage at the steering connection. Excess movement can affect wheel control and may expand the repair beyond the part that first drew attention.
Cylinder and tie-rod checks
Check the steering cylinder for leakage, bent rod surfaces, damaged mounts and signs of forced misalignment. Inspect tie rods and joints for looseness, bending, damaged threads or impact damage. A housing-only purchase does not resolve worn steering hardware that must be transferred to the replacement body.
Use this checklist before requesting a quote:
- Photograph the axle from both sides and capture every identification mark.
- Record the forklift make, model, capacity, serial range and original part number.
- Measure mounting points, pivot locations and steering-cylinder connections.
- Record leaks, looseness, bends, cracks, weld repairs and abnormal wear.
- Separate reusable parts from components that need replacement or further inspection.
Buying rule: If the beam or housing is structurally damaged, or if several attached steering parts show wear, compare a complete assembly with a housing-only repair. A lower unit price is not automatically a lower installed risk.
When reuse is not a safe assumption
Kingstream’s A21B4-30001 listing identifies a Heli 2-3T rear axle as a specific application, not a universal axle silhouette. Before choosing a replacement, inspect the beam, mounts, pivot, knuckles, cylinder and tie rods, then compare the measured interfaces with the documented 2-3T fitment evidence and the quoted supply scope. (Kingstream Forklift Parts, 2026).

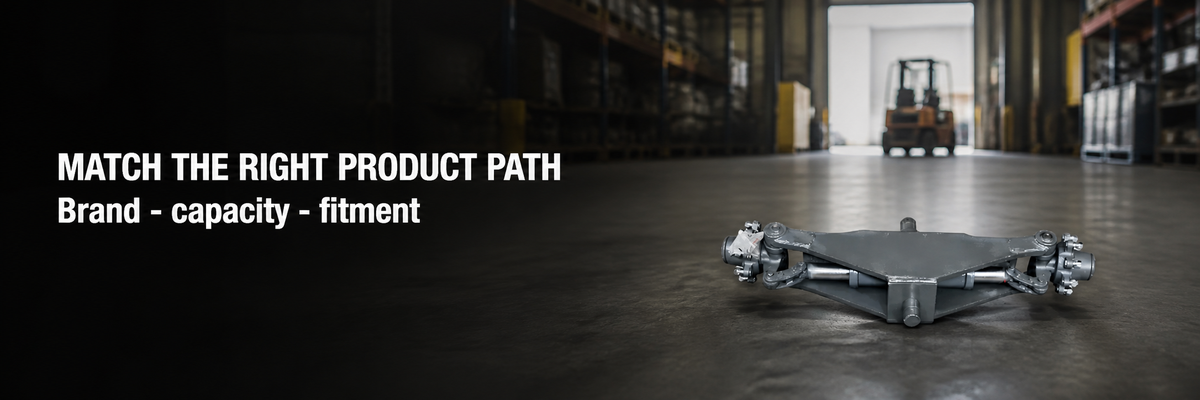

Forklift steering axle product paths by brand and capacity
The catalog should be used as a starting map, not as permission to order from a brand name alone. The reviewed Kingstream catalog snapshot contains 66 products, including 8 complete assemblies, 6 housings and 7 steering knuckles. The useful question is not “Which brand do I need?” but “Which product path matches this brand, model, capacity, serial range and repair scope?”
Heli and Haba applications
The catalog includes Heli-oriented replacement paths for several capacity and model families. Examples include the A21B4-30001 rear axle for Heli 2-3 ton equipment, a Heli forklift steering axle listing, and the A7V94-32001 rear steering axle housing associated with the CPD25-HA1. It also contains a Haba rear steering bridge listing.
30HB, Hangcha and J-Series paths
The catalog also provides model-specific references that show why the model field matters. A 30DH-211000 steering axle listing is associated with a 30HB forklift, while a rear axle body listing identifies a 30HB application. A Hangcha housing listing references CPCD20A, CPCD25A and CPCD30A. A JP300-221000-000 rear axle listing references the CPD20-35 J Series.
Toyota and knuckle-specific repair paths
Steering knuckle listings provide a separate route for a wheel-end repair. The catalog includes Toyota knuckle references such as 43212-23321-71 and 43211-23321-71 for 7FD25 and 7FD30 applications, as well as a listing that references 7F and 8F FDZN equipment. Other listings identify Heli and Tailift applications.
A product-path comparison
| Evidence in the request | Likely catalog path | Confirmation still required |
|---|---|---|
| Several axle and steering components damaged | Complete steering axle assembly | Included hardware, model and mounting fitment |
| Axle body damaged, attached parts reusable | Steering axle housing or body | Housing dimensions and transferred-part compatibility |
| Wheel-end part damaged, body remains sound | Steering knuckle | Side, pivot interface and matching hardware |
| Brand or model is known but part number is missing | Search the relevant brand family | Serial range, photographs and measurements |
How to turn a product match into a quote
Link the product family to evidence in one message: “This is a forklift steering axle assembly request for a Heli 2-3 ton truck; the original marking is A21B4-30001; the supplied photos and measurements are attached.” If the request is for a body only, say so and use the steering axle housing category as the reference path.
The product title narrows the search. The truck identity and physical measurements approve the fitment. Keeping those two steps separate prevents a familiar brand or capacity label from turning into an unsupported order assumption. (Kingstream Forklift Parts, 2026)
Forklift steering axle replacement FAQ
What is a steering axle on a forklift?
A forklift steering axle supports the rear steering hardware and lets the wheels change direction as the steering system moves. It works as a group of related parts, so a repair may involve the housing, knuckles, kingpins, bushings, cylinder or tie rods. (Kingstream Forklift Parts, 2026)
The buying decision is to identify the failed scope before choosing a replacement. A complete forklift steering axle assembly may fit when several connected components are damaged. A housing-only replacement may fit when the remaining hardware is sound, measurable and suitable for reuse.
How do I choose a replacement forklift steering axle assembly?
Start with the truck’s brand, exact model, rated capacity and serial information. Compare the original part number where available, then verify the mounting points and steering connections against the product detail page. A similar-looking rear axle is not enough evidence of fitment.
Send photographs of the existing axle, identification plate and damaged areas with the quote request. Include measurements and state whether you need a complete assembly, housing, knuckle or another part. This gives the supplier a defined replacement path instead of a guess based on appearance.
What parts are included in a forklift steering axle assembly?
The exact scope depends on the product listing. An assembly may relate to the axle beam or housing, steering knuckles, hubs, kingpins, cylinder and tie-rod connections. Do not assume every visible component is included. Confirm the supplied configuration on the product detail page before ordering. (Kingstream Forklift Parts, 2026)
The reviewed Kingstream steering-axle catalog snapshot contains 66 products, including 8 complete assemblies, 6 housings and 7 steering knuckles. These are different purchasing paths, so a knuckle or housing listing should not be described as a complete assembly without confirmation.
Can I replace only the forklift steering axle housing?
Yes, a housing-only replacement can be considered when the existing cylinder, tie rods, knuckles and other reusable hardware pass inspection and match the replacement housing. (Kingstream Forklift Parts, 2026) Account for every part that must be transferred, not only the housing’s outside appearance.
If the beam is bent or several attached steering components are worn, compare the installation risk of rebuilding the old unit with replacing the complete assembly. A partial repair can become less certain when too many unverified parts are carried forward.
What information should I provide for a steering axle quote?
Provide the forklift brand, model, capacity, serial range, original part number and photographs. Add measurements for mounting points, steering-cylinder connections and interfaces that will be reused. State whether the request is for a complete forklift steering axle assembly, a housing-only replacement or a component repair.
The most useful quote package answers two questions: what truck must the part fit, and what scope must the supplier price? If either answer is missing, ask for fitment confirmation before treating a catalog match as an order-ready replacement.
Replacement selection is therefore an evidence exercise: confirm the truck identity, define the repair scope and verify the physical interfaces before purchase.
Conclusion
Choose a complete forklift steering axle assembly when the beam and several connected steering parts are damaged, missing or too uncertain to reuse. Choose a housing-only replacement when the remaining knuckles, hubs, cylinder, tie rods and pivot hardware pass inspection and match the replacement body’s interfaces. Before ordering, send the four evidence groups: truck identity, original part number, measured interfaces and replacement scope, so the supplier can confirm the documented product path.
