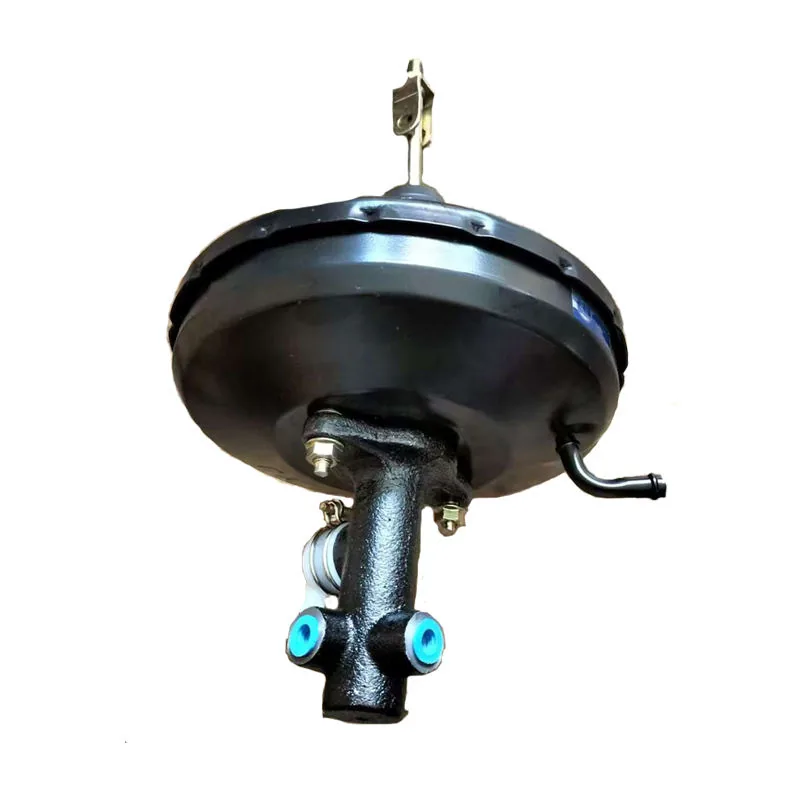

Forklift Vacuum Booster

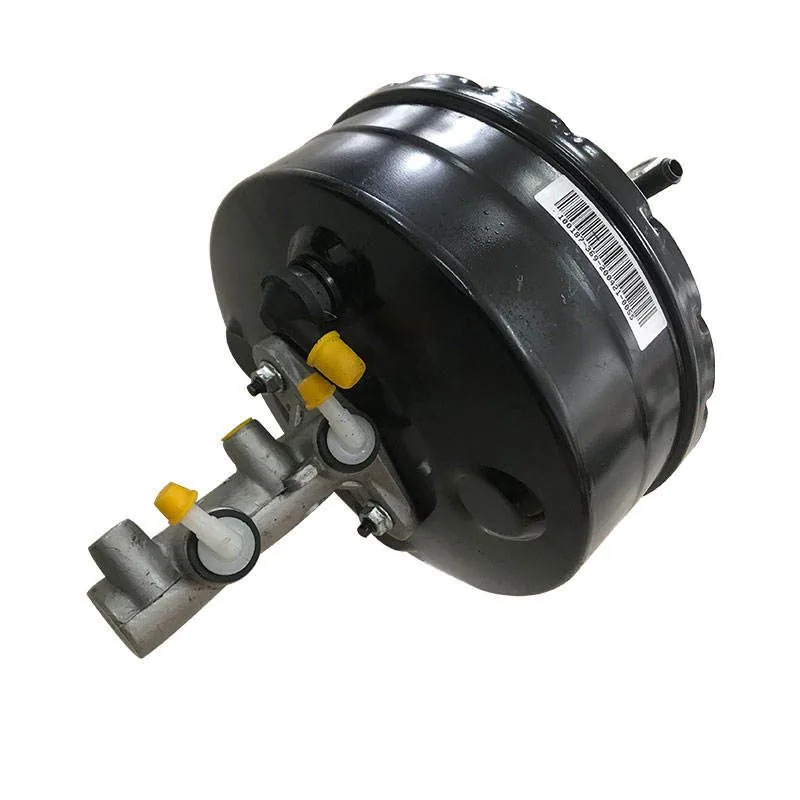

Forklift Vacuum Booster： Brake Booster Pump & Master Cylinder Assembly for Hydraulic Brakes

A forklift vacuum booster uses engine intake manifold vacuum to multiply the force applied by the operator foot on the brake pedal — it reduces pedal effort by a factor of three to five times, allowing the operator to brake a loaded forklift with light pedal pressure. When the booster fails, the brake pedal becomes hard and requires significantly more leg force to stop the forklift, extending stopping distances and increasing operator fatigue. Kingstream stocks replacement forklift vacuum boosters and brake booster assemblies for HELI, Isuzu, Komatsu, and Chinese forklifts. Every booster is vacuum-tested for diaphragm integrity, check valve function, and output force before shipment.

A forklift brake booster operates on a simple principle: the booster housing is divided into two chambers by a flexible rubber diaphragm. With the engine running, intake manifold vacuum is applied to both sides of the diaphragm through a one-way check valve, keeping the diaphragm centered. When the operator presses the brake pedal, a control valve opens that admits atmospheric pressure to the rear chamber while the front chamber remains under vacuum. The pressure differential across the diaphragm — typically 0.7 to 0.8 bar — creates a force that pushes on the master cylinder piston, multiplying the pedal force. The amount of boost is proportional to how far the pedal is pressed. When the engine stalls, the one-way check valve traps vacuum in the booster, providing enough reserve for one to two power-assisted brake applications before the pedal becomes hard. A forklift vacuum brake booster that leaks vacuum — either through a torn diaphragm, a failed check valve, or a cracked housing — produces a hard pedal from the first application and an audible hissing sound from under the dashboard when the brake pedal is pressed.

When replacing a forklift brake booster pump, always verify the vacuum source. Diesel forklifts do not produce intake manifold vacuum like gasoline engines — they use a separate vacuum pump driven by the alternator or engine. If the vacuum pump is weak or the vacuum line is cracked, a new booster will feel the same as the old one because it is starved of vacuum. Check the booster-to-master-cylinder pushrod length and adjustment — a pushrod that is too short reduces braking force at the wheels; a pushrod that is too long partially applies the brakes even with the pedal released, causing brake drag and overheating. The Isuzu 4HF1 booster OEM 854-05109 is a common unit on HELI A45 and similar 4-5 ton diesel forklifts and must be matched to the correct master cylinder bore diameter for proper braking balance.

OEM Cross-Reference

Quality Control at Kingstream

Every forklift vacuum booster we ship is vacuum-tested and function-verified before packing. The booster is connected to a vacuum source and the diaphragm is checked for leak-down — the vacuum level is monitored over 60 seconds with the check valve closed; any drop beyond the specified leak rate indicates a torn diaphragm, porous housing, or failed check valve seal. The output pushrod force is measured at full vacuum and full pedal input to confirm the booster delivers the specified force multiplication — a booster with a binding control valve or leaking atmospheric port produces low output force. The check valve is tested for one-way flow — it must hold vacuum in the booster while allowing free flow toward the vacuum source. The master cylinder mounting studs are checked for thread condition and stud alignment to ensure the master cylinder mounts squarely without stressing the pushrod. You receive a forklift brake booster that multiplies pedal force, holds vacuum reserve after engine shutdown, and does not hiss — not one with a pinhole diaphragm leak that causes a hard pedal and extended stopping distances when carrying a rated load.

Brake pedal too hard to press? Send us your forklift model and engine type for a fast quote on forklift vacuum boosters. For other brake components, browse our complete forklift brake parts catalog.
