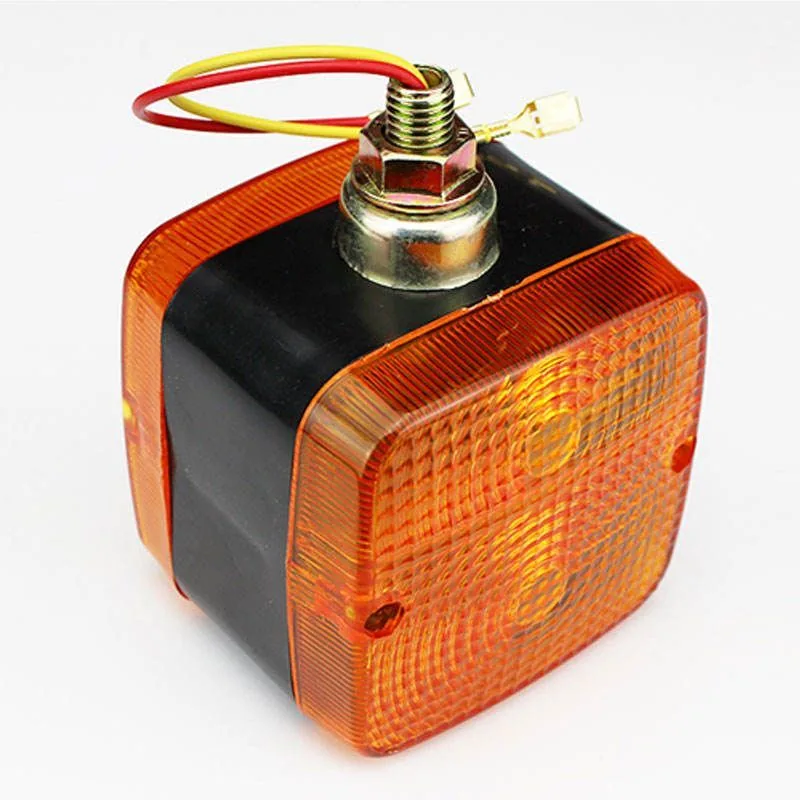

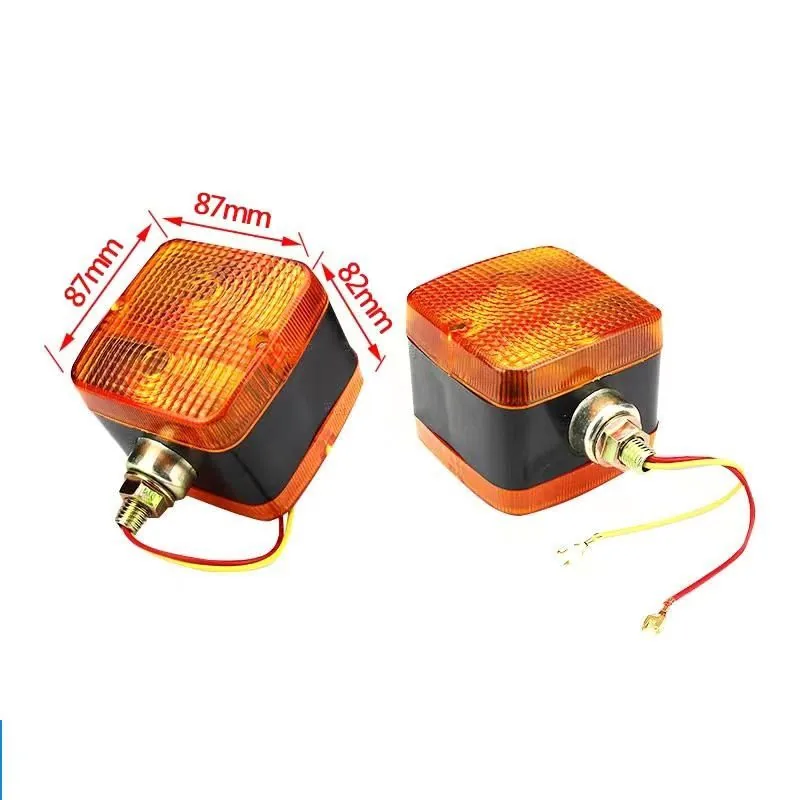

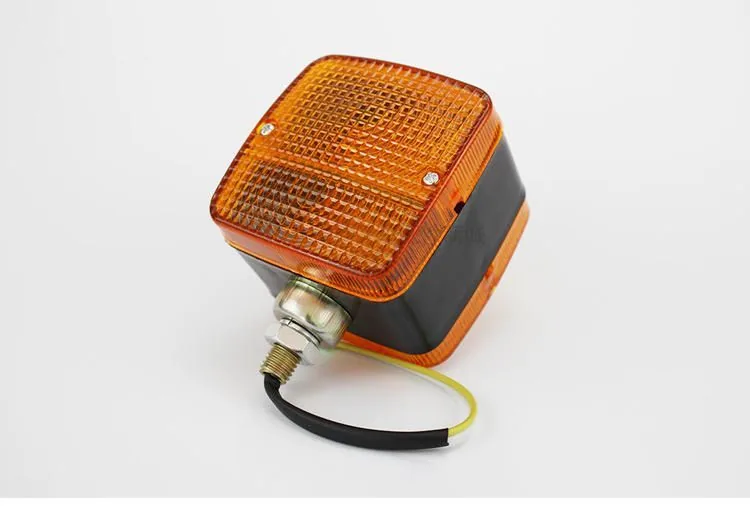

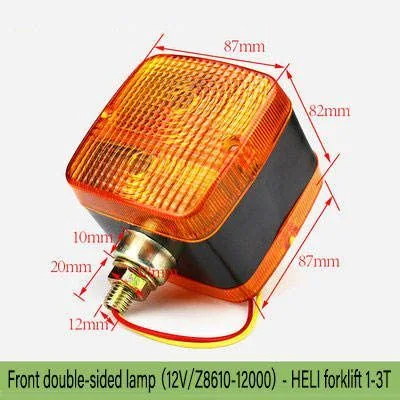

Heli XH7-1 12V Front Direction Light Lamp for 1-3T Forklift

The Heli XH7-1 is a 12V double-line front direction indicator light assembly designed for HELI 1T to 3.5T diesel and LPG counterbalance forklifts. As a mandatory safety signaling component, this front turn signal lamp alerts pedestrians and other equipment operators to the forklift’s intended turning direction — critical in busy warehouse aisles and loading docks where visual cues are the primary means of collision avoidance. A failed or dim XH7-1 signal light creates an immediate safety hazard, particularly in low-light interior environments where forklift movement without functioning indicators can go unnoticed until it is too late.

This OEM-spec lamp assembly features a 12V incandescent bulb socket (BA15S base) housed in an amber polycarbonate lens with integrated reflector optics that maximize visibility across a 120-degree horizontal arc. The double-line wiring configuration — one wire for the turn signal circuit and one for the parking/running light circuit — matches the HELI CPCD10-35 series electrical harness without modification. The housing is constructed from ABS plastic with a rubber perimeter gasket that seals against the front cowl mounting surface, preventing water and dust ingress into the lamp cavity during outdoor yard operation.

Direct replacement for HELI CPCD10, CPCD15, CPCD18, CPCD20, CPCD25, CPCD30, and CPCD35 series forklifts. Verify your existing lamp has the 2-wire (double line) configuration — HELI also uses a 3-wire version for some export models. For complete forklift lighting including rear combination tail lights, work lights, and warning strobes, browse our forklift light and lamp category.

Technical Specifications

• OEM / Part Number: XH7-1 (HELI)
• Voltage: 12V DC
• Type: Front direction indicator (turn signal)
• Wiring: Double-line (2-wire configuration)
• Lens Color: Amber (orange), polycarbonate
• Bulb Base: BA15S bayonet (incandescent)
• Housing Material: ABS plastic with rubber gasket seal
• Visibility: 120-degree horizontal arc with reflector optics
• Fitment: HELI CPCD10-35 series front cowl mount
• Quality: OEM-spec replacement, plug-and-play

Compatible HELI Forklift Models

Each XH7-1 signal lamp ships with a pre-installed BA15S bulb and mounting screws. When replacing, apply a thin bead of silicone sealant around the rubber gasket mating surface to ensure a watertight seal. If the lamp flashes rapidly or not at all, check the flasher relay before replacing the lamp assembly — a hyper-flash condition typically indicates a faulty flasher unit, not a burned bulb. For electrical system troubleshooting, visit Baldwin Filters. Kingstream stocks the XH7-1 front direction light for same-day dispatch — worldwide shipping.
