2-Ton Forklift Fork 100x32x1520mm – Class 2A

2-Ton Forklift Fork 100×32×1520mm — Class 2A Mounting, Adjustable Length 920-2440mm, 300K Pairs/Year Supply

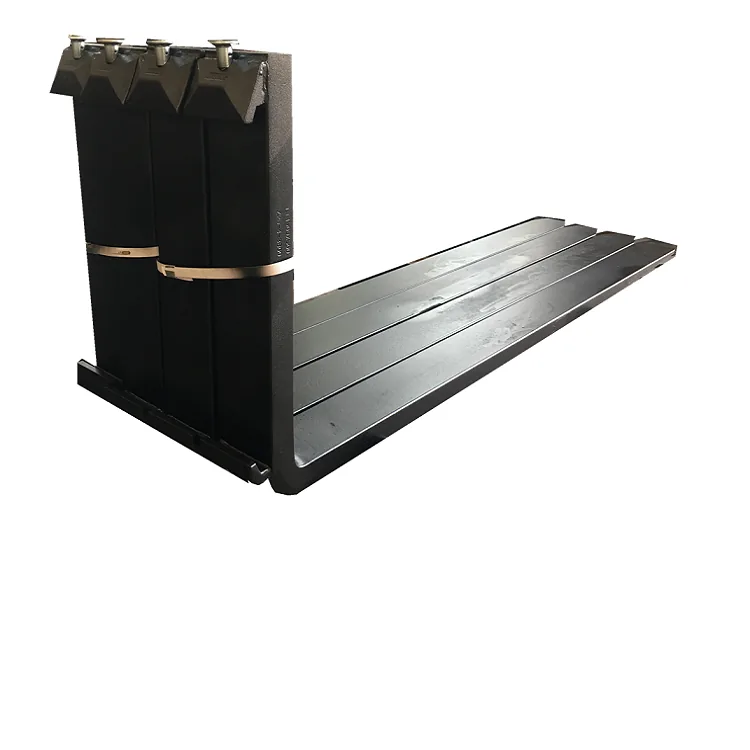

This 2-ton rated forklift fork with 100×32mm cross-section and 1520mm standard length is a Class 2A mounting fork designed for ITA-standard carriages on light-to-medium duty counterbalance forklifts. With a 548mm mounting height and 460mm taper length, this fork matches the most common Class 2A dimensions for Toyota, Komatsu, HELI, and Hangcha 1-2.5 ton forklifts. The fork is part of a full product range spanning 1-ton through 5-ton capacities with supply capability of 300,000 pairs per year from a Qingdao-port export facility — indicating a high-volume, standardized manufacturing operation with consistent quality control. Machinery test reports and video outgoing inspection are provided with each unit, and the adjustable fork length (920-2440mm) and width (76-450mm) ranges accommodate diverse pallet and load configurations across building material, manufacturing, farm, retail, construction, and energy/mining applications. 1-year warranty on core pin kit components included.

Installing Class 2A forks requires verifying the mounting class matches your carriage — Class 2A uses a specific hook profile, mounting height (548mm), and locking pin position that differs from Class 3A and 4A. Mixing fork classes on the same carriage creates uneven fork positioning and dangerous load instability. Before installation, measure your existing fork’s mounting height and taper length to confirm Class 2A compatibility. The 100×32mm cross-section is standard for 1-2 ton forklifts; installing these forks on higher-capacity machines will result in fork bending or failure under load. After installation, verify both forks are at identical positions and locking pins are fully engaged. The machinery test report documents material certification and dimensional verification — retain for safety compliance. 1-year warranty covers pin kit manufacturing defects.

Full Fork Size Table (1T-5T Capacity Range)

This listing is for the 2-Ton 100×32×1520 Class 2A fork. Other sizes available — contact us to specify your required capacity and dimensions.

Technical Specifications

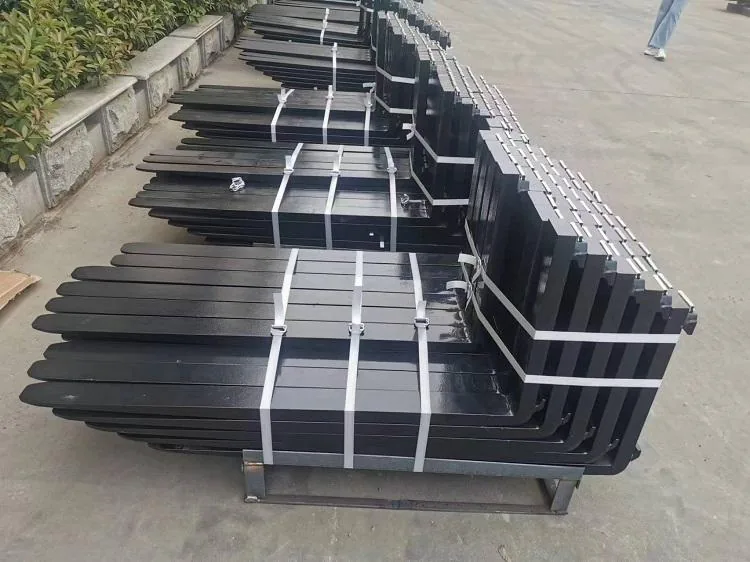

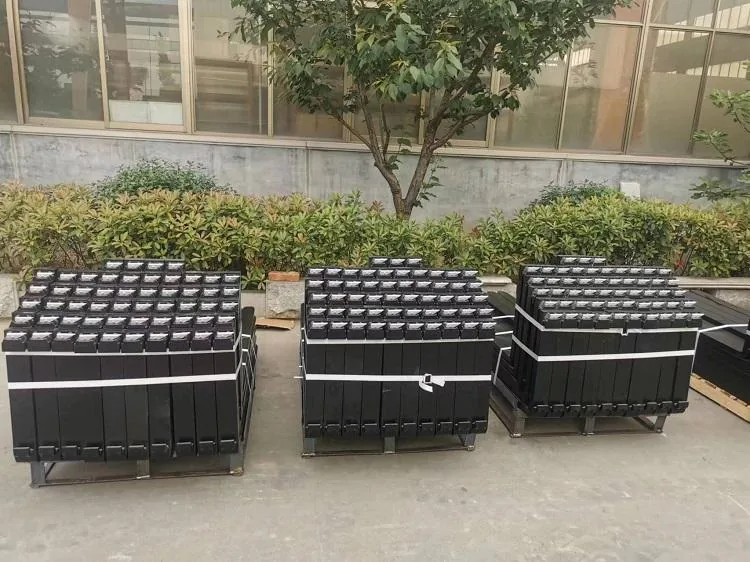

Machinery test report and video inspection provided. Steel pallet packaging, Qingdao port dispatch. 300,000 pairs/year supply capacity. 1-year pin kit warranty. For other fork sizes or bulk orders, contact us.
