Forklift Parts 91G33-00900 Brake Drum& Hub for FD20~30N(F14E-L02) with OEM_ 43204-FK310
$199.99
91G33-00900 brake drum and hub assembly for FD20-30N forklifts, OEM 43204-FK310 compatible. G3000 cast iron, pre-installed hub with studs and bearing races. Dynamic balanced. 12-month warranty at Kingstream.
91G33-00900 Brake Drum and Hub Assembly for FD20-30N Forklifts

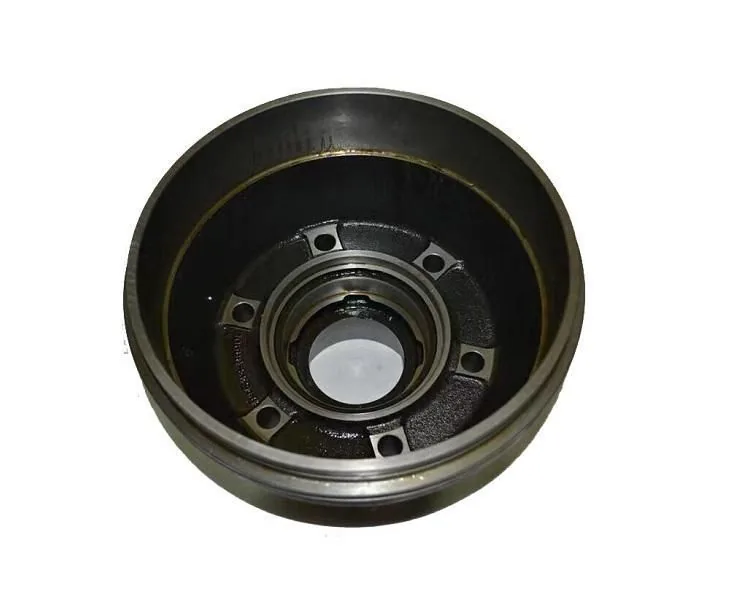

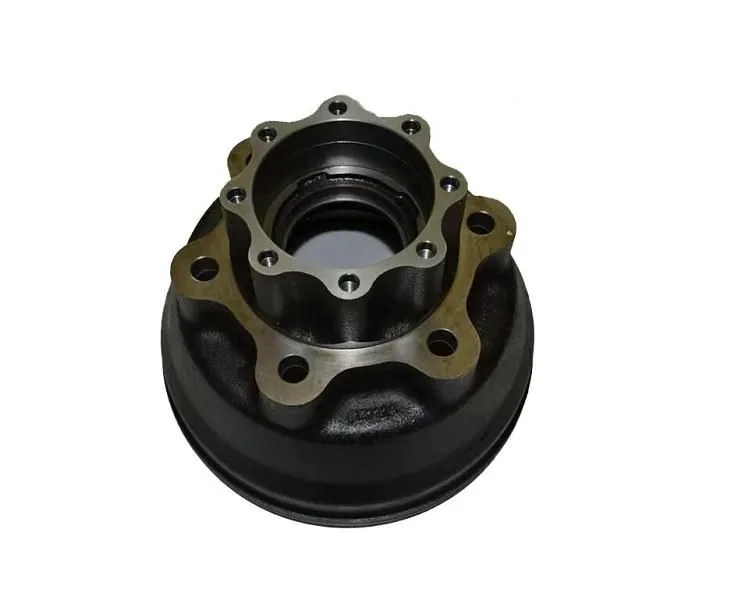

The 91G33-00900 is a complete brake drum and hub assembly designed for FD20, FD25, and FD30N (F14E-L02) series 2-3 ton internal combustion forklifts, compatible with OEM part number 43204-FK310. This assembly combines the brake drum friction surface with the pre-installed wheel hub, wheel studs, and bearing races in a single bolt-on unit, simplifying brake system overhaul by eliminating the need to separate the drum from the hub and press in new studs or races. The drum is cast from high-grade gray iron (G3000 equivalent) with a precision-machined inner braking surface and dynamically balanced construction for vibration-free braking performance.

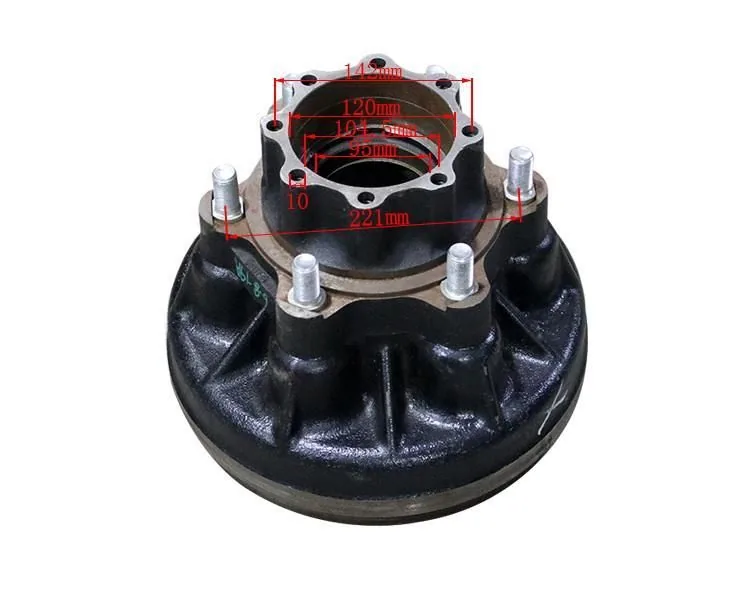

The drum friction surface is finish-machined to Ra 1.6μm or better, providing immediate full-contact brake shoe engagement without extended bedding-in. The center pilot bore is CNC-machined for accurate centering on the axle spindle, and the wheel studs are pressed in on a precisely controlled bolt circle diameter with chamfered lug seats. The hub section includes pre-installed tapered roller bearing races and a rear grease seal, reducing installation time and ensuring correct bearing preload when torqued to specification. The outer drum surface features cast-in cooling ribs that increase convective heat transfer area and reduce peak brake temperatures during repeated stop-and-go operation.
Direct bolt-on replacement for FD20, FD25, FD30N, and F14E-L02 series forklifts, as well as cross-compatible with select Nissan and TCM models using the 91G33-series brake drum and hub assemblies. Always replace drums in matched axle pairs. Inspect the axle spindle for wear and the wheel bearings for pitting or discoloration before installation, and repack new bearings with high-temperature wheel bearing grease. For compatible brake shoes, wheel cylinders, and bearing kits, visit our Forklift Drive Axle Parts section.
Technical Specifications
- PN: 91G33-00900 / OEM 43204-FK310
- Capacity: 2-3 Ton Forklift (FD20-30N)
- Material: G3000 Gray Cast Iron
- Surface: Precision-Machined Ra 1.6μm
- Includes: Drum, Pre-Installed Hub, Studs, Bearing Races
- Balance: Dynamically Balanced
Compatible Forklift Models
| Brand | Models |
|---|---|
| FD Series | FD20, FD25, FD30N (F14E-L02) |
| Nissan | F02-F04 Series (Cross-Compatible) |
| TCM | FD20-30T9 (Verify Hub Pattern) |
Each assembly is multi-point dimensionally inspected and dynamic balanced before packaging. Ships with bearing races pre-installed and machined surfaces coated with rust preventative. 12-month warranty. Contact our team for fleet service support.
