13 Teeth 275mm Diameter Spare Parts Forklift Accessories Clutch Disc
$49.99
13 teeth 275mm diameter forklift clutch disc for 2-3 ton diesel forklifts. Sprung hub with torsional dampers, organic facing. Heli Hangcha Lonking TCM Toyota Komatsu.
13 Teeth 275mm Forklift Clutch Disc — Friction Plate for 2-3 Ton Diesel Forklifts

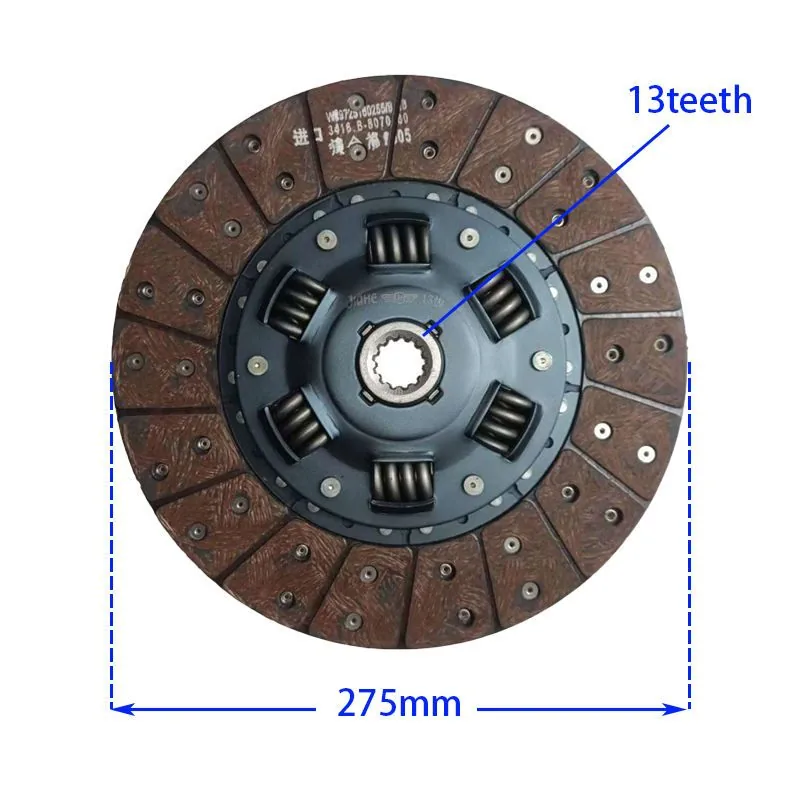

This 13-teeth 275mm diameter clutch disc is a precision friction component for 2-3 ton diesel forklifts equipped with manual transmissions. The clutch disc serves as the torque-transfer interface between the engine flywheel and the transmission input shaft. During engagement, the pressure plate clamps the disc friction facings against the flywheel, transmitting engine power through the splined hub into the gearbox. When the clutch pedal is depressed, the clamping force releases and the disc freewheels, enabling gear changes. The 13-tooth spline count and 275mm outer diameter are the two most critical fitment parameters — the spline must match the transmission input shaft exactly for installation, and the diameter must match the pressure plate and flywheel friction surface dimensions for proper clamping and torque capacity.

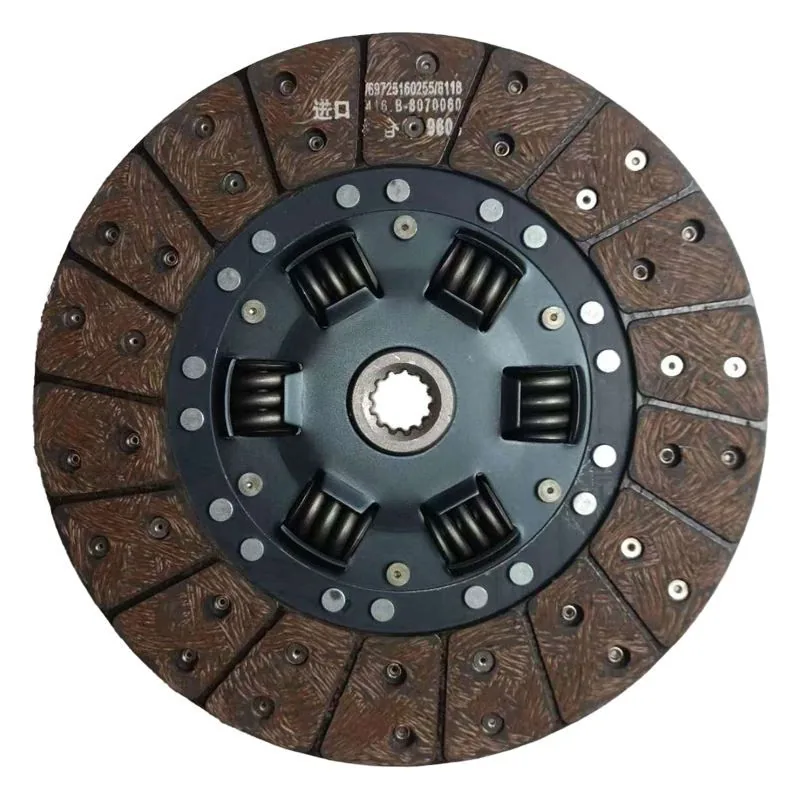

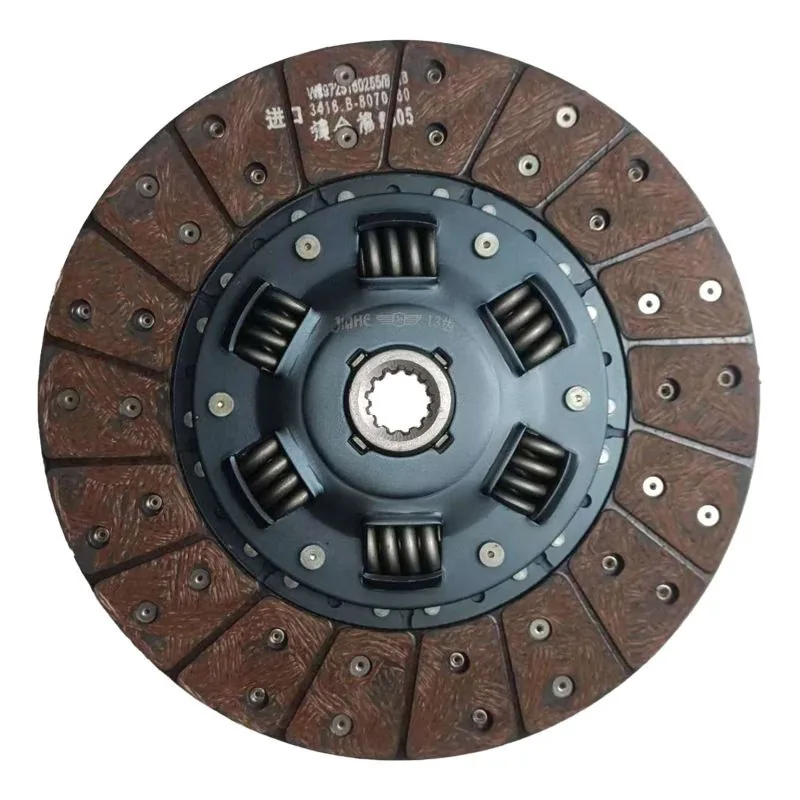

Constructed with high-friction organic or semi-metallic facing material securely riveted to both sides of a steel core plate, this disc features a sprung-center hub design incorporating multiple torsional damper coil springs. These springs absorb the cyclic power-pulse vibrations characteristic of four-cylinder diesel engines, providing progressively smooth clutch take-up that reduces shock loading on transmission gears, driveline universal joints, and axle differential components. The hub spline bore is precision-broached for accurate sliding fit on the input shaft, and the whole assembly is individually balanced at the factory to minimize vibration at engine operating speeds.
Direct fit for 2-3 ton forklifts specifying 13-tooth spline and 275mm clutch diameter: Heli CPCD20-CPCD30, Hangcha CPCD20-CPCD30, Lonking LG20D-LG30D, TCM FD20-FD30, and Toyota/Komatsu models in equivalent capacity class. Always verify spline count, outer diameter, and spline bore ID before ordering. Replace as a complete kit with pressure plate, release bearing, and pilot bearing. Browse our transmission parts collection. Reference at Heli official website.
Technical Specifications
- SKU: CLUTCH-13T-275MM
- Spline: 13 Teeth
- Outer Diameter: 275mm
- Type: Sprung-Hub Clutch Disc with Torsional Dampers
- Facing: Organic / Semi-Metallic, Riveted Dual-Side
- Application: 2-3 Ton Diesel Forklifts
Compatible Forklift Brands
| Brand | Models (13T / 275mm) |
|---|---|
| Heli / Hangcha | CPCD20-CPCD30 |
| Lonking / TCM | LG20D-LG30D / FD20-FD30 |
| Toyota / Komatsu | 2-3 Ton Diesel Manual Models |
Kingstream clutch discs are individually VCI-wrapped and boxed. QC includes spline gauge and bond testing. 12-month warranty. Contact us for pricing.
Full Category Coverage
One supplier for all forklift systems — engine, hydraulic, electrical, mast, brake, undercarriage. No need to juggle multiple vendors.
No Minimum Order
Trial orders welcome. Single-piece to bulk supply. You test first, scale later. We treat every order seriously.
Three Quality Choices
Original, OEM, or Aftermarket. You decide based on budget and application. We don't upsell — you control cost and performance.
Direct 1-on-1 Communication
You talk to the sourcing decision maker. No sales reps, no forwarding. Faster answers, clearer quotes, real accountability.
Mixed Order Consolidation
Combine different parts in one shipment. Save on freight. We handle the picking, packing, and export documentation.
After-Sale Warranty
Manufacturing defects covered. Free replacement or credit arranged quickly. Your trust is worth more than any single transaction.
Same part, different brand numbers. This cross-reference table helps you confirm compatibility across multiple forklift brands. If your brand or part number is not listed, send it to us — we will match it.
| Brand | OEM Part Number | Notes |
|---|---|---|
| TOYOTA | 47201-23300 | Original |
| KOMATSU | 3EB-30-41200 | Original |
| HELI | 24022-83011 | Original |
| HANGCHA | R240-83011 | Original / OEM |
| LINDE | 0009830123 | OEM |
| HYSTER | H47201-233 | OEM |
| TCM | TCM-47201 | OEM |
| AFTERMARKET | AM-47201 | Cost-effective replacement |
