Dalian Forklift 5-8T Forklift Parts Clutch Piston

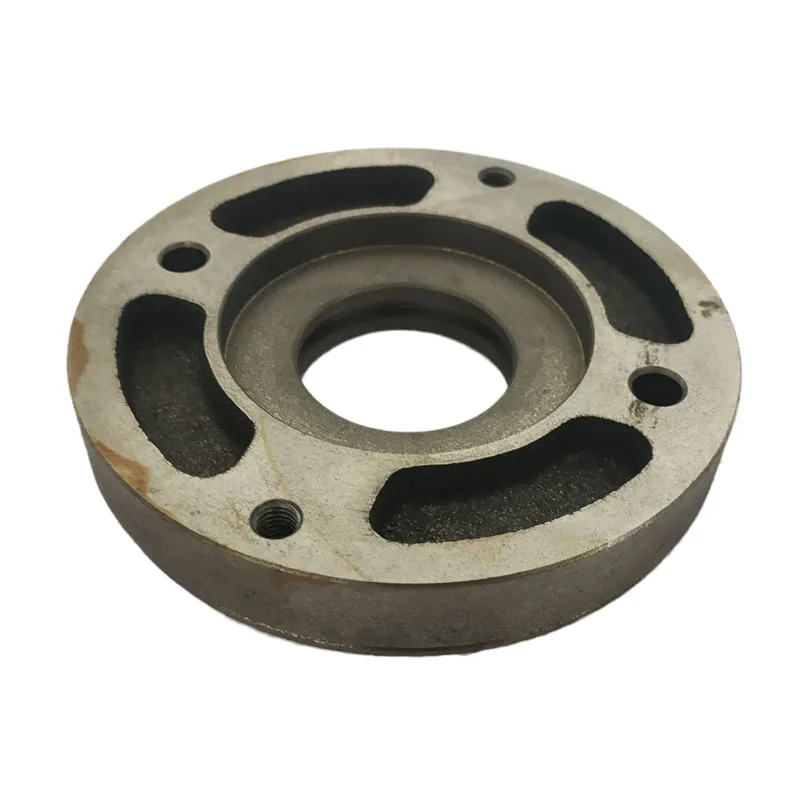

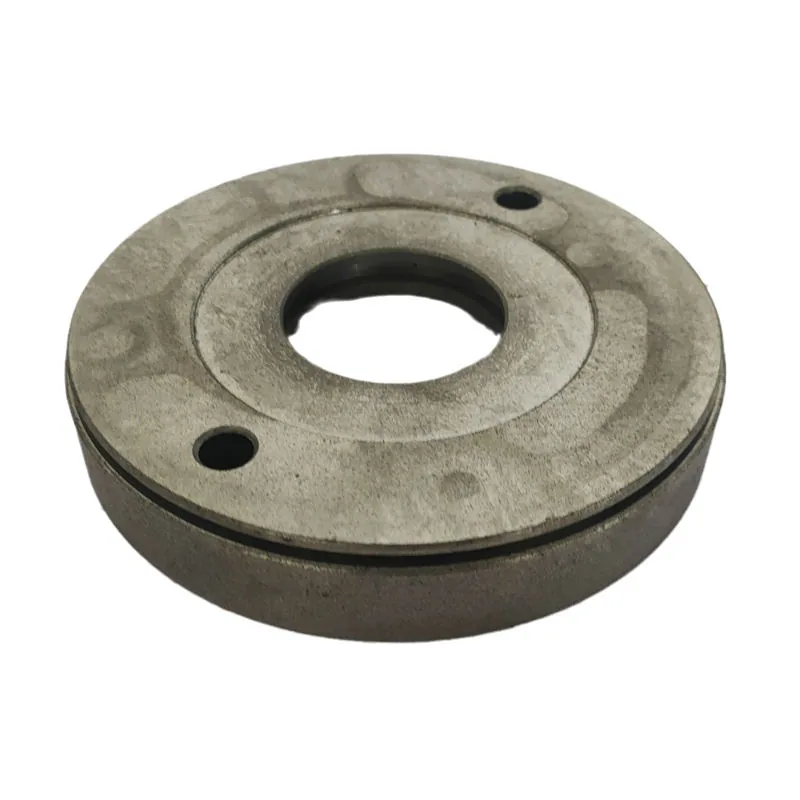

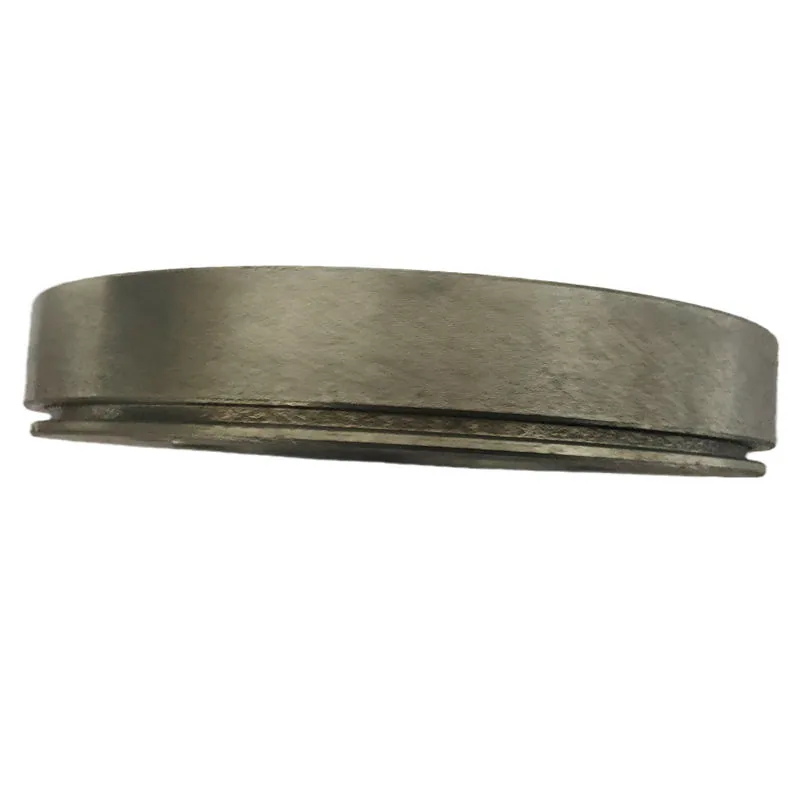

Clutch Hydraulic Piston for Dalian 5-8 Ton Heavy-Duty Forklift — Slave Cylinder Piston

This clutch hydraulic piston is dimensioned for Dalian 5-8 ton heavy-duty forklift slave cylinders — a very different component from the 2-3.5 ton aluminum clutch pistons found on standard forklifts. The 5-8 ton class operates at significantly higher hydraulic system pressures (typically 12-18 MPa versus 6-8 MPa on light forklifts) because the clutch pack in a heavy machine requires substantially more clamp force to handle the 80-130 kW diesel engines that power these machines. This piston must withstand repeated hydraulic pressure cycles that would cause fatigue cracking in an aluminum piston within months — which is why Dalian specifies a steel or high-strength cast iron piston body with a hard-chrome-plated running surface for this capacity class. The plating serves dual purpose: it provides a mirror-smooth finish that minimizes seal friction and wear, and it creates a corrosion barrier against the moisture-contaminated brake fluid that inevitably accumulates in heavy forklifts operated outdoors, in ports, and on construction sites where high humidity and water ingress are constant.

The most critical installation spec on this piston — and the difference that causes the most warranty claims when ignored — is the running clearance between the piston OD and the slave cylinder bore. On a 2-3.5 ton machine, the specified clearance is 0.03-0.06mm. On the 5-8 ton Dalian cylinder, the clearance is 0.05-0.10mm — deliberately wider to accommodate the greater thermal expansion of the larger-diameter piston as the transmission housing heats from cold start to operating temperature (which can exceed 100°C in heavy-duty cycle operation). If a mechanic installs this piston into a cylinder with a too-tight bore (common when a “standard” clearance is assumed across all sizes), the piston will seize in the bore during the first hour of loaded operation, locking the clutch either engaged or disengaged and requiring transmission removal to extract the seized piston. The hard-chrome surface is also less forgiving of contaminated fluid than the anodized aluminum used on light forklift pistons — a single grain of sand or metal chip in the fluid will score the chrome surface and create a leak path past the piston seal that cannot be repaired without piston replacement.

Direct replacement for Dalian 5-8 ton diesel forklift clutch slave cylinders. Also compatible with Heli CPCD50-CPCD80, Hangcha CPCD50-CPCD80, and other heavy-duty Chinese forklifts sharing the Dalian transmission platform. Always verify the piston diameter with a micrometer (typically 25-32mm range for 5-8T) and the cylinder bore ID before ordering. Replace the complete seal kit (cup seal, wiper seal, dust boot) simultaneously. Flush the hydraulic system with fresh DOT 3 or DOT 4 fluid and bleed thoroughly. For 2-3.5 ton clutch pistons, browse our transmission parts category. Reference OEM at Heli official website.

Technical Specifications

• SKU: CLUTCH-PISTON-DL58T
• Key Differentiator: 5-8 Ton heavy-duty steel/chrome piston — NOT interchangeable with 2-3.5T aluminum pistons. Larger diameter, higher pressure rating, hard-chrome plated for outdoor/port duty.
• Material: Steel/Cast Iron Body with Hard-Chrome Plated Running Surface
• Capacity: 5-8 Ton Heavy-Duty Forklifts
• System Pressure: Rated for 12-18 MPa Hydraulic Clutch Systems
• ⚠ Clearance: 0.05-0.10mm Running Clearance Required — Wider Than Light Forklift Spec
• Warranty: 12 Months

Compatible Forklift Models

Kingstream heavy-duty clutch pistons are individually VCI-wrapped and packed in rigid cartons. QC: diameter measurement, chrome thickness check, surface finish inspection. 12-month warranty. Contact us with your cylinder bore diameter for fitment verification.
