Forklift Buzzer 12-80V – Forward Ding-Dong Movement Warning 36630-00160 821111
$24.99
Forklift forward movement buzzer: 12-80V ding-dong dual-tone warning. OEM 36630-00160 821111. Wide voltage for all forklift types. LFT LD19-N001G.

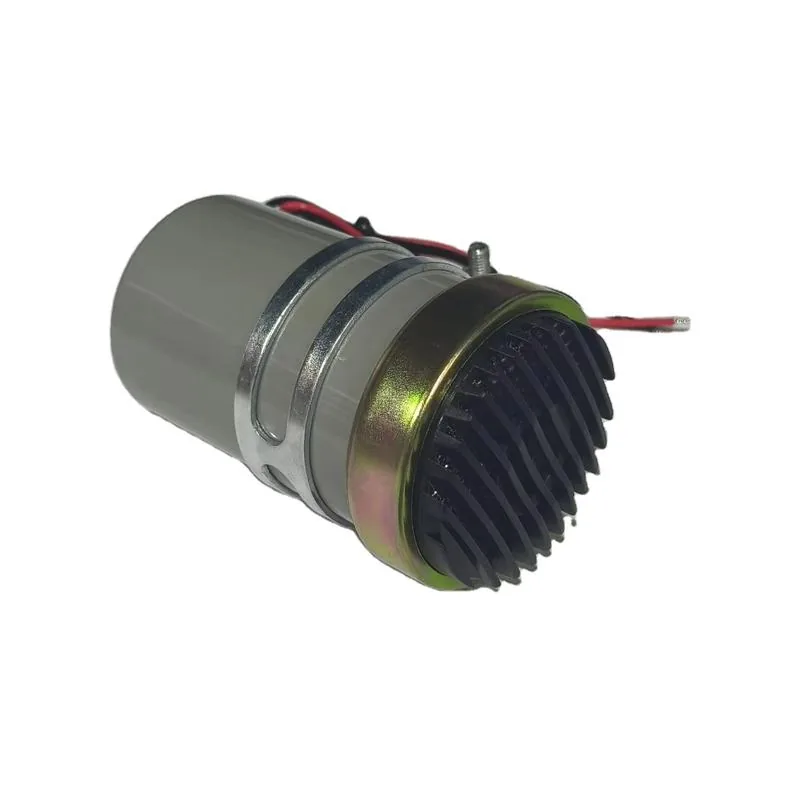

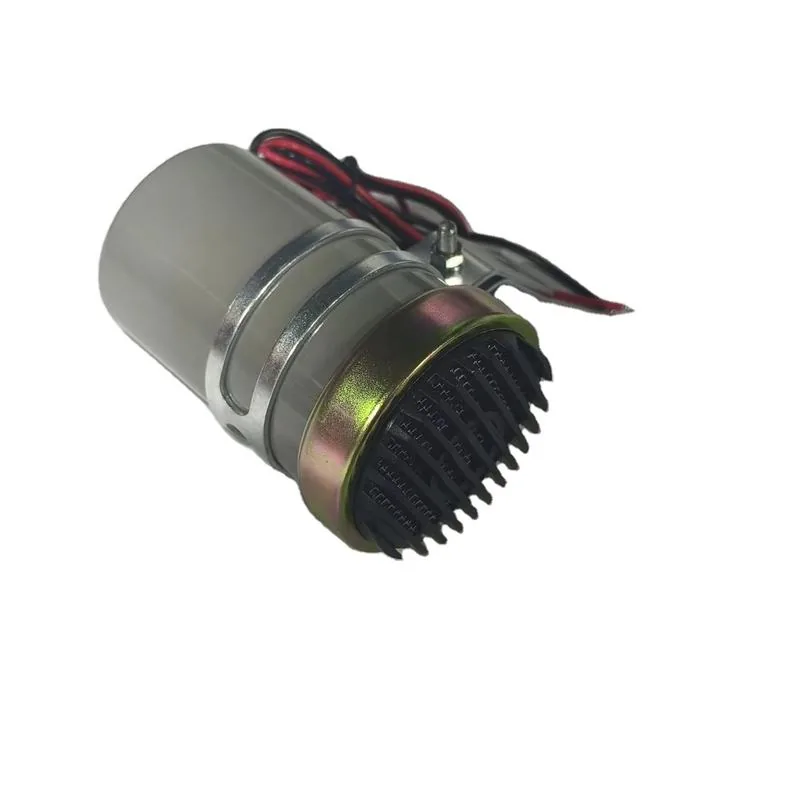

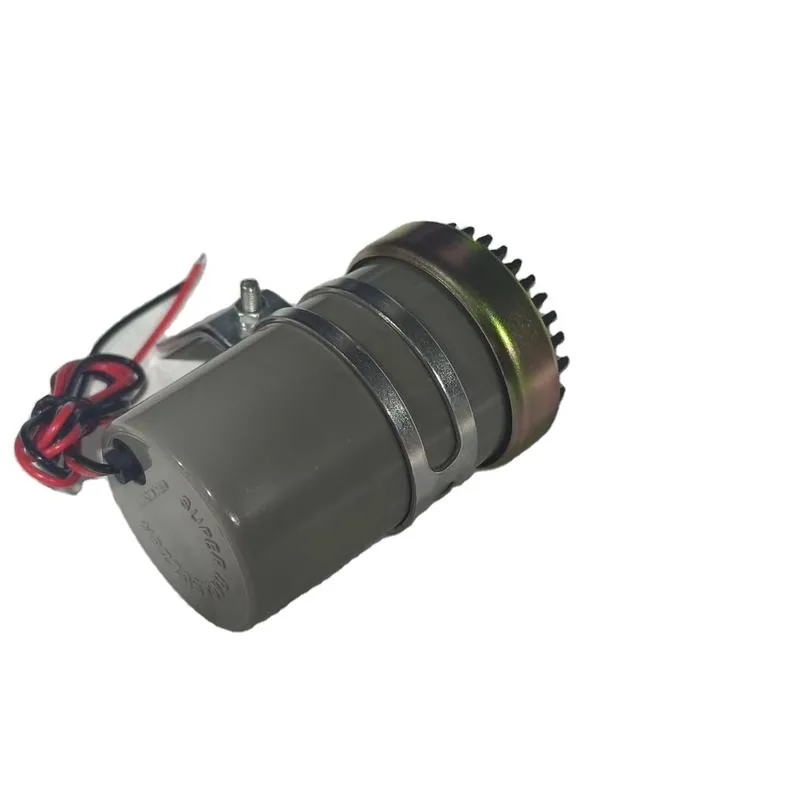

Forklift Buzzer 12-80V — Forward Ding-Dong Movement Warning, OEM 36630-00160 / 821111
This is a wide-voltage (12-80V) forward movement warning buzzer that produces a distinctive “ding-dong” chime — not the standard reverse beep. It is designed specifically for forward travel warning, alerting pedestrians and other operators that the forklift is moving forward in busy warehouse aisles and blind intersections. The dual-tone ding-dong sound is more recognizable than a single-tone beep and is less likely to be tuned out by workers in high-noise environments. Unlike a reverse buzzer that only activates in reverse gear, this forward warning buzzer activates whenever the forklift is in forward motion.

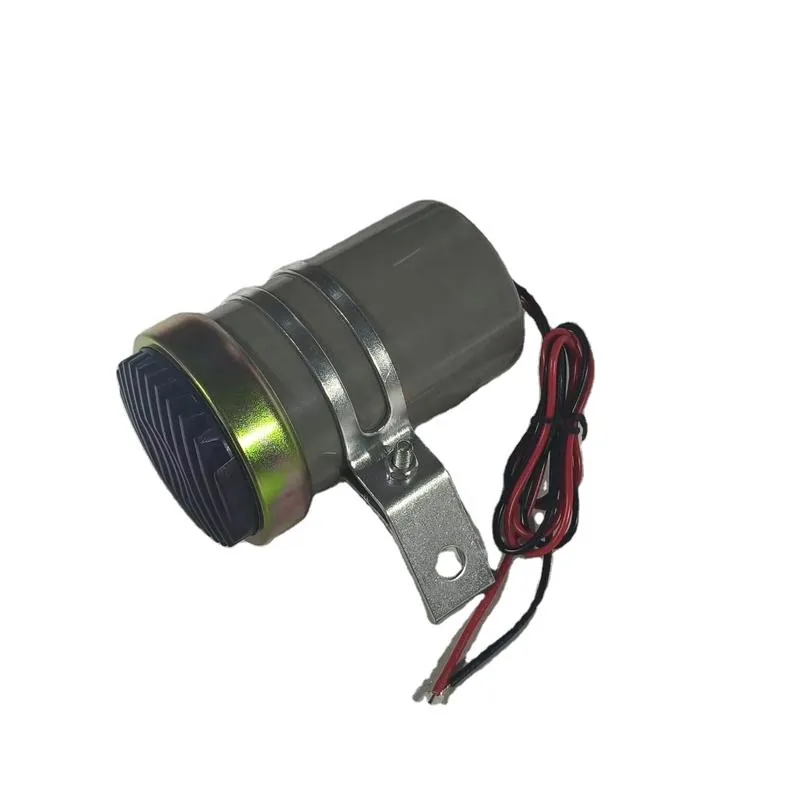

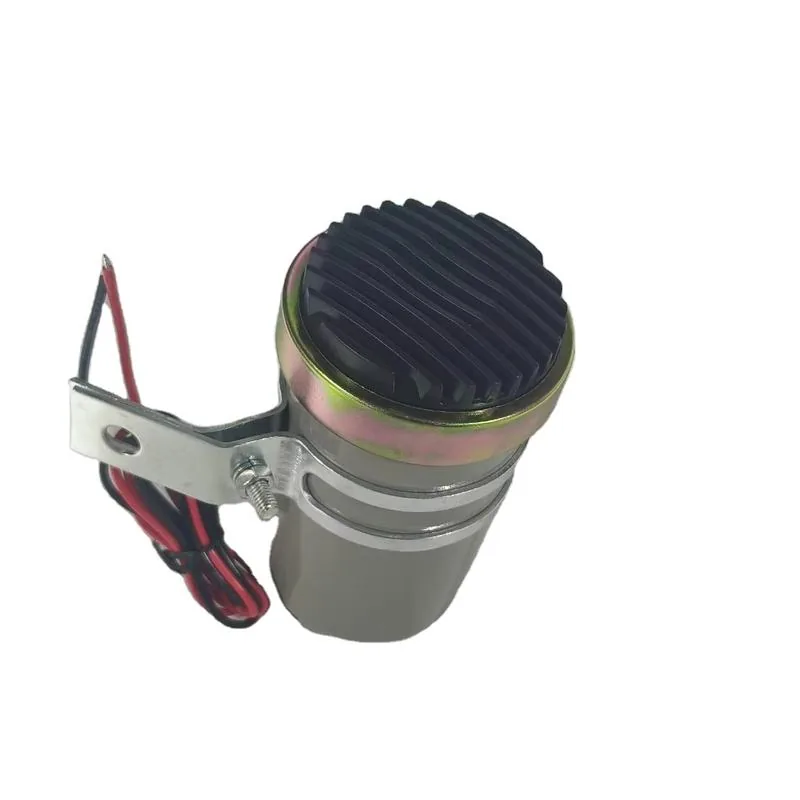

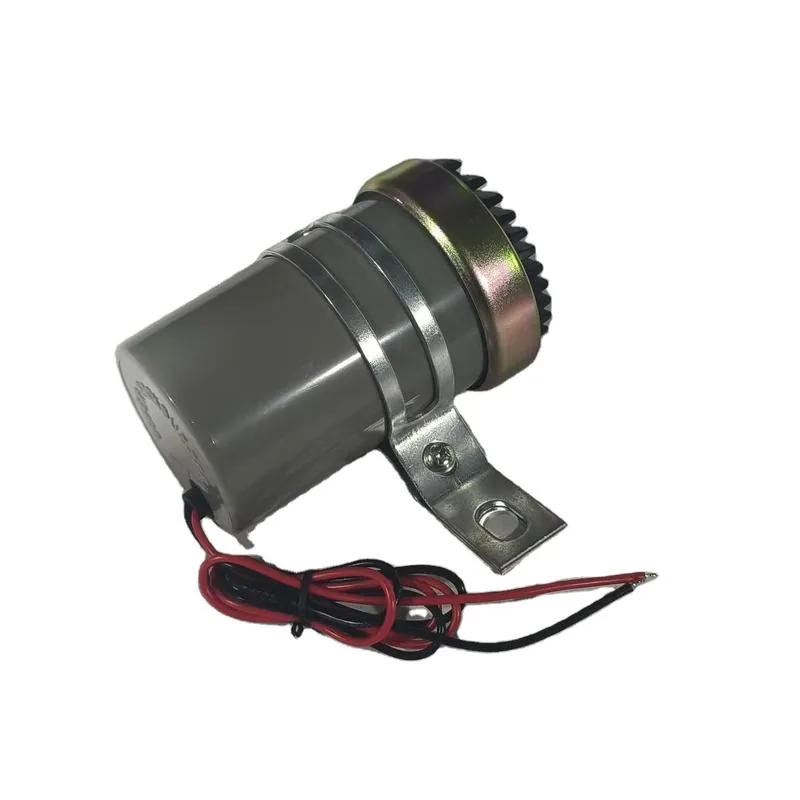

Installation: connect the buzzer to the forward movement signal wire from the directional switch or traction controller. The wide 12-80V input range eliminates the need for a voltage converter — it works directly on electric forklifts (24V/36V/48V/80V) and IC forklifts (12V/24V). Mount on the overhead guard or chassis frame using the included bracket with the horn opening facing forward for maximum sound projection. The buzzer draws minimal current and can be wired in parallel with existing warning light circuits.
Compatible with Toyota 7FG/7FD/7FB, Komatsu FD/FG/FB, HELI CPCD/CPD, CAT DP/EP, Mitsubishi FGC, Nissan FD, and Hangcha R series forklifts. OEM part numbers 36630-00160 and 821111 cross-reference to multiple forklift brands. Browse our complete forklift buzzer selection for reverse alarms and backup buzzers.
Technical Specifications
- SKU: 36630-00160
- OEM Part Numbers: 36630-00160, 821111
- Voltage: 12-80V DC (wide range)
- Sound Type: Ding-Dong (dual-tone forward warning)
- Model: LD19-N001G
- Brand: Kingstream
- Condition: New
- MOQ: 1 PCS
- Weight: 0.65 kg
- Origin: Anhui, China
Each buzzer is tested for sound output, voltage tolerance, and tone accuracy before packing. We ship worldwide within 24 hours — no minimum order. Send us your forklift model for confirmed compatibility →
Full Category Coverage
One supplier for all forklift systems — engine, hydraulic, electrical, mast, brake, undercarriage. No need to juggle multiple vendors.
No Minimum Order
Trial orders welcome. Single-piece to bulk supply. You test first, scale later. We treat every order seriously.
Three Quality Choices
Original, OEM, or Aftermarket. You decide based on budget and application. We don't upsell — you control cost and performance.
Direct 1-on-1 Communication
You talk to the sourcing decision maker. No sales reps, no forwarding. Faster answers, clearer quotes, real accountability.
Mixed Order Consolidation
Combine different parts in one shipment. Save on freight. We handle the picking, packing, and export documentation.
After-Sale Warranty
Manufacturing defects covered. Free replacement or credit arranged quickly. Your trust is worth more than any single transaction.
Same part, different brand numbers. This cross-reference table helps you confirm compatibility across multiple forklift brands. If your brand or part number is not listed, send it to us — we will match it.
| Brand | OEM Part Number | Notes |
|---|---|---|
| TOYOTA | 47201-23300 | Original |
| KOMATSU | 3EB-30-41200 | Original |
| HELI | 24022-83011 | Original |
| HANGCHA | R240-83011 | Original / OEM |
| LINDE | 0009830123 | OEM |
| HYSTER | H47201-233 | OEM |
| TCM | TCM-47201 | OEM |
| AFTERMARKET | AM-47201 | Cost-effective replacement |
Follow these four steps to get the fastest and most accurate quotation. The more details you provide, the quicker we can confirm compatibility and pricing.
Send Your Part Number or Forklift Information
Provide the OEM part number, a clear photo of the old part, or the forklift brand and model. Any one of these works. We'll use it to cross-match the correct part.
Tell Us Your Quality Preference and Quantity
Choose Original, OEM, or Aftermarket quality. Let us know how many pieces you need — a single trial unit or a bulk order. We'll quote accordingly.
Provide Your Destination and Shipping Preference
Tell us the destination country and preferred shipping method (sea freight, air freight, or express courier). This helps us calculate delivery time and cost accurately.
Combine Related Parts (Optional)
If you need other forklift parts, include them in the same inquiry. We support mixed order consolidation — less freight cost, less paperwork.
Request Forklift Parts Quotation
📦 Part Number
If you already have the OEM number or reference number, quotation and matching will usually be much faster.
🚜 Forklift Model or Serial
If the exact part number is not available, forklift model details can help narrow the correct product range.
📸 Product Photos
Clear old-part photos, labels or packaging images are useful when buyers need help confirming the correct part.
🌍 Quantity & Destination
Quantity, country and shipping terms help improve quotation structure for EXW, FOB or CIF comparison.
