Forklift Oil Filter Base WB202 — Mounting Adapter for 498 Engine Series

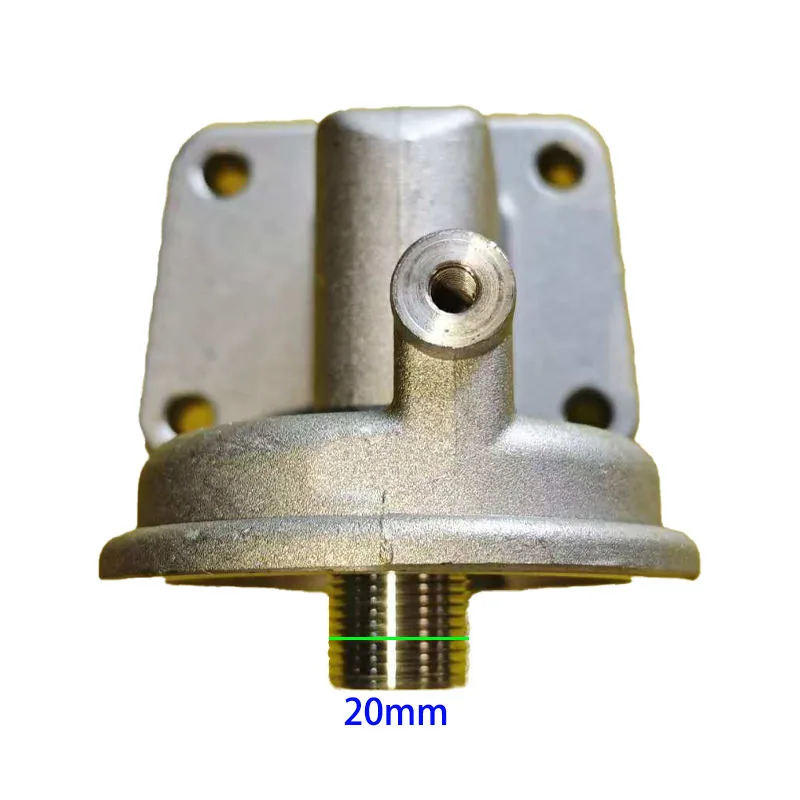

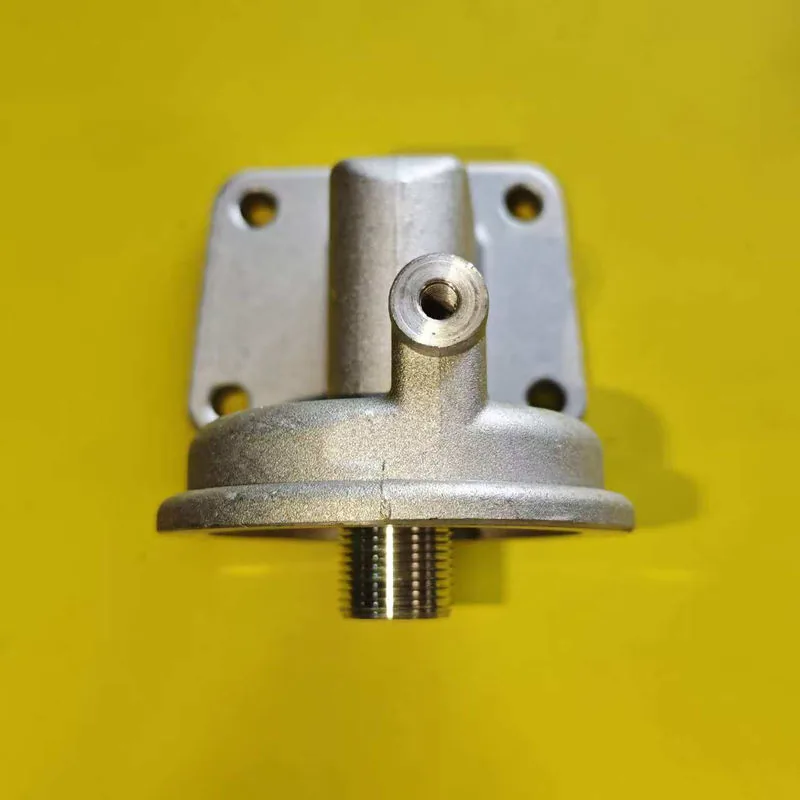

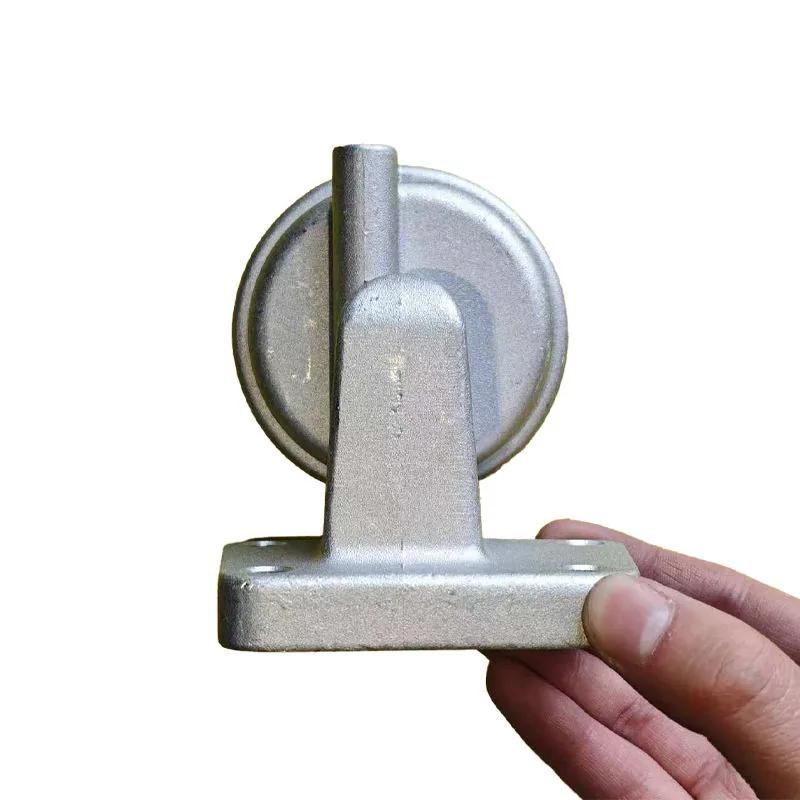

The WB202 oil filter base is the cast aluminum mounting adapter that bolts to the engine block and provides the threaded mounting surface and oil gallery connections for the spin-on oil filter. This base is specifically designed for the 498 series diesel engines (4.98L, 4-cylinder) used in Heli, Hangcha, and other Chinese forklifts in the 3-5 ton class. The base casting includes two critical features that distinguish it from generic automotive filter adapters: first, an integrated oil pressure relief bypass passage with a spring-loaded check ball that prevents oil filter drain-back when the engine is shut down — this is calibrated to the 498 engine’s oil gallery pressure of 2.0-2.5 bar at hot idle; second, a machined O-ring groove on the engine block mating face that uses a Viton O-ring (not a paper gasket) rated for continuous exposure to 15W-40 diesel engine oil at temperatures up to 120°C. The WB202 base uses a metric M20×1.5 filter thread — the same as the JX85100C filter — and is NOT compatible with the M24×1.5 thread used on older 495 engine series.

The most common reason for replacing an oil filter base is damage to the threaded filter nipple from over-tightening or cross-threading during filter changes. The nipple is machined from steel and pressed into the aluminum base casting; attempting to remove or replace just the nipple in the field will ovalize the aluminum bore and cause a permanent oil leak between the nipple and base. The entire base assembly must be replaced as a unit. When installing the new WB202 base, clean the engine block mating surface with a plastic scraper only — steel scrapers or wire wheels will gouge the aluminum and create leak paths. Apply a thin film of engine oil to the new Viton O-ring before installation (never use RTV silicone — silicone squeeze-out inside the oil passage can break loose and block an oil gallery). Torque the mounting bolts to 25-30 N·m in a diagonal pattern. After installation, start the engine and check for oil leaks at the base-to-block interface within the first 30 seconds of operation — this is when oil pressure is highest before the oil warms and thins. Common failure symptoms: oil leak at the filter base-to-block joint (hardened or pinched O-ring), oil pressure warning light flickering at idle (internal bypass check ball stuck open), and filter that is difficult to remove (galled steel nipple threads from a previous cross-threaded filter installation).

The WB202 filter base fits 498 diesel engines in Heli CPCD30-CPCD50, Hangcha CPCD30-CPCD50, and other Chinese forklifts using the 498 engine platform. Verify the mounting bolt pattern (4-bolt square, 78mm center-to-center) and the filter thread size (M20×1.5) before ordering. For related engine components and compatible oil filters, visit our Forklift Maintenance Parts section.

Technical Specifications

• Part Number: WB202
• Engine Platform: 498 Series (4.98L, 4-Cylinder Diesel)
• Material: Cast Aluminum with Steel Filter Nipple
• Filter Thread: M20×1.5 (Metric)

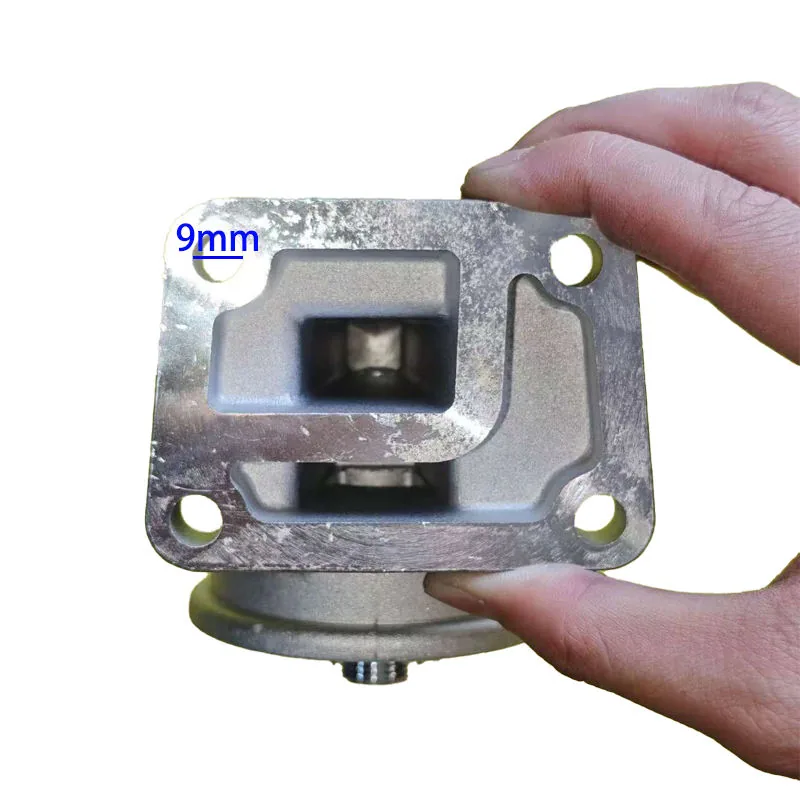

• Mounting Bolt Pattern: 4-Bolt Square, 78mm Center-to-Center
• Block Seal: Viton O-Ring (Not Paper Gasket)

Compatible Forklift Models

Each filter base is inspected for nipple thread integrity and O-ring groove flatness, packed in protective foam, and ships within 1-2 business days. 12-month warranty. Browse our Forklift Maintenance Parts catalog.
