Forklift Inching Valve — 3-Ton Micro Valve for Hydraulic Transmission Clutch Control

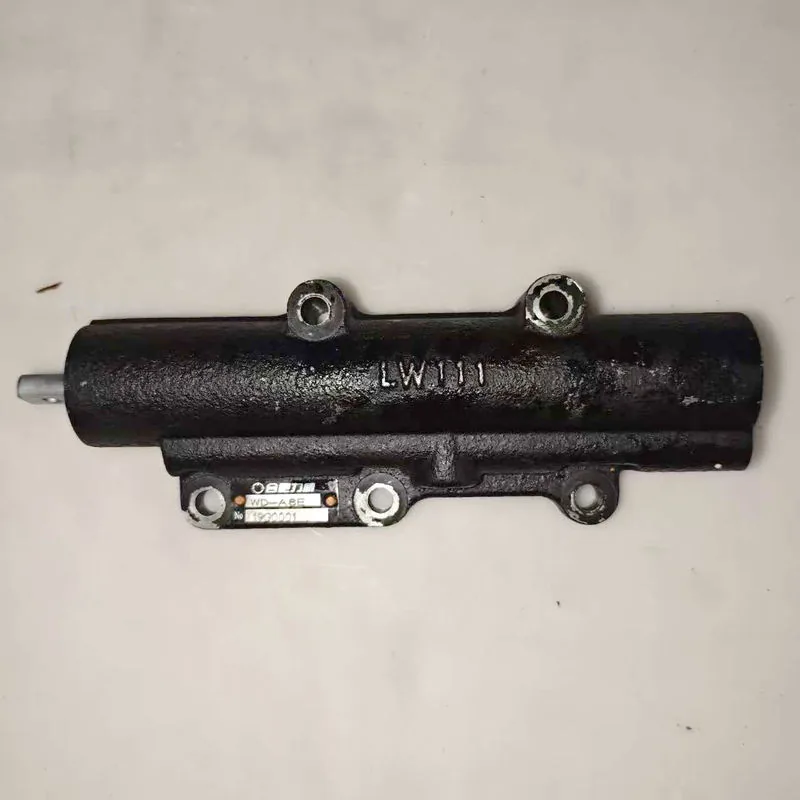

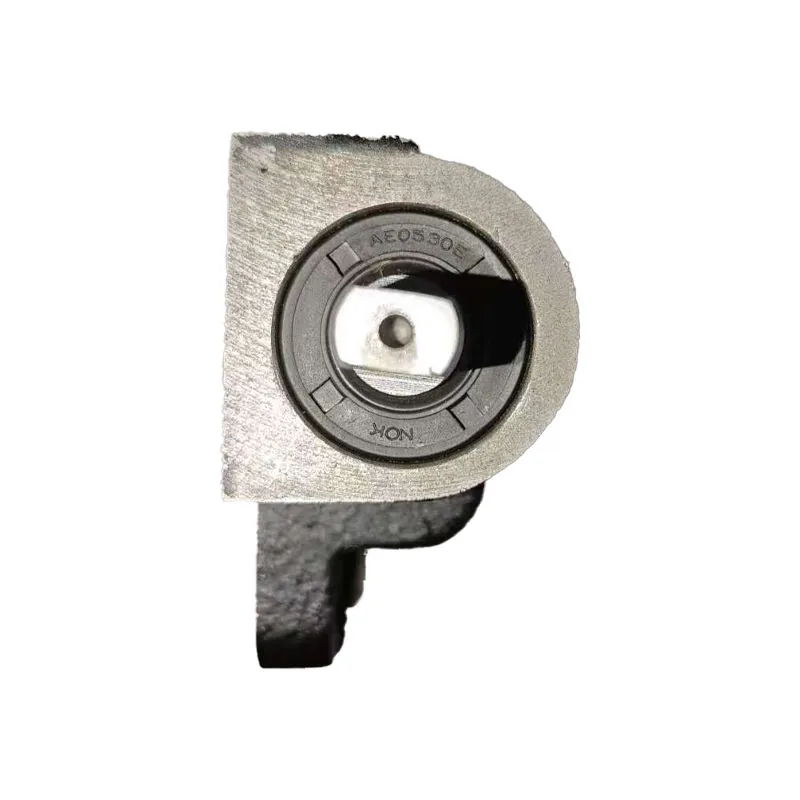

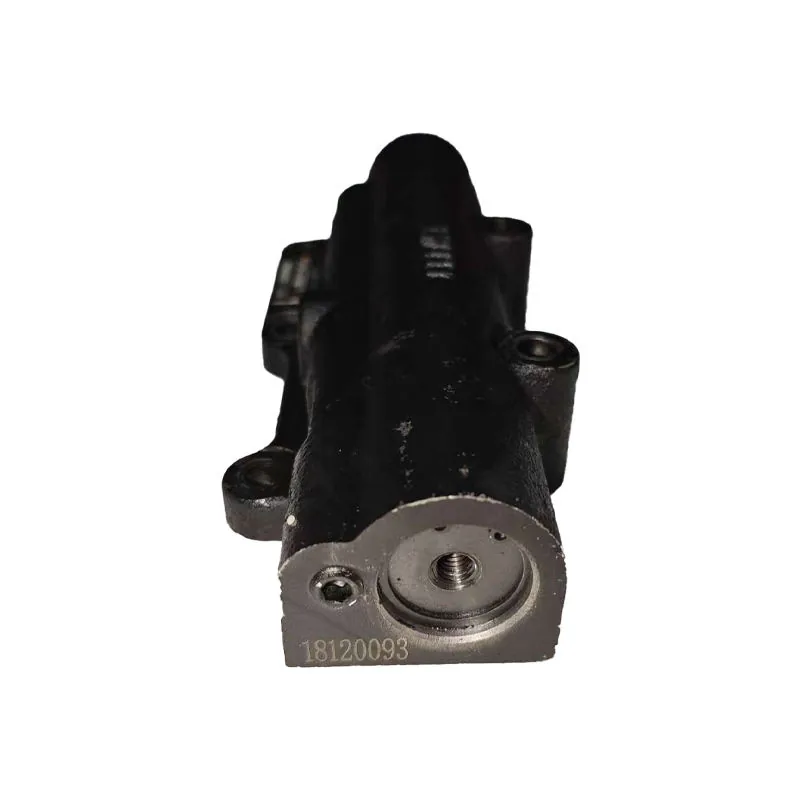

This inching valve (also called a micro valve or clutch modulation valve) is a hydraulic control component for 3-ton forklift power shift transmissions. Installed in the transmission control circuit between the directional control valve and the clutch pack, the inching valve allows the operator to progressively disengage the transmission clutch by partially depressing the left-hand brake/inching pedal — enabling precise low-speed maneuvering (inching) without fully disengaging the transmission. Unlike the on/off action of the directional control valve, the inching valve modulates the clutch pack hydraulic pressure from full engagement (12-15 bar) down to approximately 2-3 bar as the pedal is depressed, providing a controllable “slip” zone that allows the forklift to move at creep speeds of 0.1-0.5 km/h — essential for precise fork positioning during pallet engagement. The valve spool is matched to its bore with a clearance of 3-5 microns, and the spool is fitted with PTFE wear bands to prevent spool-to-bore contact that would cause internal leakage and inconsistent clutch modulation.

The most critical aspect of inching valve adjustment is setting the clutch engagement point relative to the brake pedal travel. The inching valve linkage must be adjusted so that clutch disengagement begins when the pedal is depressed approximately 15-20mm from its rest position — if the valve begins disengaging the clutch too early (pedal movement of less than 10mm), the clutch will slip during normal foot placement on the pedal, causing accelerated clutch wear and transmission overheating. If the valve engages too late (pedal movement greater than 30mm), the operator loses the fine control range needed for precision inching. The adjustment is made at the threaded clevis on the valve actuating rod — each full turn of the clevis changes the engagement point by approximately 3mm of pedal travel. After adjustment, the clutch pack pressure must be verified with a pressure gauge at the clutch test port: 12-15 bar at full pedal release, decreasing linearly to 2-3 bar at approximately 70% pedal travel. Common failure symptoms: forklift lurches forward when brake pedal is lightly touched (valve spool sticking in the engaged position), transmission overheating during extended inching operations (valve not fully modulating pressure, clutch constantly in partial slip), and inconsistent inching behavior — sometimes smooth, sometimes jerky (spool bore wear causing internal leakage path).

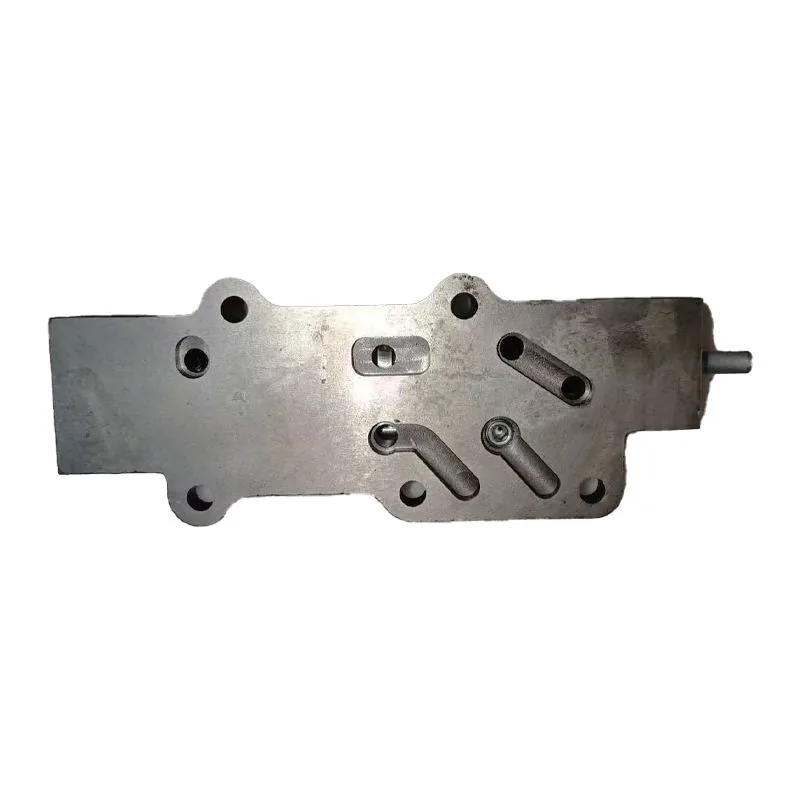

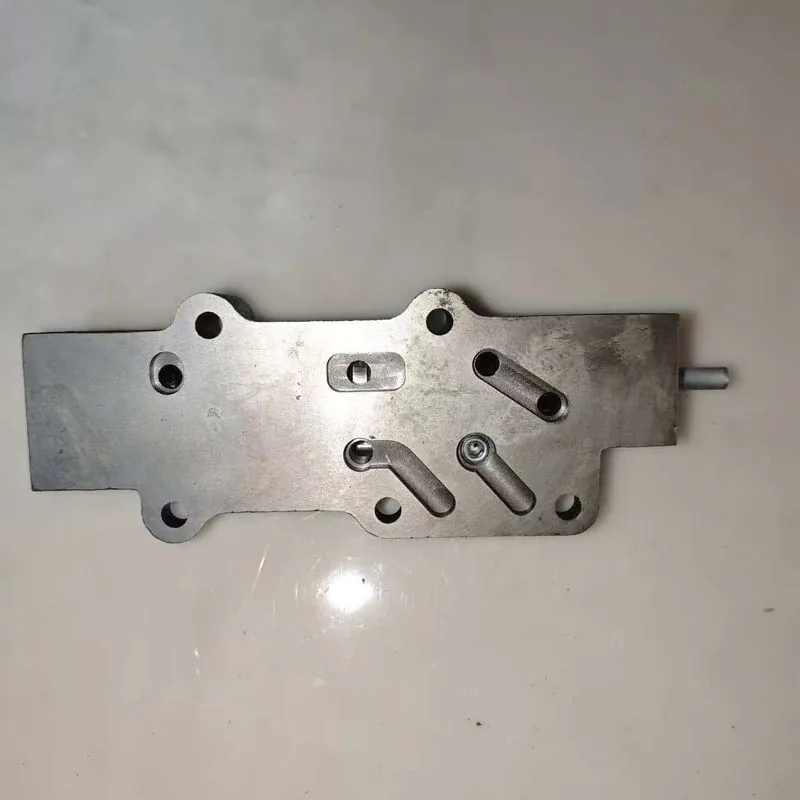

This inching valve fits 3-ton forklifts with power shift transmissions, including Heli CPCD30, Hangcha CPCD30, and TCM FD30 models. Verify the valve mounting bolt pattern and hydraulic port thread sizes before ordering. For related transmission control components, visit our Forklift Hydraulic Transmission section.

Technical Specifications

• Valve Type: Inching Valve / Clutch Modulation Valve
• Spool Clearance: 3-5 Microns (Matched Set)
• Pressure Range: 2-15 bar (Linear Modulation)
• Pedal Engagement Point: 15-20mm from Rest Position
• Adjustment Sensitivity: ~3mm Pedal Travel per Clevis Turn
• Application: 3-Ton Power Shift Forklifts

Compatible Forklift Models

Each valve is pressure-tested for linear modulation curve, packed in protective packaging, and ships within 1-2 business days. 12-month warranty. Browse our Forklift Hydraulic Transmission catalog.
