Forklift Hydraulic Multi-Way Valve CDB2-F15 — 2-Link Directional Control Valve for 1-3 Ton Forklifts

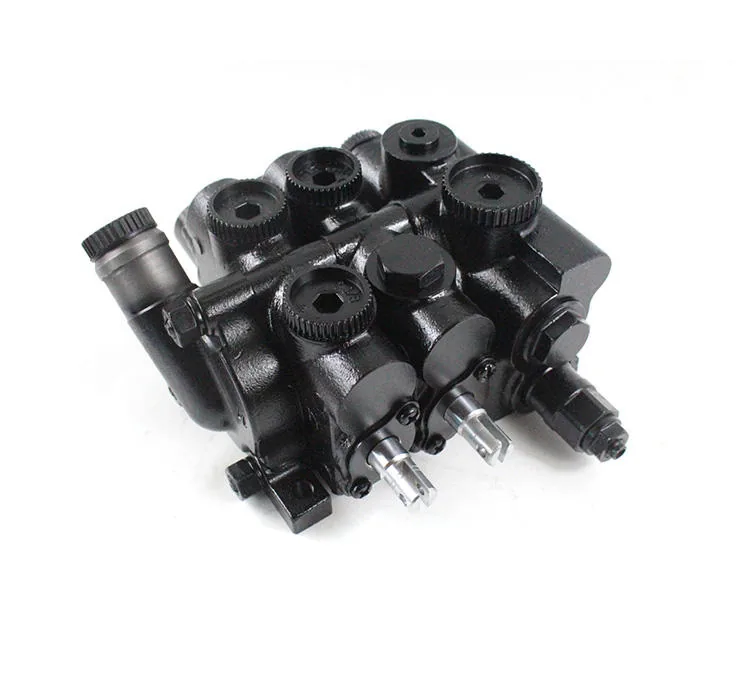

The CDB2-F15 is a two-link (two-spool) hydraulic multi-way directional control valve specifically designed for 1-3 ton forklift mast hydraulic systems. “Two-link” refers to the two independent spool sections — one for the lift cylinder control and one for the tilt cylinder control — which are the two primary hydraulic functions on a standard forklift mast. Each spool is a spring-centered, open-center design with a manual lever actuator, and the valve body is a monoblock (single-piece) cast iron construction with integrated load check valves on each work port to prevent cylinder drift when the spool is in the neutral position. The F15 designation indicates a nominal flow capacity of 15 L/min per spool section, which matches the hydraulic pump output of 1-3 ton forklifts (typically 12-18 L/min at governed engine speed). The spool metering notches are machined with a progressive opening profile that provides fine control in the first 30% of lever travel — essential for precise fork positioning when engaging pallets at low height.

The most common multi-way valve failure is internal spool-to-bore leakage caused by contaminated hydraulic oil. The CDB2-F15 has spool-to-bore clearances of 8-12 microns — any particle larger than this trapped in the clearance will score the spool or bore, creating a leakage path that causes the lift cylinder to drift down (typically 50-100mm in 10 minutes with the engine off when the leakage exceeds the acceptable limit). The load check valve poppet and seat can also be damaged by hydraulic shock (water hammer) from the lift cylinder reaching its end-of-stroke — this shock can reach 300-400 bar instantaneously, far exceeding the valve’s 250 bar rated pressure. When installing a replacement valve, the hydraulic system must be flushed to ISO 4406 18/16/13 cleanliness before connecting the new valve — installing an expensive precision valve into a contaminated system guarantees premature failure. The spool linkage must be adjusted so that both spools return to the neutral (center) position with positive spring feel — a spool that does not fully return to center will leave the work port partially open, causing continuous pump flow through the relief valve and hydraulic oil overheating within 15-20 minutes of operation. Common failure symptoms: lift cylinder drifts down more than 100mm in 10 minutes with engine off (internal spool leakage), tilt cylinder “chatters” during tilt-back operation (worn spool metering notches), and hydraulic oil temperature exceeding 80°C within 30 minutes of operation (relief valve continuously bypassing due to spool not returning to neutral).

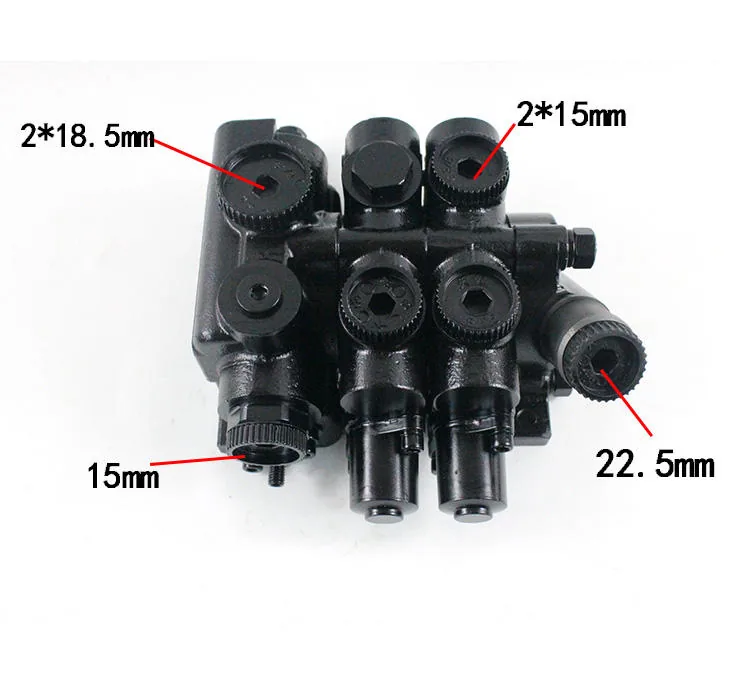

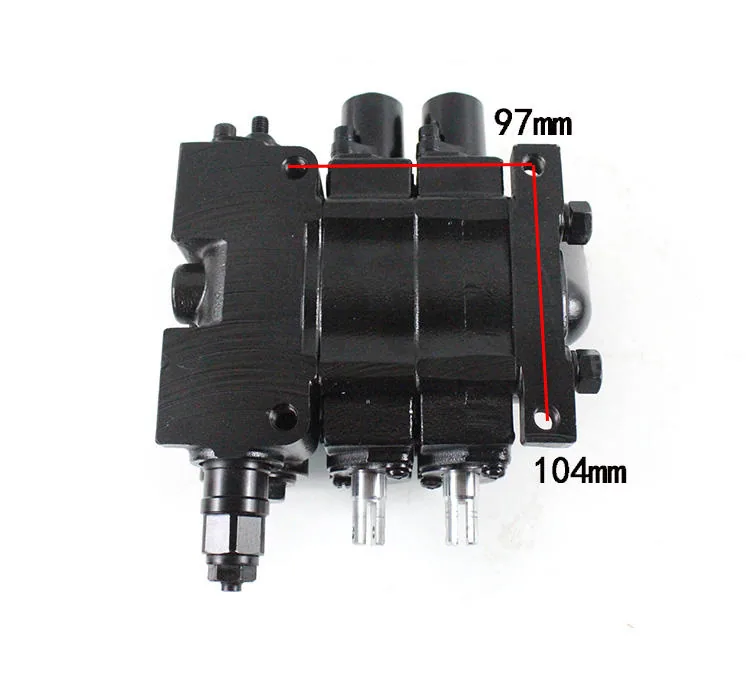

This CDB2-F15 multi-way valve fits 1-3 ton forklifts including Heli CPCD10-CPCD30, Hangcha CPCD10-CPCD30, and TCM FD15-FD30. Verify the valve mounting bolt pattern and hydraulic port sizes before ordering. For related hydraulic components, visit our Forklift Hydraulic Components section.

Technical Specifications

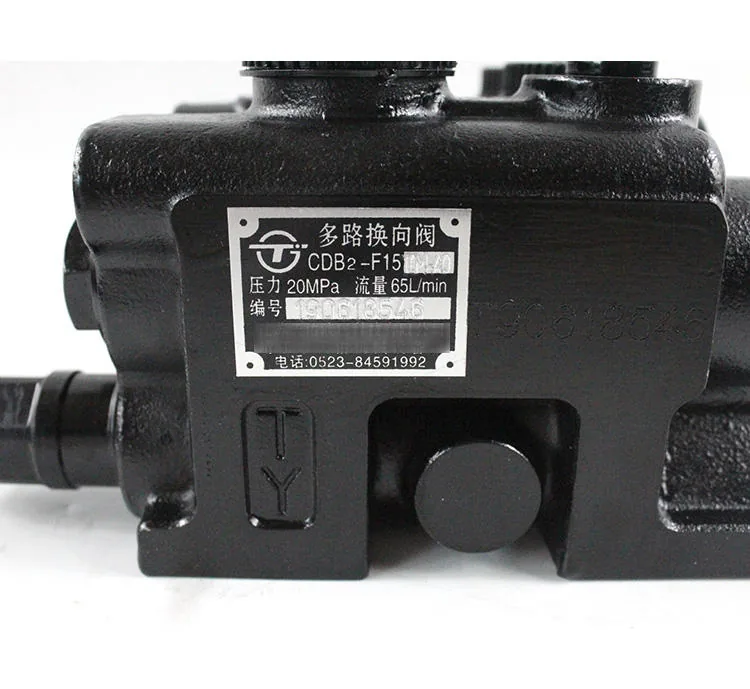

• Part Number: CDB2-F15
• Valve Type: 2-Spool Monoblock Directional Control Valve
• Spool Configuration: Lift + Tilt (Spring-Centered, Open-Center)
• Flow Capacity: 15 L/min per Spool
• Max Pressure: 250 bar Rated (Integrated Relief Valve)
• Application: 1-3 Ton Forklifts

Compatible Forklift Models

Each valve is pressure-tested for spool leakage and relief valve setting, packed in protective packaging, and ships within 1-2 business days. 12-month warranty. Browse our Forklift Hydraulic Components catalog.
