Forklift Seat Belt C.R.04.06303G – 1-10T Telescopic Normally Closed Signal Cable

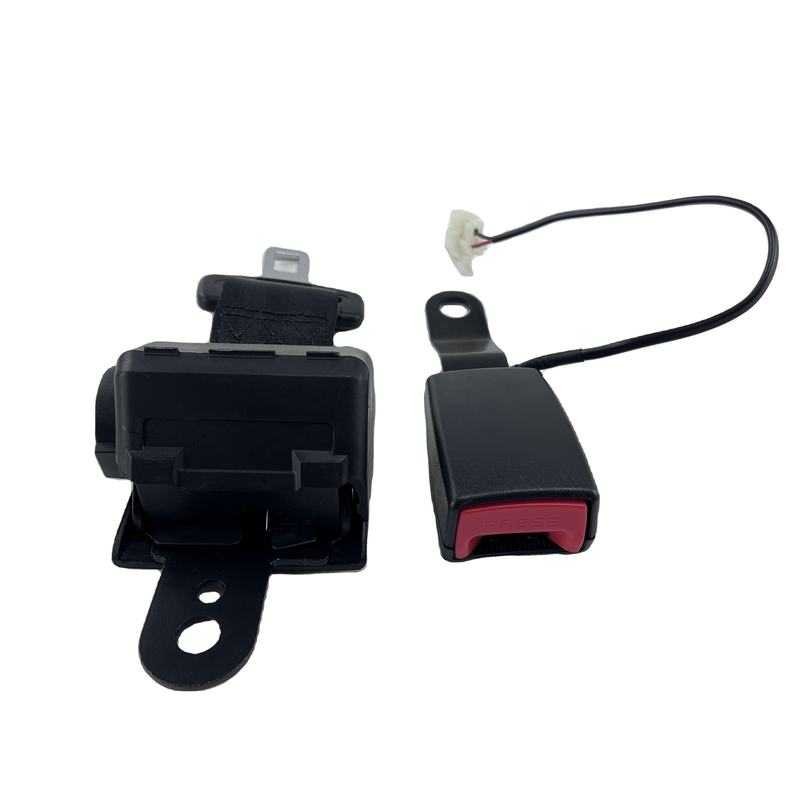

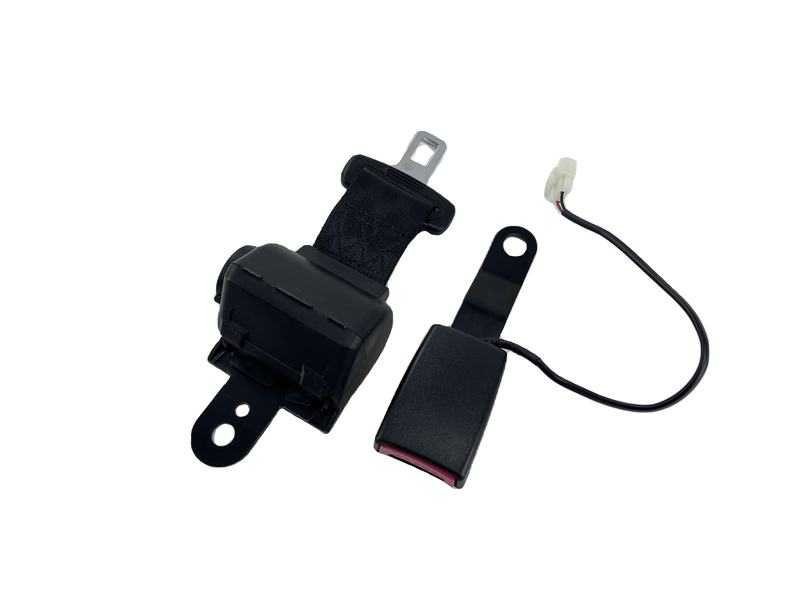

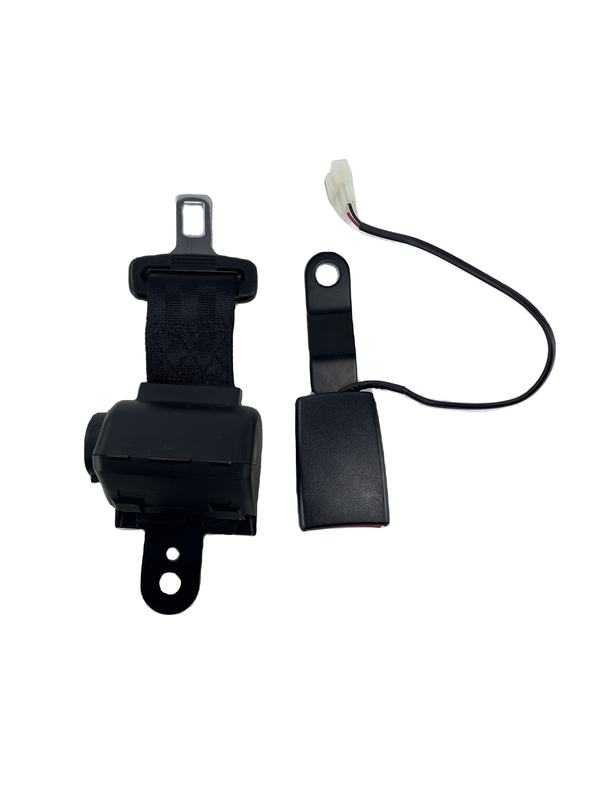

Forklift Seat Belt C.R.04.06303G — Telescopic Normally Closed Signal Cable Safety Belt for 1-10 Ton Forklift Trucks

This forklift seat belt part number C.R.04.06303G is an Kingstream OEM telescopic safety belt with normally closed signal cable, designed for 1-10 ton forklift trucks in machinery repair, retail, and construction environments. This seat belt incorporates a normally closed electrical signal circuit — a safety interlock feature that prevents the forklift from being operated unless the seat belt is properly fastened. When the belt is unbuckled, the normally closed signal circuit remains open, interrupting the drive control circuit so the forklift cannot move. When the belt is fastened, the circuit closes, enabling normal vehicle operation. This interlock is increasingly required by workplace safety regulations and corporate safety policies to enforce seat belt compliance — a critical safety measure given that the single most effective protection during a forklift tip-over is the operator remaining restrained within the protective envelope of the overhead guard rather than being ejected or attempting to jump clear. The telescopic design allows the belt to extend and retract automatically, providing the operator with freedom of movement during normal operation while maintaining proper restraint. Compatible with all types of forklifts across the 1-10 ton range. Each belt is high quality with neutral export box packaging. MOQ 1 piece with OEM customization available. 20kg gross weight with 35×30×20cm packaging dimensions.

Installing the C.R.04.06303G signal cable seat belt requires mounting the retractor and anchor points to the seat frame or chassis structure, and connecting the normally closed signal cable to the forklift’s drive control interlock circuit. The signal cable must be wired in series with the drive contactor coil or traction controller enable circuit — when the belt is unfastened (circuit open), the drive system is disabled. After installation, the interlock function must be verified: with the belt unfastened, the forklift must not move in either forward or reverse direction regardless of accelerator pedal input. With the belt fastened, normal drive operation must be restored. For forklifts operating in multi-shift environments, the signal cable and buckle switch contacts should be inspected periodically for wear — the normally closed circuit design is fail-safe (an open circuit prevents operation), but a welded-closed switch contact could bypass the interlock and must be identified during scheduled safety inspections. OEM available for fleet standardization across 1-10 ton forklifts.

Browse our complete Forklift Seat Belt category for 2-point ELR retractable belts, industrial seat belts, and safety interlock solutions. For Kingstream OEM fleet seat belt programs and custom signal cable configurations, contact us.

Technical Specifications

Compatible Equipment

High quality. Kingstream OEM. Neutral export box packaging. MOQ 1 piece. For bulk orders, contact us.
