35HB Forklift Parts Accessories Tilt Cylinder Hydraulic Cylinder Assembly
$129.99
35HB Double-Acting Tilt Cylinder Assembly for 3-5T forklifts. Honed bore, chrome rod, PU lip seals. Replace as matched pair. Worldwide freight from Kingstream.

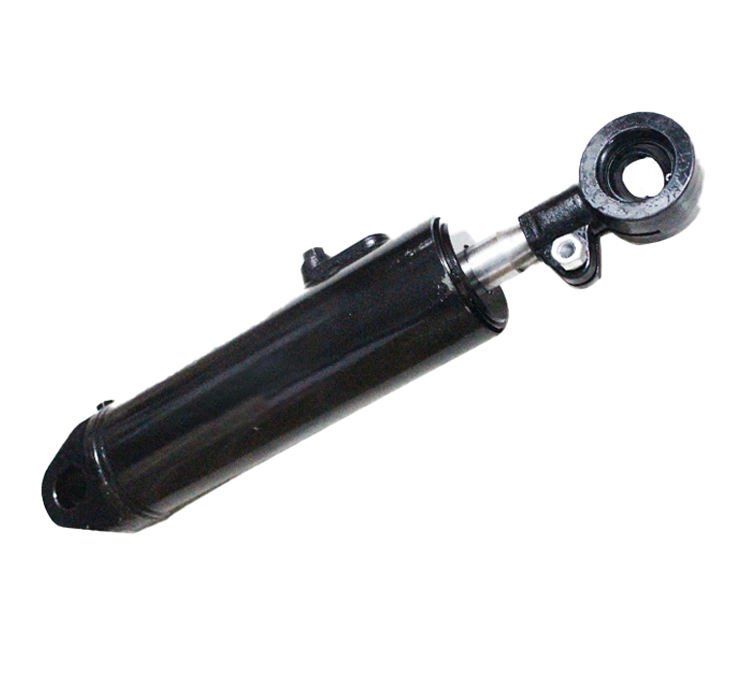

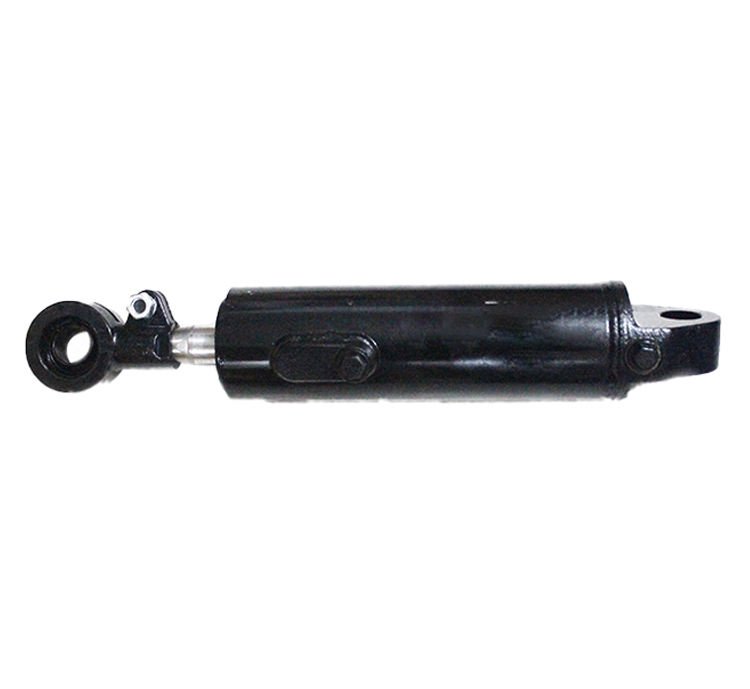

35HB Hydraulic Tilt Cylinder Assembly for Forklift
The 35HB tilt cylinder is a double-acting hydraulic cylinder assembly that controls the mast tilt angle on 3-5T diesel and LPG forklifts — hydraulic pressure powers both the extend (mast tilt forward) and retract (mast tilt back) strokes. As a complete cylinder assembly including the cylinder body, piston, rod, seals, and mounting eyes, the 35HB tilt cylinder is a direct bolt-on replacement for worn, leaking, or bent original cylinders. Tilt cylinders operate in pairs — one on each side of the mast — and a leaking piston seal on one side causes uneven tilt, mast twist, and accelerated carriage roller wear. Always replace tilt cylinders as a matched pair — the new cylinder seal friction differs from the old, causing one side to extend faster than the other and producing jerky, uneven tilt.
Built with a honed steel cylinder bore, hard-chrome plated piston rod, and double-acting polyurethane lip seals, the 35HB tilt cylinder provides consistent tilt operation at working pressures up to 2,500 PSI. For lift cylinders, seals, and hydraulic components, browse our forklift hydraulic components.

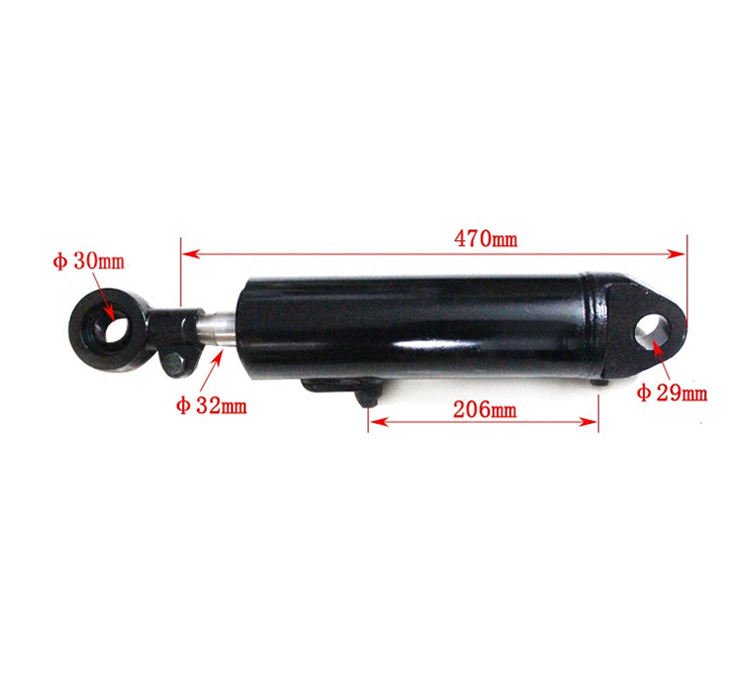

Technical Specifications
- SKU: 35HB-TILT-CYL
- Type: Double-acting tilt cylinder assembly
- Cylinder Body: High-strength steel, honed bore
- Piston Rod: Hard-chrome plated
- Seals: Double-acting PU lip seals
- Fitment: 3-5T forklift mast tilt circuit
Compatible Forklift Brands
| Brand | Models |
|---|---|
| HELI | CPCD30-50 3T-5T |
| Hangcha | CPCD30-50 series |
| Dalian | CPCD 3T-5T |
Each 35HB tilt cylinder ships with ports capped and rod protected. For tilt cylinder specifications, consult Baldwin Filters. Kingstream stocks the 35HB — worldwide freight shipping with online tracking.
Brand
LINDE
Full Category Coverage
One supplier for all forklift systems — engine, hydraulic, electrical, mast, brake, undercarriage. No need to juggle multiple vendors.
No Minimum Order
Trial orders welcome. Single-piece to bulk supply. You test first, scale later. We treat every order seriously.
Three Quality Choices
Original, OEM, or Aftermarket. You decide based on budget and application. We don't upsell — you control cost and performance.
Direct 1-on-1 Communication
You talk to the sourcing decision maker. No sales reps, no forwarding. Faster answers, clearer quotes, real accountability.
Mixed Order Consolidation
Combine different parts in one shipment. Save on freight. We handle the picking, packing, and export documentation.
After-Sale Warranty
Manufacturing defects covered. Free replacement or credit arranged quickly. Your trust is worth more than any single transaction.
Same part, different brand numbers. This cross-reference table helps you confirm compatibility across multiple forklift brands. If your brand or part number is not listed, send it to us — we will match it.
| Brand | OEM Part Number | Notes |
|---|---|---|
| TOYOTA | 47201-23300 | Original |
| KOMATSU | 3EB-30-41200 | Original |
| HELI | 24022-83011 | Original |
| HANGCHA | R240-83011 | Original / OEM |
| LINDE | 0009830123 | OEM |
| HYSTER | H47201-233 | OEM |
| TCM | TCM-47201 | OEM |
| AFTERMARKET | AM-47201 | Cost-effective replacement |
Follow these four steps to get the fastest and most accurate quotation. The more details you provide, the quicker we can confirm compatibility and pricing.
Send Your Part Number or Forklift Information
Provide the OEM part number, a clear photo of the old part, or the forklift brand and model. Any one of these works. We'll use it to cross-match the correct part.
Tell Us Your Quality Preference and Quantity
Choose Original, OEM, or Aftermarket quality. Let us know how many pieces you need — a single trial unit or a bulk order. We'll quote accordingly.
Provide Your Destination and Shipping Preference
Tell us the destination country and preferred shipping method (sea freight, air freight, or express courier). This helps us calculate delivery time and cost accurately.
Combine Related Parts (Optional)
If you need other forklift parts, include them in the same inquiry. We support mixed order consolidation — less freight cost, less paperwork.
Request Forklift Parts Quotation
📦 Part Number
If you already have the OEM number or reference number, quotation and matching will usually be much faster.
🚜 Forklift Model or Serial
If the exact part number is not available, forklift model details can help narrow the correct product range.
📸 Product Photos
Clear old-part photos, labels or packaging images are useful when buyers need help confirming the correct part.
🌍 Quantity & Destination
Quantity, country and shipping terms help improve quotation structure for EXW, FOB or CIF comparison.
