Forklift Accelerator HXJS-1210 – Hall Effect

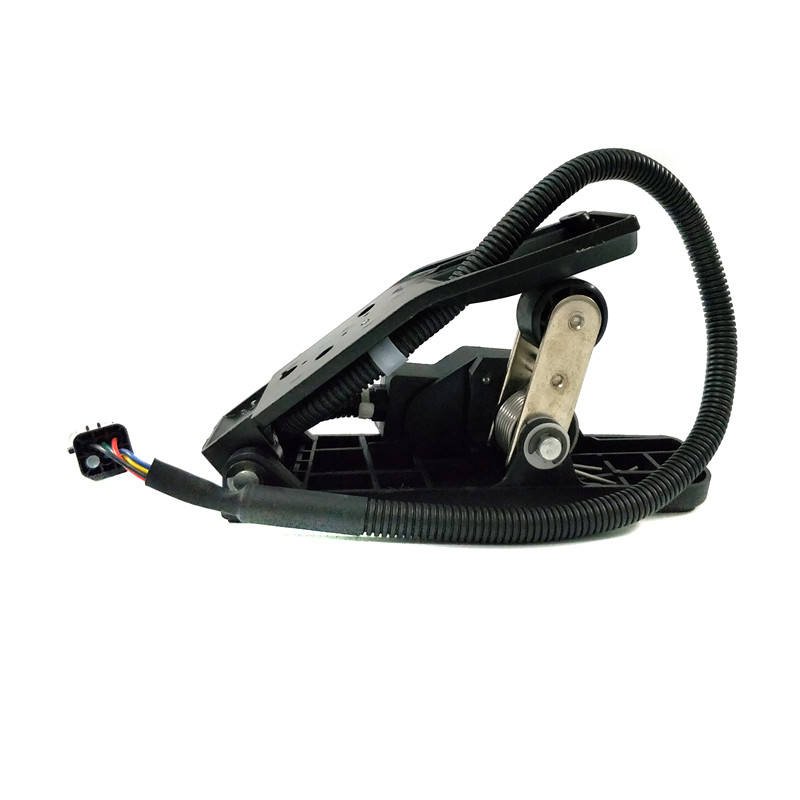

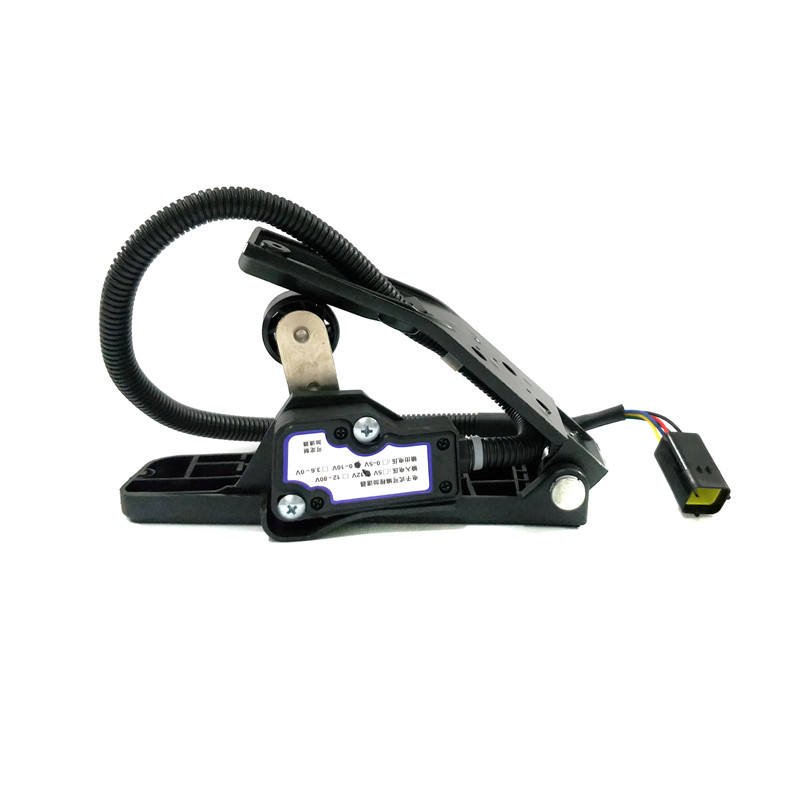

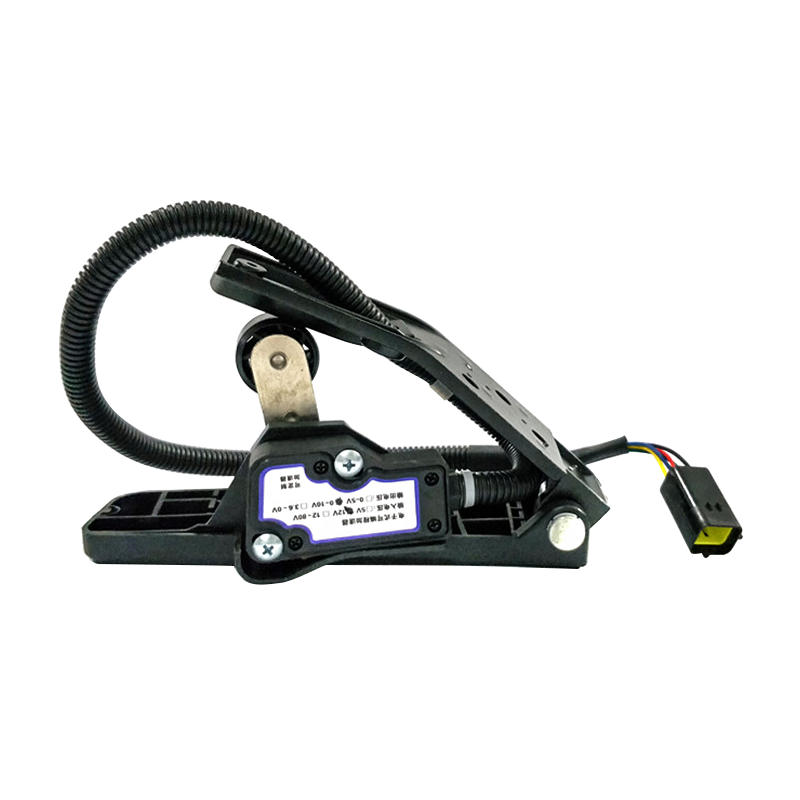

Forklift Accelerator HXJS-1210 — Hall Effect Foot Pedal for Electric Forklift Trucks

This forklift accelerator model HXJS-1210 (Kingstream reference A.F.08.0201) is a Kingstream OEM Hall effect foot pedal for electric forklift trucks in building material, machinery repair, and retail environments. The Hall effect accelerator uses a magnetic sensor to detect pedal position — as the pedal is pressed, a magnet moves relative to a Hall effect sensor, generating a proportional voltage signal that the motor controller interprets as the commanded speed. Unlike potentiometer-based pedals that wear from mechanical wiper contact, Hall effect sensors have no physical contact between moving parts, providing longer service life and more reliable operation in dusty and high-vibration environments. 0.68kg with neutral export box packaging. MOQ 1 piece with customized color options. Kingstream OEM quality for electric forklift fleet operators.

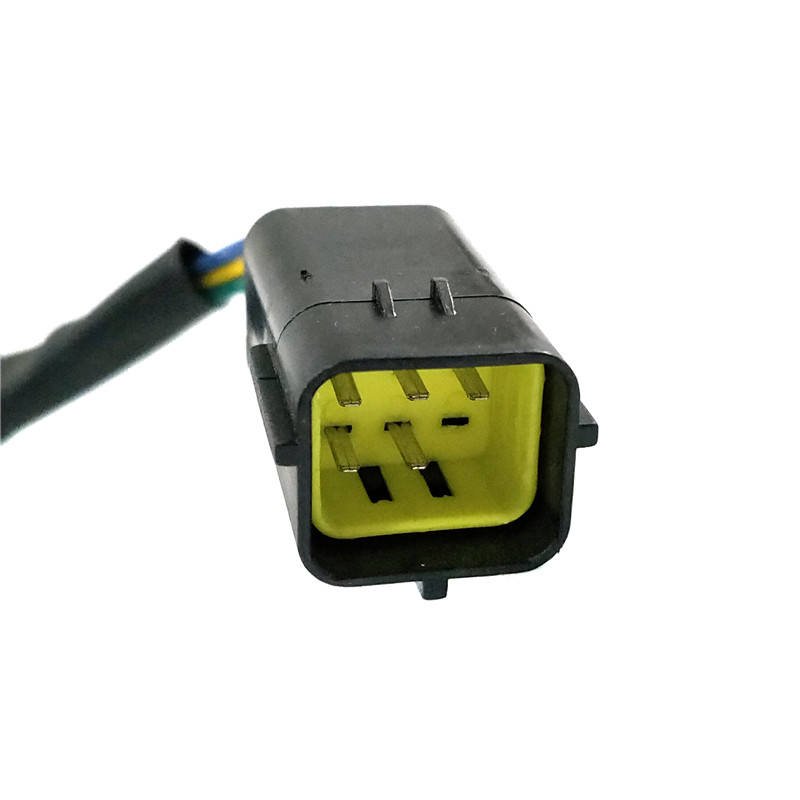

Installing the HXJS-1210 Hall effect accelerator pedal on an electric forklift requires mounting the pedal assembly in the operator footwell position, connecting the three-wire signal harness (typically +5V reference, ground, and 0-5V or 0-10V signal output) to the motor controller throttle input, and calibrating the controller to recognize the pedal’s output voltage range. The Hall effect sensor provides a contactless position measurement — as the pedal is depressed, a permanent magnet moves linearly or rotationally relative to the Hall sensor chip, which outputs a voltage proportional to the magnetic field strength. This voltage is linear with pedal position: typically 0.5V at rest (fully released) and 4.5V at full throttle, with the 0.5V offset providing a failsafe — if the controller sees 0V (open circuit or sensor failure), it immediately cuts motor power rather than interpreting the fault as a closed-throttle command. After installation, verify the pedal output voltage sweeps smoothly from minimum to maximum without dead spots, jumps, or erratic readings. A failing Hall accelerator causes intermittent speed control, unexpected acceleration or deceleration, or complete loss of throttle response — any of which creates a safety hazard in warehouse operations. The Hall effect design eliminates the wear-prone potentiometer wiper track, providing 10x longer service life in the dusty, high-vibration footwell environment. MOQ 1 piece with neutral export box packaging and customized color options. Kingstream OEM quality for electric forklift fleet operators.

Technical Specifications

MOQ 1 piece. Neutral export box. Customized colors. Kingstream OEM. For bulk orders, contact us.
