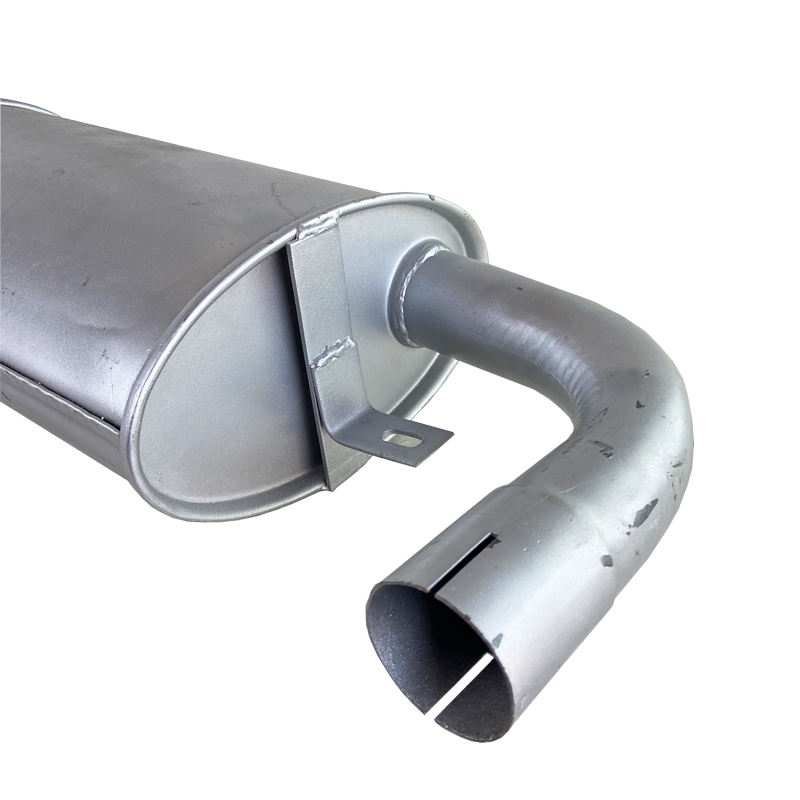

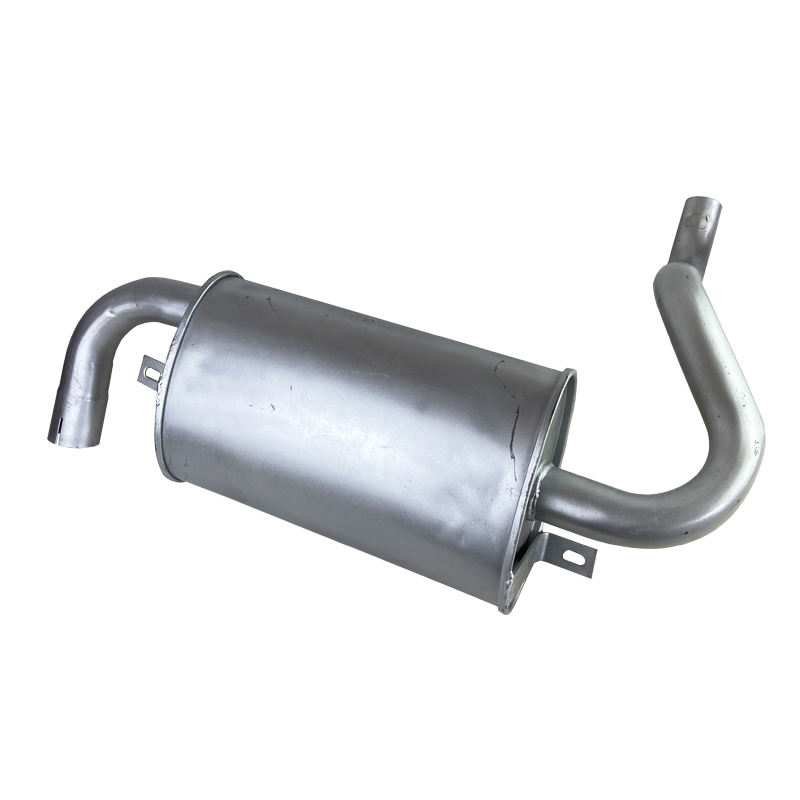

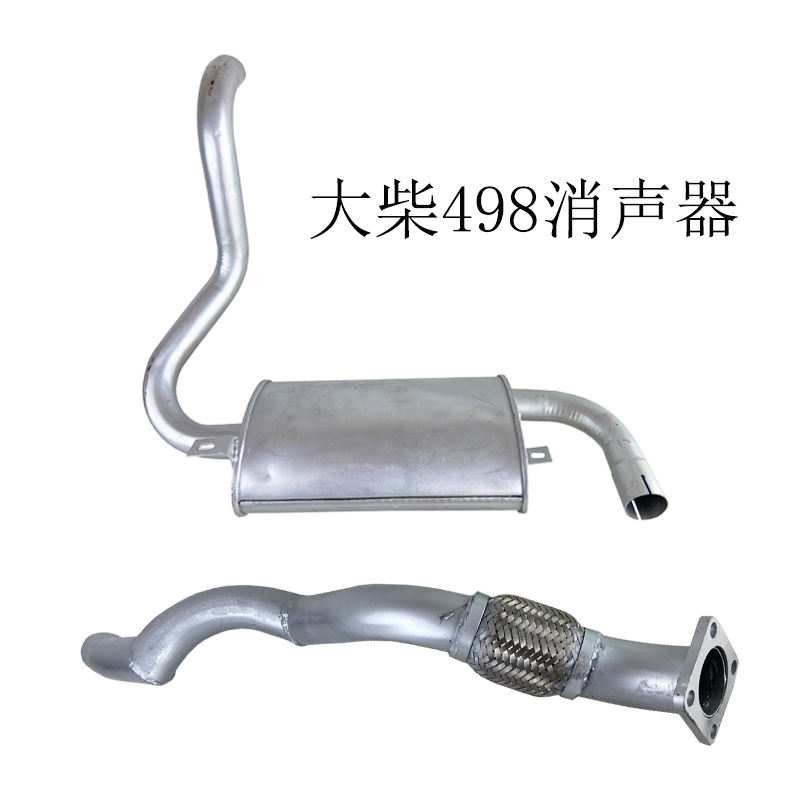

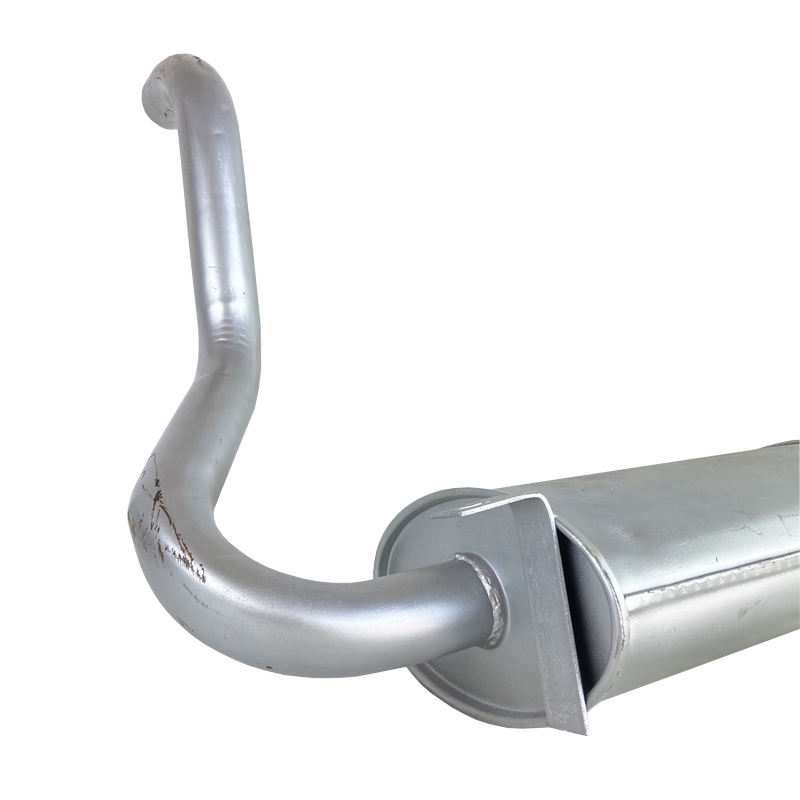

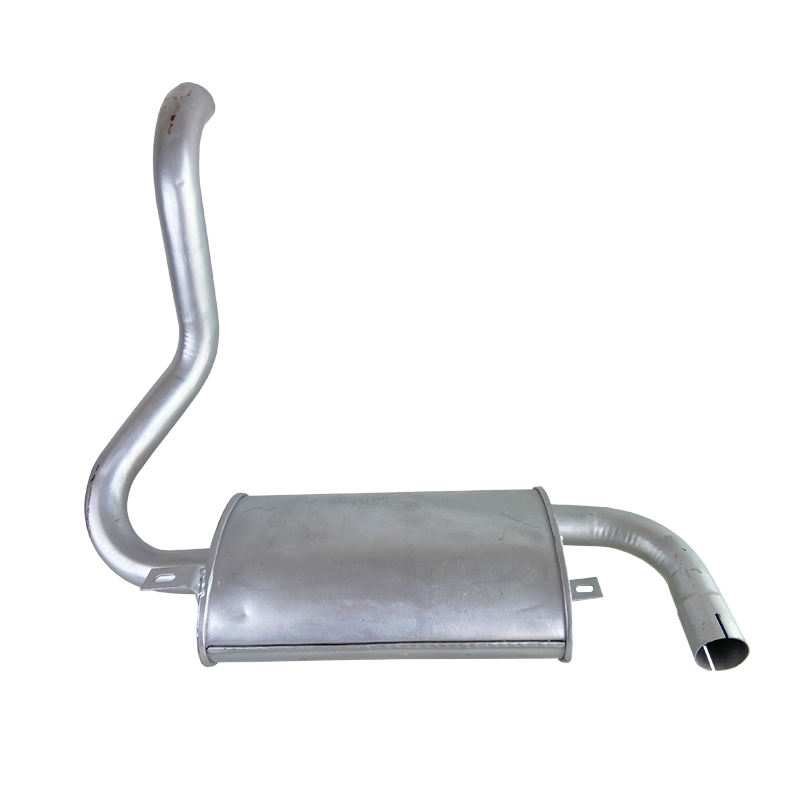

Forklift Muffler – Heli H2000 498 Engine A90A2-30301

Forklift Muffler — A90A2-30301 / K9FL2-30301 Reactive Exhaust Silencer for Heli H2000 498 Diesel Engine, 2-3.5 Ton Forklift

This forklift muffler is a reactive-type exhaust silencer designed for Heli H2000 series 2-3.5 ton diesel forklifts equipped with the 498 diesel engine. It cross-references multiple OEM part numbers — A90A2-30301, K9FL2-30301, H24C2-30401, and AF932-30301 — covering Heli H2000, H2000N, CPCD20-35, and other Heli diesel models using the XinChai 490, Dachai 498, Kubota V2403/V3600, Nissan K21/K25, C240PKJ, and 4JG2 engine families. The reactive muffler uses an expansion chamber and resonant cavity design to attenuate exhaust noise in the mid-frequency band — the dominant noise range of 4-cylinder diesel engines operating at 1500-2500 RPM under load. Without a functional muffler, a diesel forklift engine produces 90-105 dB of exhaust noise, well above the 85 dB OSHA permissible exposure limit that requires hearing protection. A failed muffler — internally rusted baffles, blown-out chamber walls, or perforated outer shell from corrosion — not only exceeds noise regulations but also alters engine backpressure, causing reduced power, increased fuel consumption, and elevated exhaust gas temperatures that can damage valves and turbocharger components on turbocharged variants. The 498 engine muffler is constructed from aluminized steel with robot-welded seam construction for corrosion resistance against exhaust condensation — diesel exhaust contains sulfuric acid from fuel sulfur content that aggressively attacks mild steel. The multi-chamber internal baffle design attenuates sound across frequencies from low-end rumble to high-frequency valve noise without restricting exhaust flow, maintaining the precise backpressure the engine requires for rated power output. Each unit is high-temperature silver powder coated for heat resistance and corrosion protection. Weighs approximately 4.17kg (varies by exact variant). Kingstream OEM-grade quality at market-competitive pricing.

Installing the muffler requires removing the old unit from the exhaust manifold flange and tail pipe connection. The muffler bolts directly to the engine exhaust manifold on one end — through the flange gasket that must be replaced simultaneously to ensure a gas-tight seal — and connects to the tail pipe on the other end using standard exhaust clamps. Before installation, inspect the exhaust manifold studs for corrosion or stripping; on older Heli H2000 forklifts, manifold studs frequently seize and snap during removal, requiring extraction and replacement. Apply anti-seize compound to the new studs before reassembly. The flange gasket surface on the exhaust manifold must be cleaned of old gasket material and corrosion scale to ensure a flat sealing surface — a leaking flange gasket allows hot exhaust gas to bypass the muffler entirely, defeating the noise reduction and potentially directing 400-600°C exhaust gas onto nearby wiring, hoses, and hydraulic lines. After installation, start the engine and verify no exhaust leaks at either connection point by listening for a characteristic ticking or hissing sound, or by holding a piece of paper near the joints — any fluttering indicates a leak. Test the forklift under full load to confirm the muffler provides adequate noise attenuation without creating excessive backpressure that would manifest as power loss during lifting and travel.

Browse our complete Forklift Muffler category for additional exhaust silencers for XinChai 490, Dachai 498, TCM Z5-N5-H20, and other diesel forklift engine applications. For Heli H2000 fleet exhaust system replacement programs, contact us.

Technical Specifications

Compatible Forklift Models & Engines

Kingstream OEM-grade quality. For bulk fleet orders, contact us.
