Forklift Torque Converter JY323 – DaLian 5-8T Transmission

Forklift Torque Converter JY323 — DaLian 5-8 Ton Forklift Transmission Torque Converter Assembly

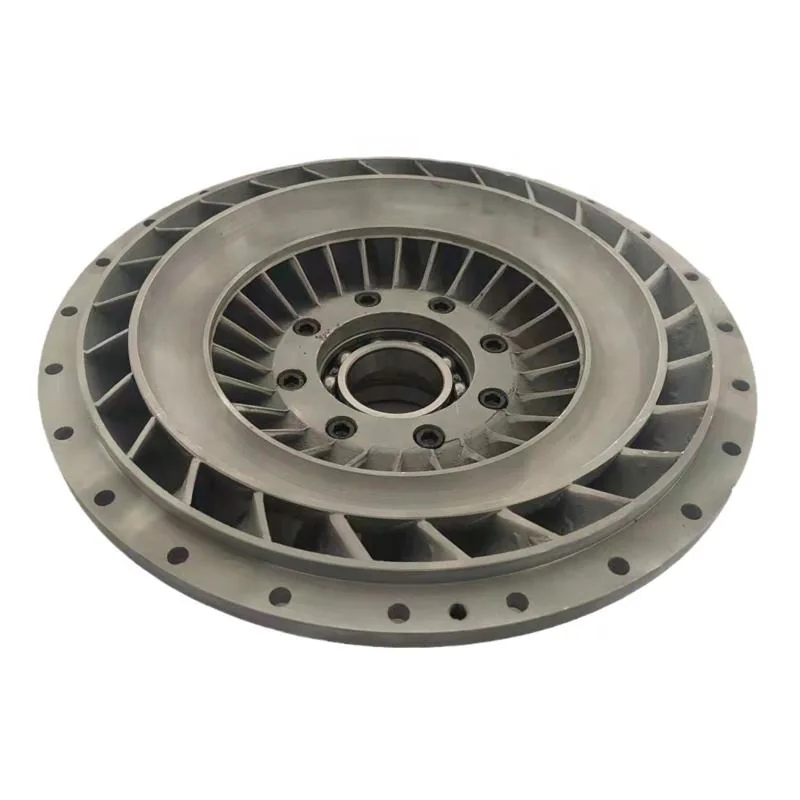

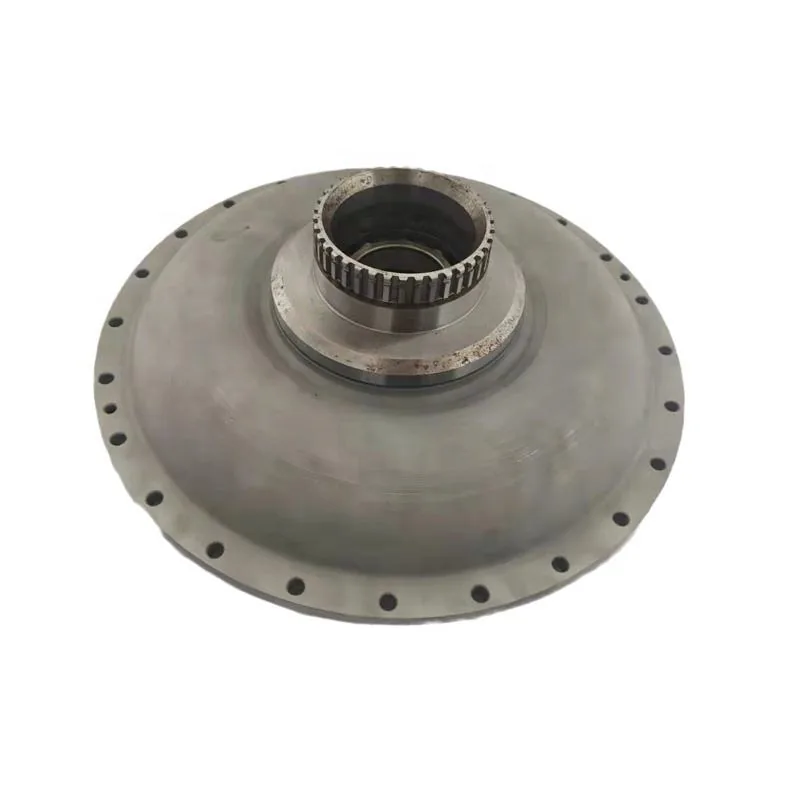

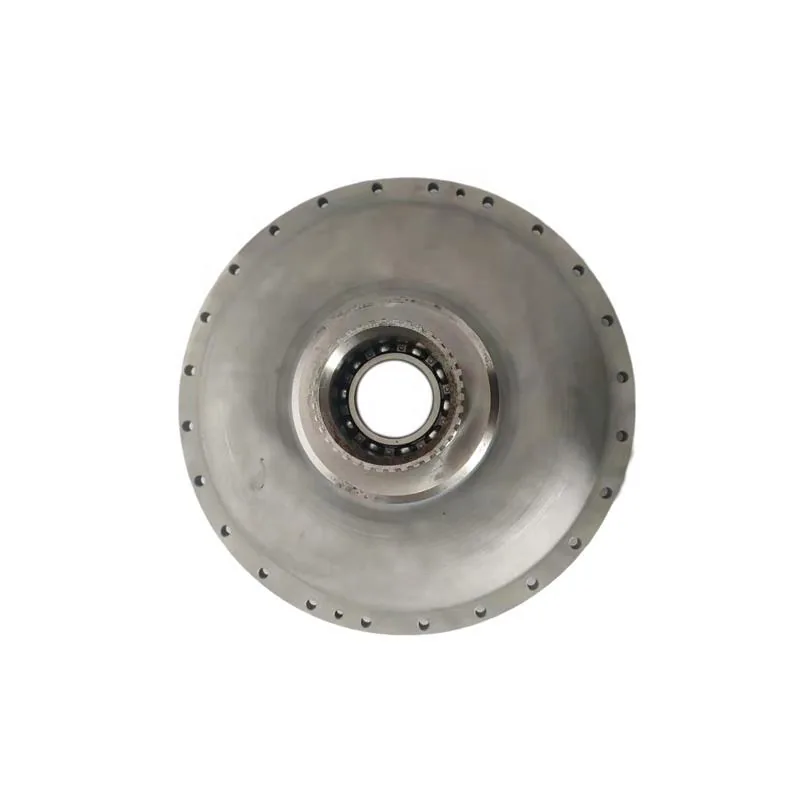

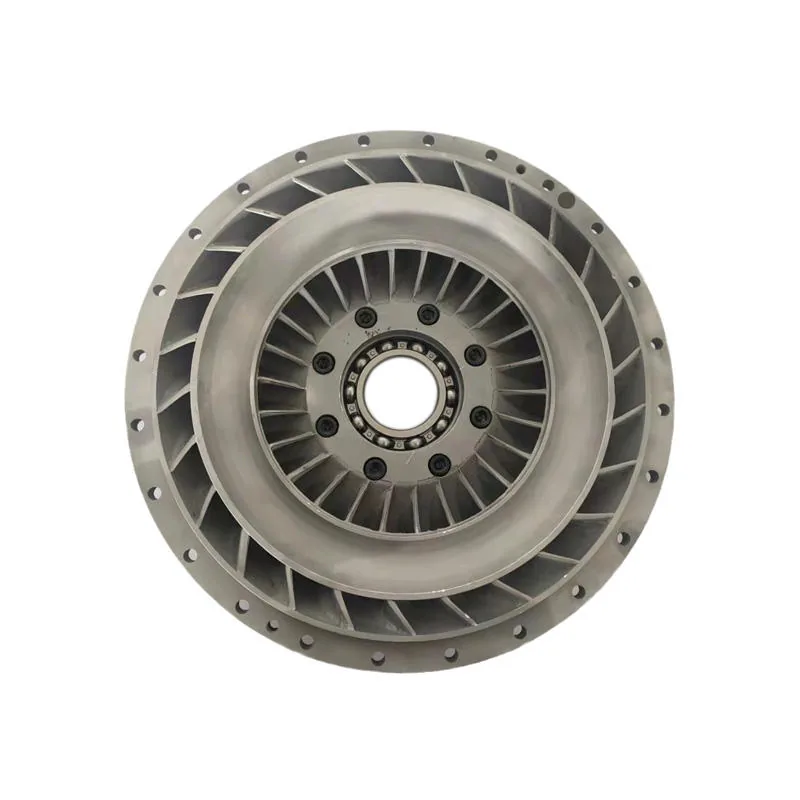

This forklift torque converter model JY323 is a Kingstream OEM transmission torque converter for DaLian 5-8 ton forklift trucks in construction, manufacturing, port, logistics, warehousing, mining, and heavy material handling environments. The torque converter is the fluid coupling between the engine and the transmission that multiplies engine torque during acceleration — it uses a pump (impeller) driven by the engine flywheel, a turbine connected to the transmission input shaft, and a stator that redirects oil flow to multiply torque. Unlike a mechanical clutch, the torque converter provides infinitely variable torque multiplication without driver input, enabling smooth starting under heavy load and automatic speed matching. 8kg with 40×40×13cm carton box packaging. 100% professional tested. 7-10 day delivery. Kingstream OEM quality for DaLian 5-8 ton forklift fleet transmission maintenance.

INSTALLATION PROCEDURE: Step 1 — Remove the transmission from the forklift. Step 2 — Separate the torque converter from the transmission input shaft — note the converter may be bolted to the engine flywheel or the transmission depending on the forklift design. Step 3 — Drain the torque converter of transmission fluid. Step 4 — Inspect the flywheel flex plate for cracks or warping — replace if damaged. Step 5 — Inspect the transmission input shaft seal — replace while the converter is removed. Step 6 — Fill the new torque converter with clean automatic transmission fluid before installation — this prevents dry startup damage. Step 7 — Align the converter hub with the transmission input shaft and pump drive. The converter should seat fully with a distinct “double-click” as it engages the pump drive and input shaft splines. Step 8 — Measure the distance from the converter mounting pads to the bell housing face — compare to specification to verify full seating. Step 9 — Bolt the converter to the flywheel flex plate using new bolts with thread locker. Step 10 — Reinstall the transmission. Step 11 — Refill transmission fluid to correct level. Step 12 — Start the engine and check for abnormal converter noise, vibration, or fluid leaks. 100% professional tested. Kingstream OEM.

SYMPTOMS OF TORQUE CONVERTER FAILURE: Transmission overheating, shuddering or vibration during acceleration, stalling when engaging drive or reverse, metallic noise from the converter housing, contaminated transmission fluid (dark color, burnt smell), and slipping under load. For DaLian 5-8 ton forklift fleet transmission maintenance, contact us. Kingstream OEM.

Technical Specifications

100% professional tested. Kingstream OEM. Contact us.
