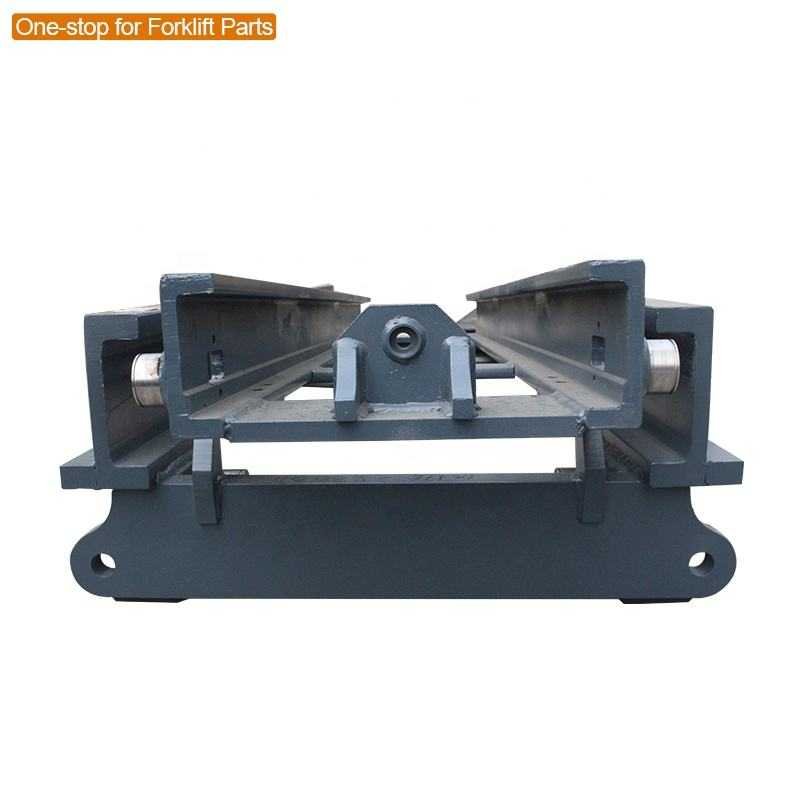

HELI-Custom Forklift Spare Parts Assembly 2ton 3ton 5ton Double Thriplex Manufacture Forklift Mast

Forklift Mast Assembly — Duplex/Triplex, 2T to 5T

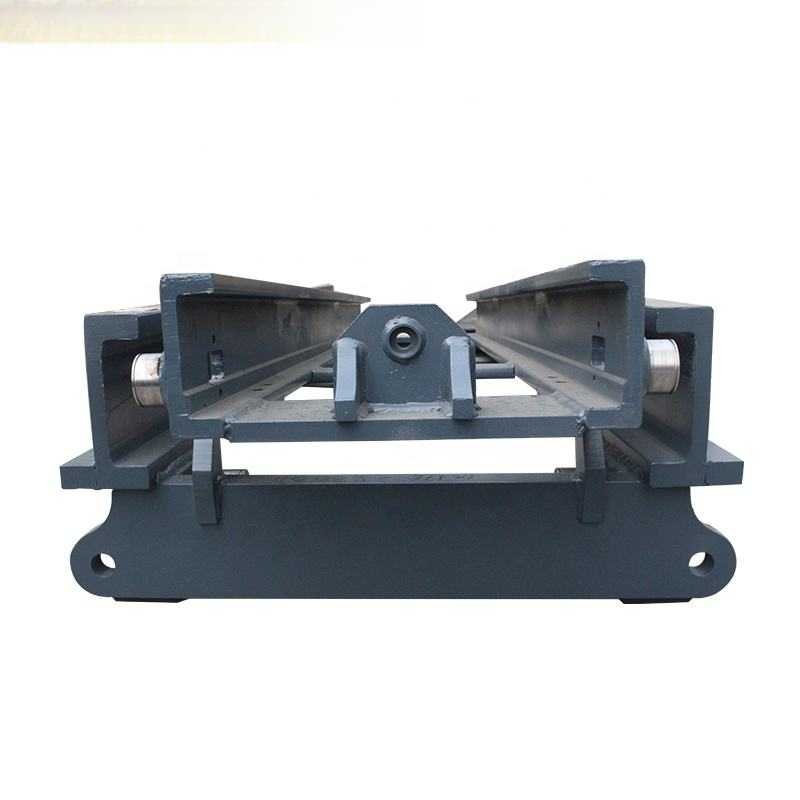

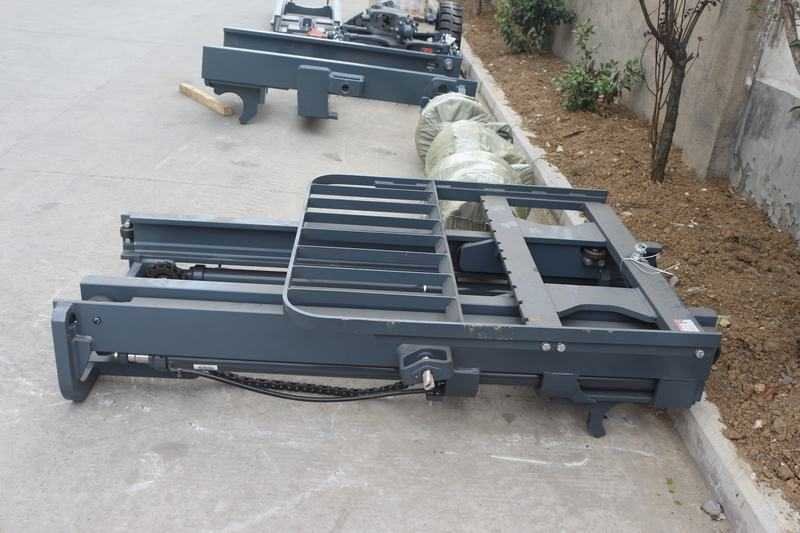

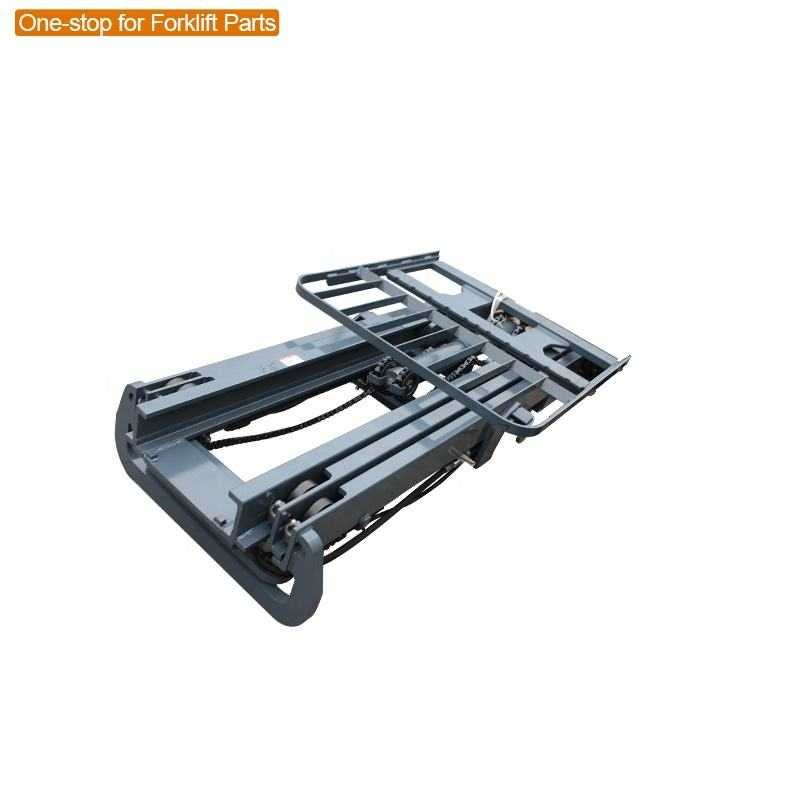

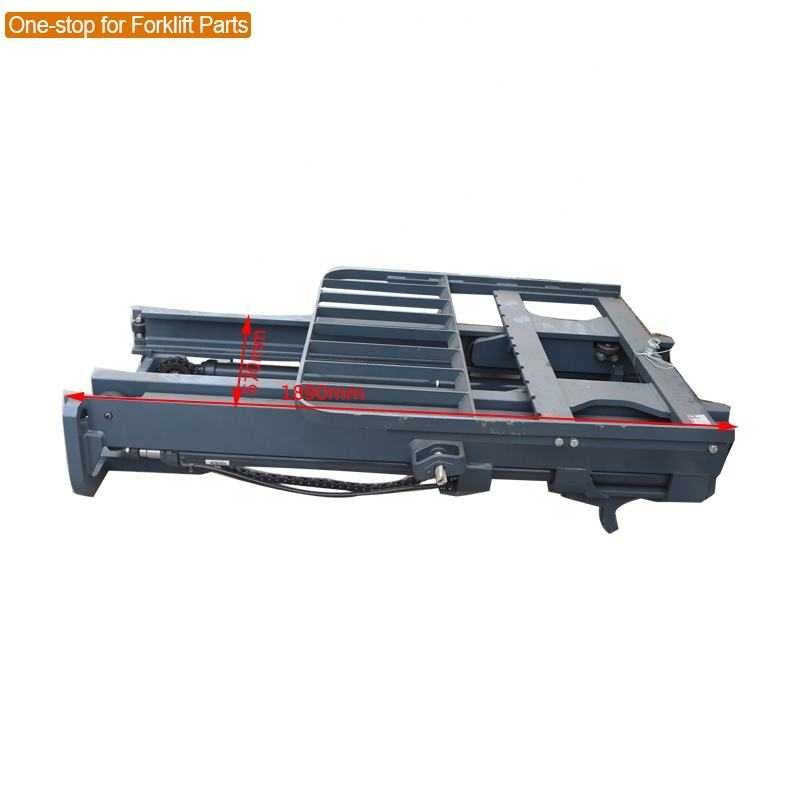

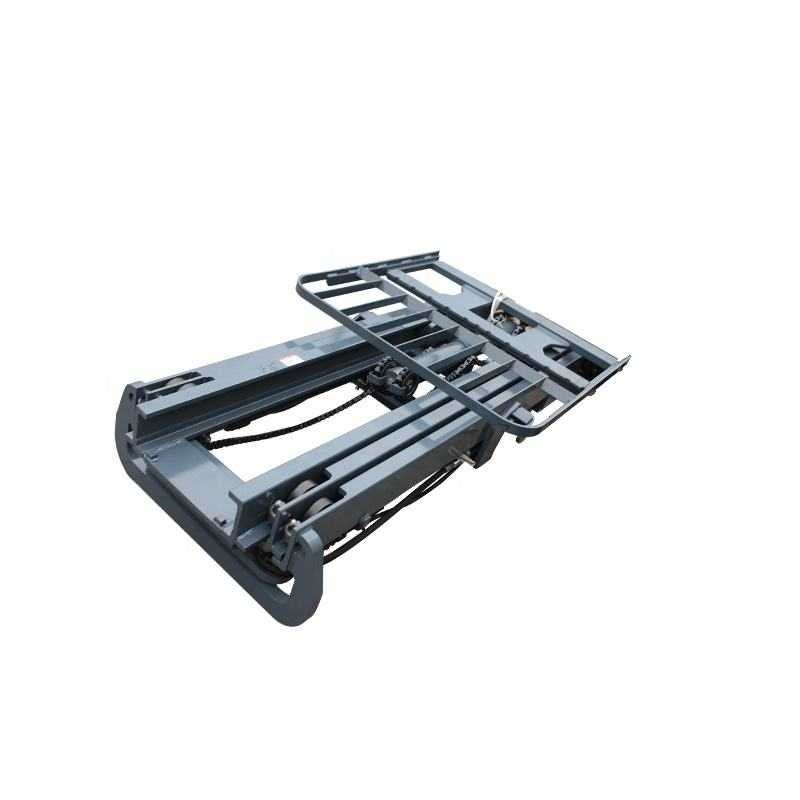

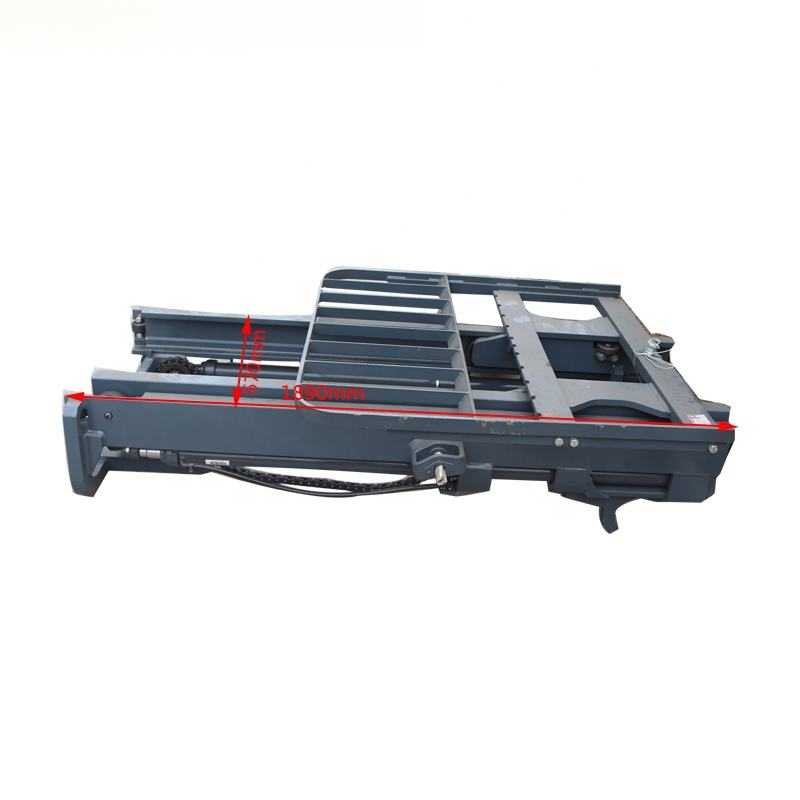

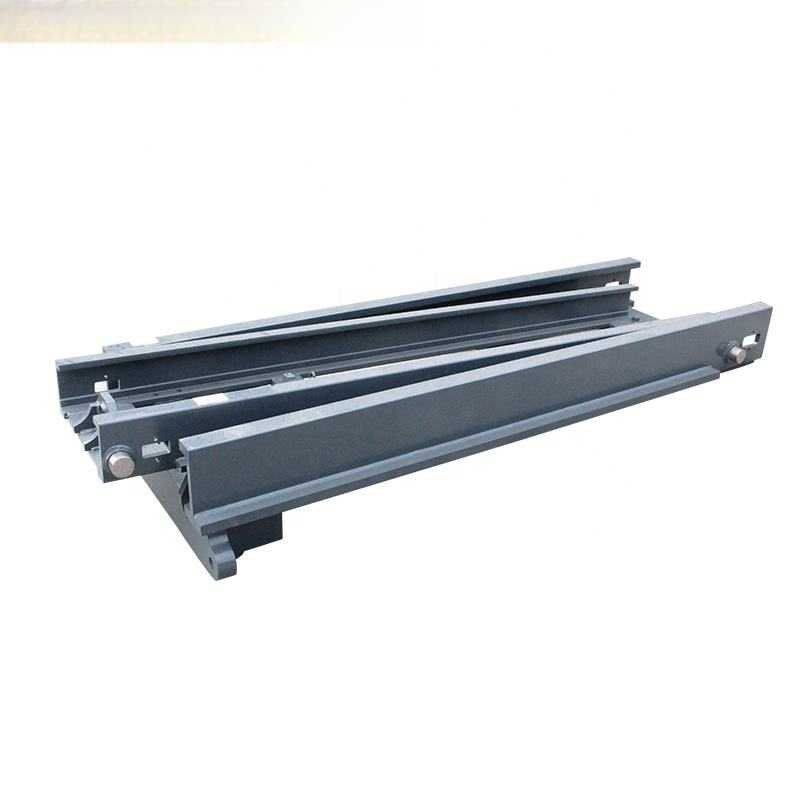

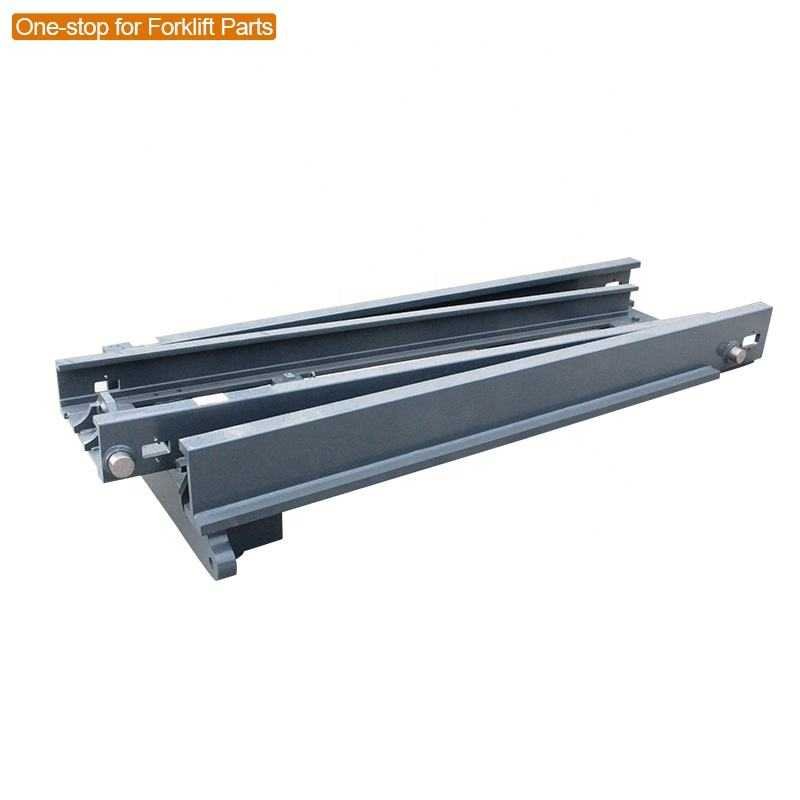

The forklift mast assembly is the complete vertical lifting structure — the welded steel channel frame that houses the lift cylinders, mast chains, roller bearings, carriage, and fork mounting — available in duplex (two-stage) and triplex (three-stage) configurations for 2-ton, 3-ton, and 5-ton forklift capacity classes. A duplex mast assembly provides two stages of lift (outer channel + inner channel with free-lift cylinder), while a triplex mast assembly adds a third intermediate channel for greater maximum lift height without increasing the collapsed mast height — essential for forklifts operating in low-doorway warehouses or shipping containers where the lowered mast must clear the door header. A cracked channel weld, worn roller bearing tracks, or bent channel on a forklift mast assembly affects lifting smoothness, load stability at height, and in severe cases, the structural integrity of the entire lifting system.

Fabricated from heavy-gauge formed steel channels with precision-welded cross-members, integrated cylinder mounts, chain anchor points, and roller bearing tracks, this forklift mast assembly is built to HELI OEM mast specifications for 2T, 3T, and 5T capacity classes. For mast chains, roller bearings, and lift cylinders, browse our relevant mast components.

Technical Specifications

• SKU: MAST-HELI-ASSY
• Type: Forklift mast assembly — duplex / triplex
• Capacity: 2T, 3T, 5T configurations
• Stages: Duplex (2-stage) or Triplex (3-stage)
• Construction: Heavy-gauge steel channels, welded cross-members

Compatible Models

Each forklift mast assembly ships as a complete welded structure. Verify mast type (duplex vs triplex), capacity class, and collapsed height. For HELI mast specifications, consult Baldwin Filters. Kingstream stocks forklift mast assemblies — worldwide freight shipping with online tracking.
