Forklift Planetary Carrier GR501-121511-000 – Heli CPCD50-70 H

Forklift Planetary Carrier Assembly GR501-121511-000 — Heli CPCD50~70 H Series Differential Planetary Carrier

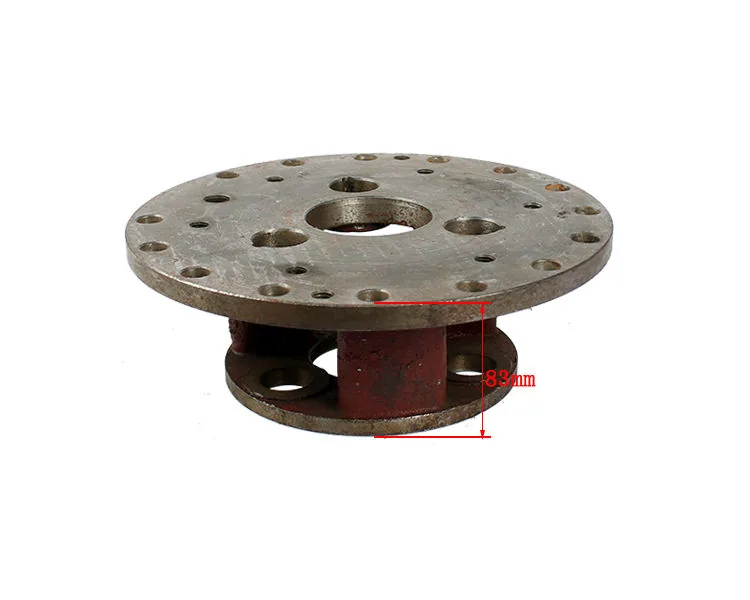

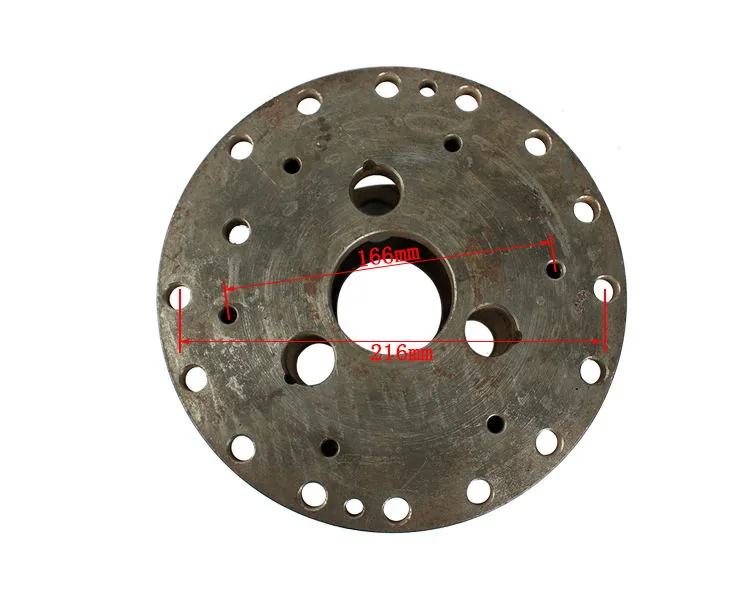

This forklift planetary carrier assembly part number GR501-121511-000 is a Kingstream OEM differential planetary carrier for Heli CPCD50~70 H Series 5-7 ton diesel forklift trucks. The planetary carrier is the rotating frame inside the differential that holds the planetary spider gears — as the ring gear drives the differential case, the carrier rotates with it, forcing the planet gears to rotate around the sun gears and transfer power to the left and right axle shafts while allowing speed differentiation during cornering. The H Series designation covers Heli heavy-duty diesel forklifts with 5-7 ton capacity commonly deployed in port container handling, steel distribution, construction material logistics, and heavy manufacturing. Dimensions: 238×83mm within a 27×27×19cm package. Weight: 6.85kg (gross 7.2kg). 100% professional tested. Ships by air freight (FedEx, DHL, TNT, UPS) or sea freight worldwide. Payment via T/T, Western Union, or bank transfer. Delivery terms: Ex-work, FOB, CIF, or LC. MOQ 1 piece. 6-month warranty. Kingstream OEM quality.

INSTALLATION PROCEDURE: Step 1 — Remove the drive axle assembly from the forklift and drain the differential gear oil. Step 2 — Disassemble the axle housing to access the differential carrier assembly. Step 3 — Remove the differential carrier from the axle housing. Step 4 — Mark the differential case halves for reassembly alignment. Step 5 — Separate the differential case and remove the old planetary carrier along with the spider gears. Step 6 — Inspect the differential case bearings, ring gear teeth, and axle shaft splines — replace any components showing wear, scoring, or pitting. Step 7 — Install the new Kingstream OEM planetary carrier with spider gears into the differential case. Verify proper gear mesh and smooth rotation of all gears by hand. Step 8 — Reassemble the differential case halves with correct bolt torque and thread locking compound. Step 9 — Reinstall the differential carrier into the axle housing with proper bearing preload adjustment. Step 10 — Set ring gear to pinion backlash to specification using a dial indicator. Step 11 — Refill differential with correct specification gear oil. Step 12 — Test drive and verify quiet differential operation during both straight-line travel and cornering. 6-month warranty. Kingstream OEM.

SYMPTOMS OF PLANETARY CARRIER FAILURE: Whining or howling differential noise that changes pitch with vehicle speed, clunking noise during acceleration or deceleration transition, metal particles or glitter in differential oil, excessive backlash when rotating the driveshaft by hand, and uneven tire wear from limited differential action. For Heli CPCD50-70 H Series forklift fleet differential maintenance, contact us for parts availability and fleet pricing. Kingstream OEM.
