Forklift Hydraulic Pump CBKA-G436-AT&L 13T – CPCD50-100 6102

Forklift Hydraulic Pump CBKA-G436-AT&L 13-Tooth Spline — CPCD50~100 / 6102 Diesel Forklift Gear Pump

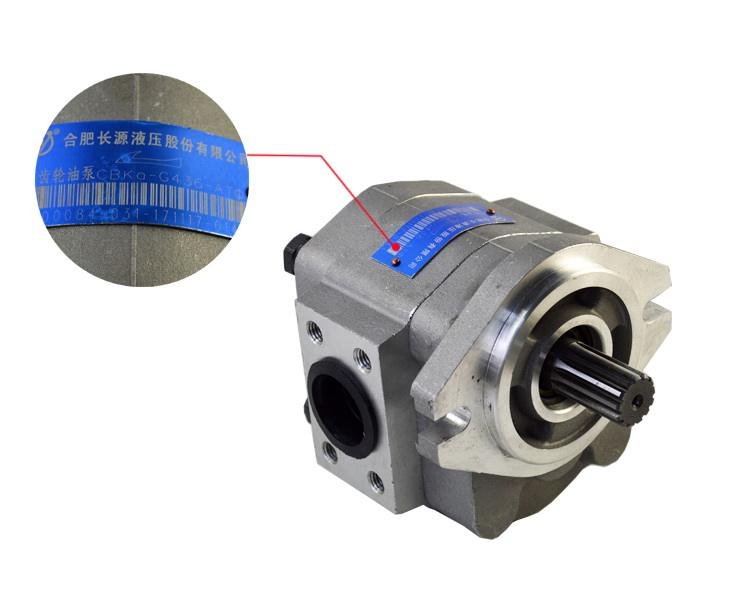

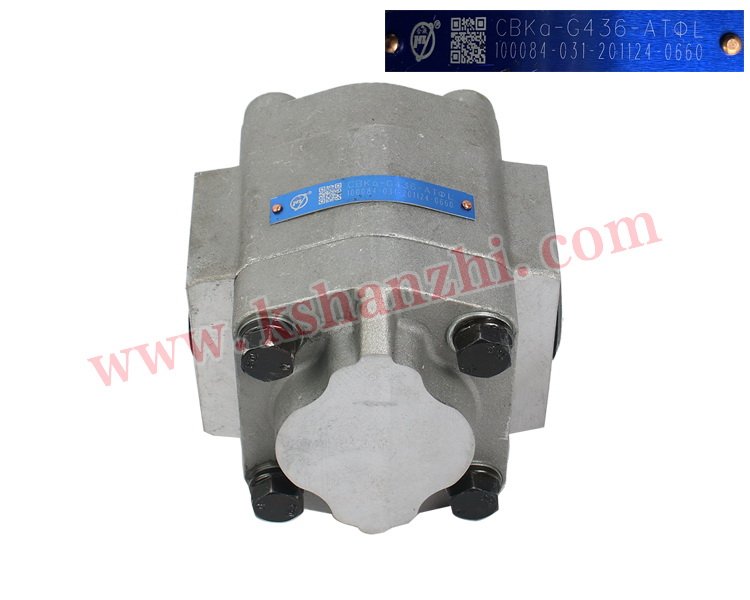

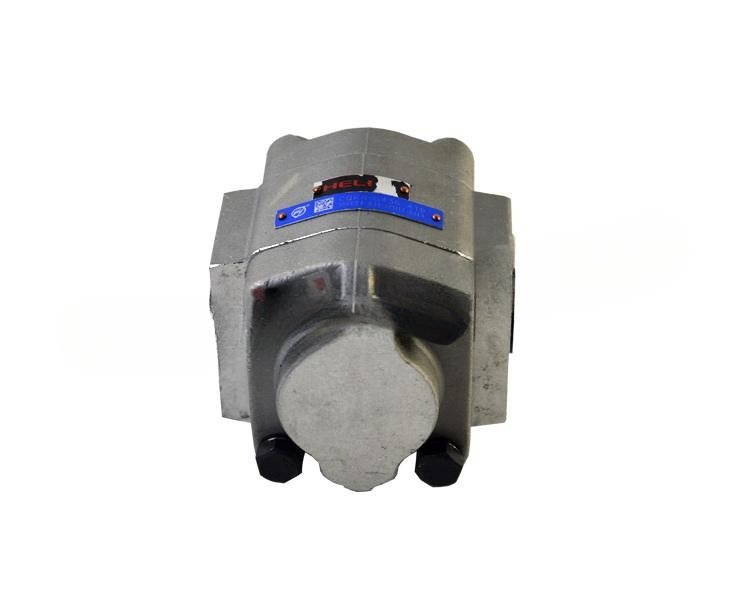

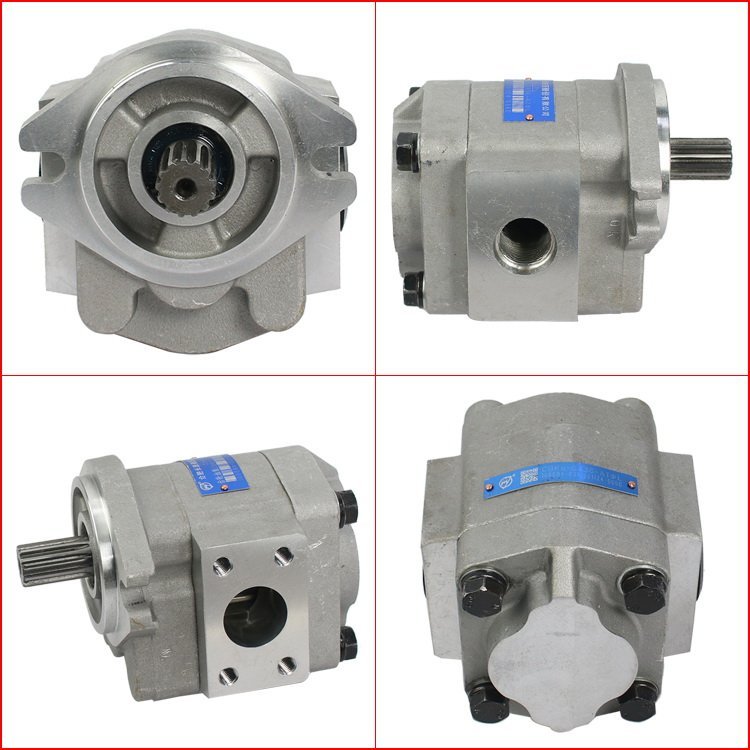

This forklift hydraulic pump part number A45E7-10301 (part code CBKA-G436-AT&L) is a Kingstream OEM hydraulic gear pump for Heli CPCD50~100 series and 6102 diesel engine 5-10 ton forklift trucks in manufacturing, construction, retail, and heavy material handling. The 13-tooth spline drive connects the pump directly to the engine or transmission PTO shaft, providing a positive mechanical drive with no slippage. Heavy-duty construction for durable performance in continuous industrial operation. 4.6kg net (4.85kg gross) with 28×25×25cm packaging. CE and ISO9001:2015 certified. 6-month warranty. Each unit passes strict quality inspection before delivery. Kingstream OEM for 5-10 ton forklift fleet hydraulic pump replacement.

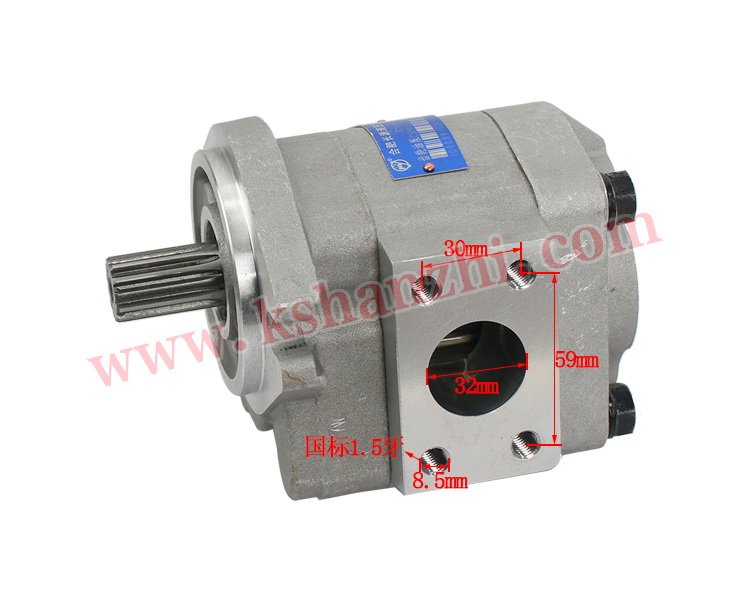

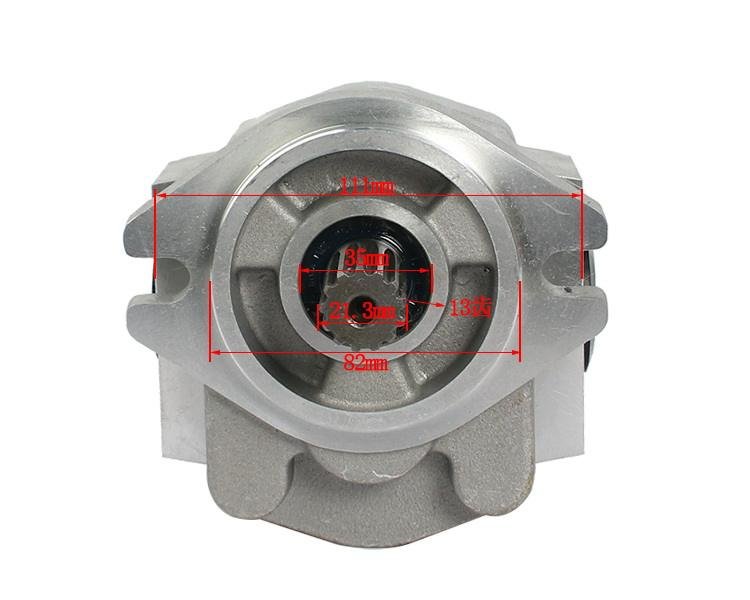

HYDRAULIC PUMP FUNCTION: The CBKA-G436-AT&L is the primary hydraulic pump that supplies pressurized hydraulic oil to the forklift mast lift, tilt, and auxiliary functions. On CPCD50~100 5-10 ton forklifts, the hydraulic system must generate sufficient pressure and flow to lift loads of 5,000-10,000 kg — this requires a robust gear pump capable of sustained high-pressure operation. The 13-tooth spline drive provides higher torque capacity compared to keyed shafts, and the AT&L designation indicates the specific mounting flange and port configuration. For CPCD50-100 forklift fleet hydraulic system maintenance, contact us. Kingstream OEM.

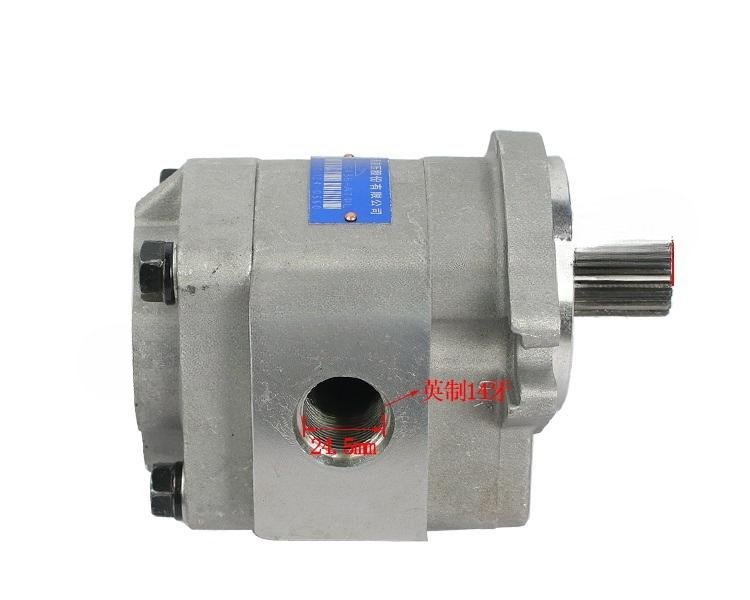

INSTALLATION: Drain the hydraulic reservoir. Disconnect the pump inlet hose (larger diameter from reservoir) and pressure outlet hose. Unbolt the pump from the engine PTO adapter or transmission mounting pad — the spline shaft will slide out of the PTO coupling. Before installing the new pump, inspect the PTO spline coupling for wear — a worn coupling will damage the new pump splines. Apply a light coating of clean hydraulic oil to the spline shaft before insertion. Install the pump with a new mounting gasket or O-ring. Reconnect hoses with new sealing washers. Fill the pump inlet port with clean hydraulic oil. Start the engine at low idle and verify pressure rise — the pump should prime within 2-3 seconds. Check for leaks at all connections and fittings. Monitor hydraulic oil level and top up. 6-month warranty. Kingstream OEM.

Technical Specifications

6-month warranty. Kingstream OEM. Contact us.
