Forklift Water Pump 490B-42000 – C490B Diesel Engine

Forklift Water Pump 490B-42000 — Engine Cooling Water Pump for 490B / C490B Diesel Engines

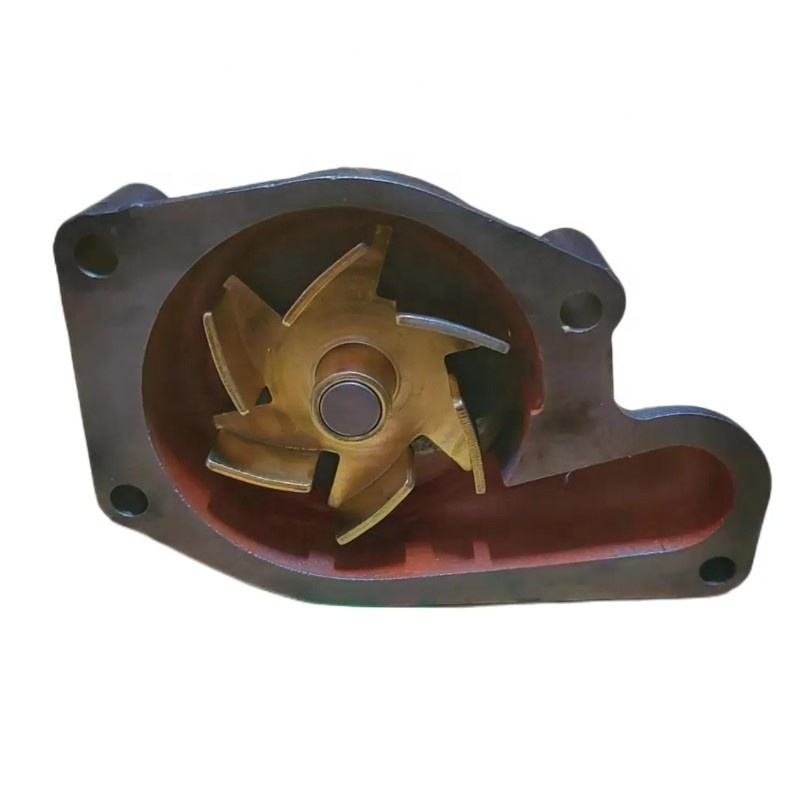

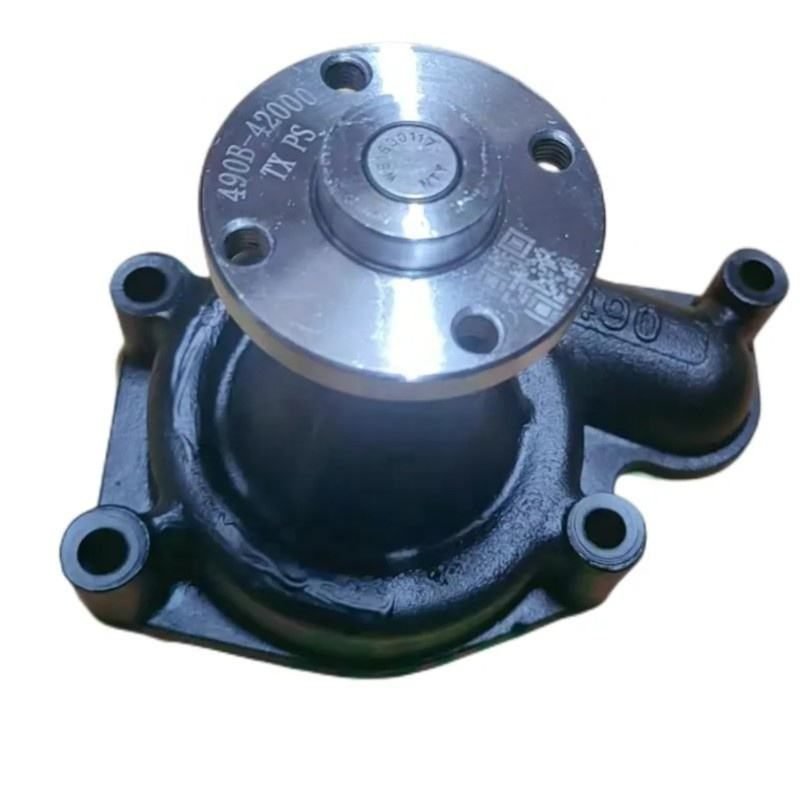

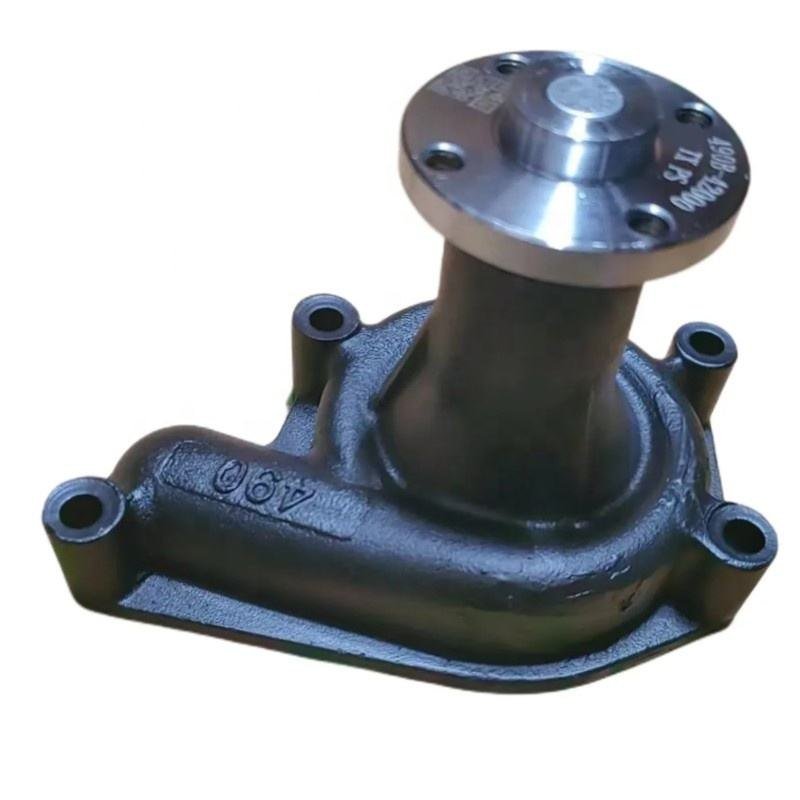

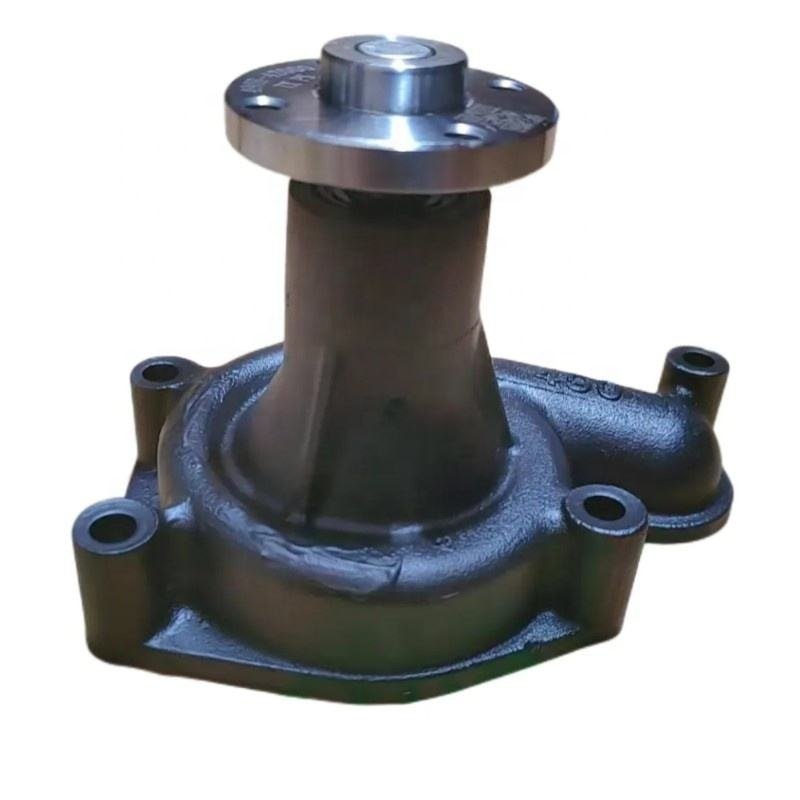

This forklift water pump part number 490B-42000 is a Kingstream OEM engine cooling water pump for 490B and C490B diesel engines used in forklift trucks. The 490B engine is one of the most widely produced 4-cylinder diesel engine platforms in Chinese manufacturing, powering forklifts from multiple brands in warehouses, ports, construction sites, and agricultural applications worldwide. The water pump is a belt-driven centrifugal pump that circulates coolant — a mixture of water and ethylene glycol antifreeze — through the engine block and cylinder head water jackets at a flow rate of approximately 60-80 liters per minute at rated engine speed. This continuous circulation absorbs the intense combustion heat generated inside the cylinders (peak combustion temperatures exceeding 2000°C) and transfers it to the radiator where airflow dissipates the heat. The pump must maintain sufficient flow at all engine speeds from idle to full-load rated RPM — a pump with a worn or eroded impeller may provide adequate cooling at high RPM but insufficient flow at idle, causing the engine to overheat during stationary lift operations where the engine is running but the forklift is not moving to generate ram-air cooling through the radiator. Alloy construction at 3kg. 3-month warranty with MOQ 1 piece. 3-7 day delivery via FedEx, DHL, EMS, UPS, or TNT from Shandong, China. T/T or Western Union payment.

Installing the 490B-42000 water pump requires draining the engine coolant, removing the fan belt from the water pump pulley, unbolting the old pump from the engine block, cleaning the mounting surface of old gasket material and corrosion, installing a new gasket, and torquing the mounting bolts to specification in a cross pattern. Refill with the correct coolant mixture and bleed trapped air from the cooling system by running the engine with the radiator cap off until the thermostat opens and coolant circulates visibly, then topping off. After installation, monitor the weep hole on the bottom of the pump housing for the first week of operation — a small amount of coolant from the weep hole during initial break-in is normal as the new seal seats, but a persistent drip indicates a defective seal requiring replacement under warranty. 3-month warranty covers manufacturing defects.

Browse our complete Forklift Water Pump category for 490B-42100, C240, 4D35ZG31, Yunnei 4100, and Xichai 4DW91 water pumps. For 490B engine fleet programs, contact us.

Technical Specifications

3-month warranty. MOQ 1 piece. 3-7 day delivery. T/T, Western Union. Kingstream OEM. For bulk orders, contact us.
