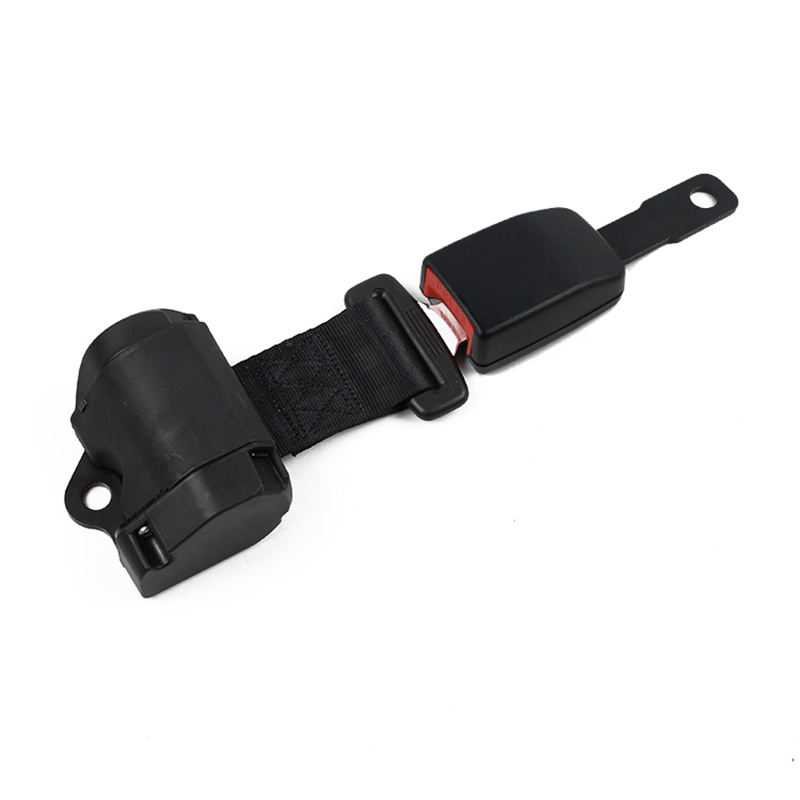

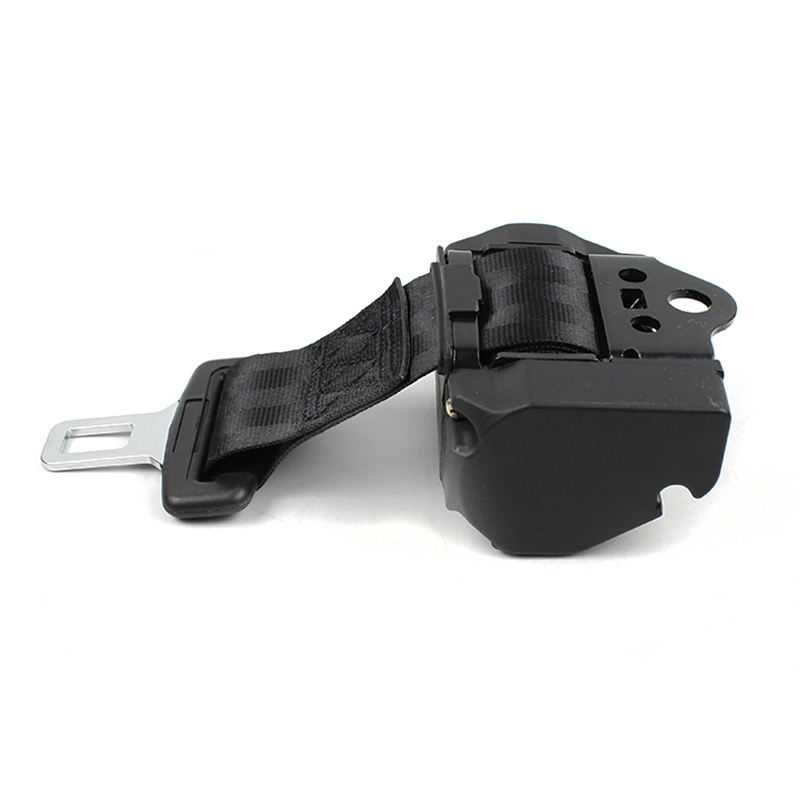

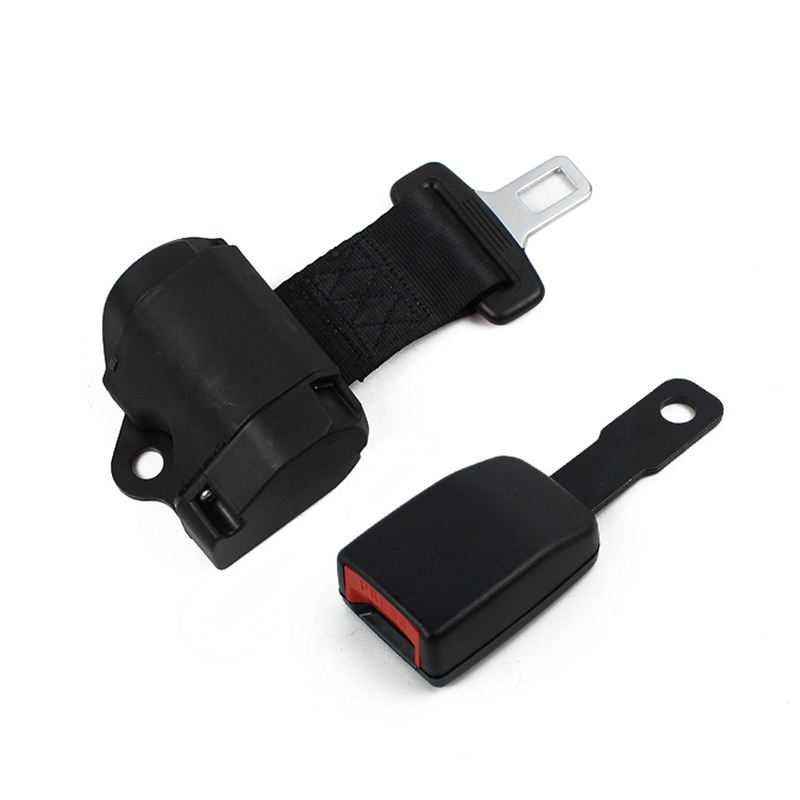

Forklift Seat Belt FEC036 — 2-Point ELR Emergency Locking Retractable Lap Belt, Polyester Webbing, 47×1.15mm, 1430mm Total Length

This forklift seat belt model FEC036 is a Kingstream OEM/ODM 2-point ELR (Emergency Locking Retractor) retractable lap belt designed for universal fitment on forklifts, industrial vehicles, and most car applications. The 2-point lap belt configuration secures the operator across the waist with a single retractable strap anchored at two points on either side of the seat — providing essential operator restraint to prevent ejection from the seat during sudden stops, forklift tip-overs, and collision events. The ELR mechanism is the critical safety feature: under normal operation the belt spools freely to allow the operator to lean forward to reach controls, but during sudden deceleration or vehicle tilt, a weighted pendulum or centrifugal clutch inside the retractor locks the webbing instantly, holding the operator firmly in the seat. Emergency locking retractors are far superior to fixed-length lap belts because they provide both freedom of movement during normal operation and immediate restraint during emergencies — a fixed belt that the operator finds restrictive is likely to be left unbuckled, defeating its safety purpose entirely. Polyester webbing at 47×1.15mm width provides high tensile strength, UV resistance, and abrasion durability for industrial environments where the belt is exposed to dust, oil, hydraulic fluid, and frequent use across multiple shifts. Available in black, grey, and beige with 1430mm total extended length. ECE R16 certified — the European safety standard for seat belt assemblies covering dynamic testing, buckle strength, and retractor locking performance. ISO/TS16949 quality system certified — the automotive industry quality management standard. MOQ 50 pieces with neutral or custom packaging. 2kg gross weight with 10×10×10cm compact packaging. Express shipment from Ningbo/Shanghai Port with 20-day delivery lead time.

Installing the FEC036 2-point seat belt on a forklift requires mounting the retractor assembly to a structurally sound anchor point on the seat frame, chassis, or overhead guard support bracket. The two anchor points must be positioned so the lap belt crosses the operator’s pelvic region at the correct angle — not riding up onto the abdomen (which would cause internal injury during restraint) and not positioned too low on the thighs where it would allow the operator to slide under the belt in a collision (submarining). The retractor must be mounted vertically with the webbing exit oriented correctly — mounting the retractor at an angle can prevent the ELR locking mechanism from functioning because the internal pendulum or ball bearing requires gravity to operate. After installation, test the ELR function by pulling the belt rapidly — it must lock immediately. Test that the belt retracts smoothly and fully when unbuckled. For forklifts operating in dusty, wet, or corrosive environments, inspect the retractor mechanism and webbing monthly for contamination, fraying, or UV degradation. ECE R16 certification requires that the complete belt assembly — not just the webbing — meets dynamic test standards, ensuring the buckle, retractor, and anchor hardware function together as a certified safety system.

Browse our complete Forklift Seat Belt category for 2-point lap belts, matching 1-10T telescopic safety belts, and industrial seat belt solutions. For OEM/ODM custom seat belt programs with specific webbing colors, buckle types, and retractor configurations, contact us with your requirements.

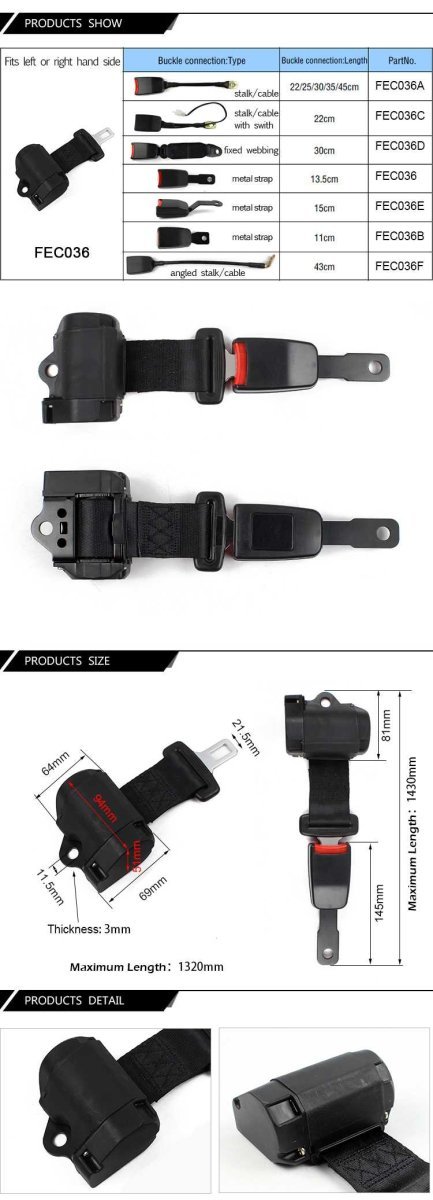

Technical Specifications

Compatible Applications

ECE R16 certified. ISO/TS16949 quality system. OEM/ODM available. Neutral or custom packaging. 20-day delivery. For bulk orders, contact us.
