Forklift Integrated Brake Hub – Toyota 8FDGJ35

Forklift Integrated Brake Hub — Toyota 8FDGJ35 Forklift Integrated Brake Hub Assembly

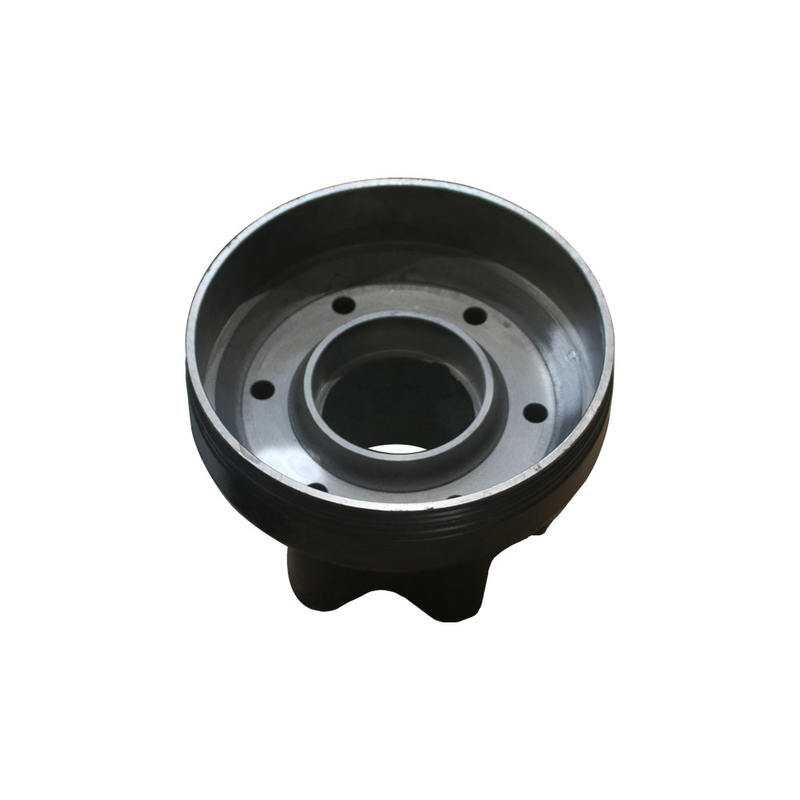

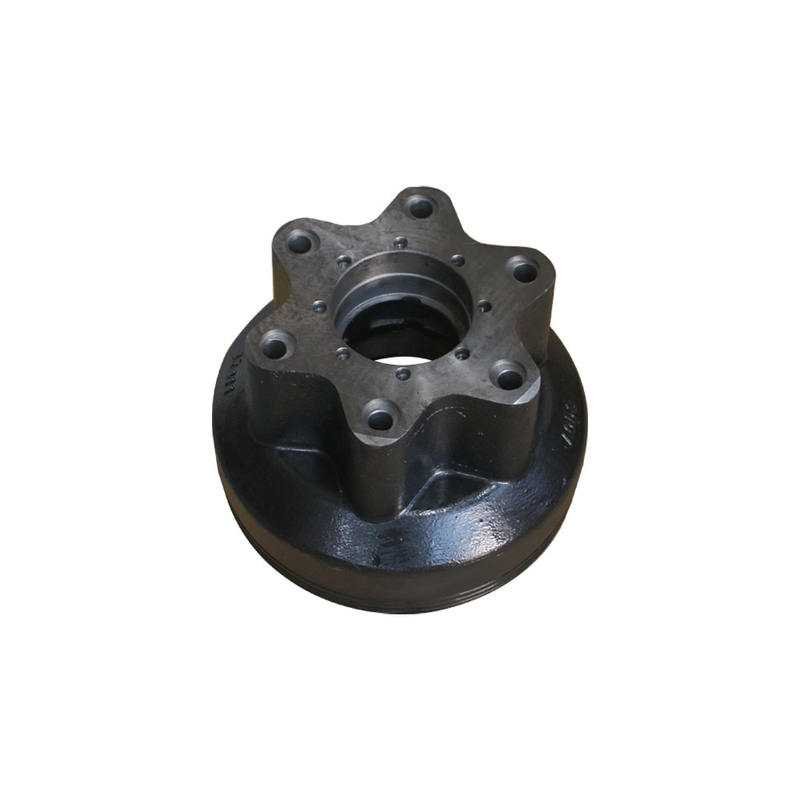

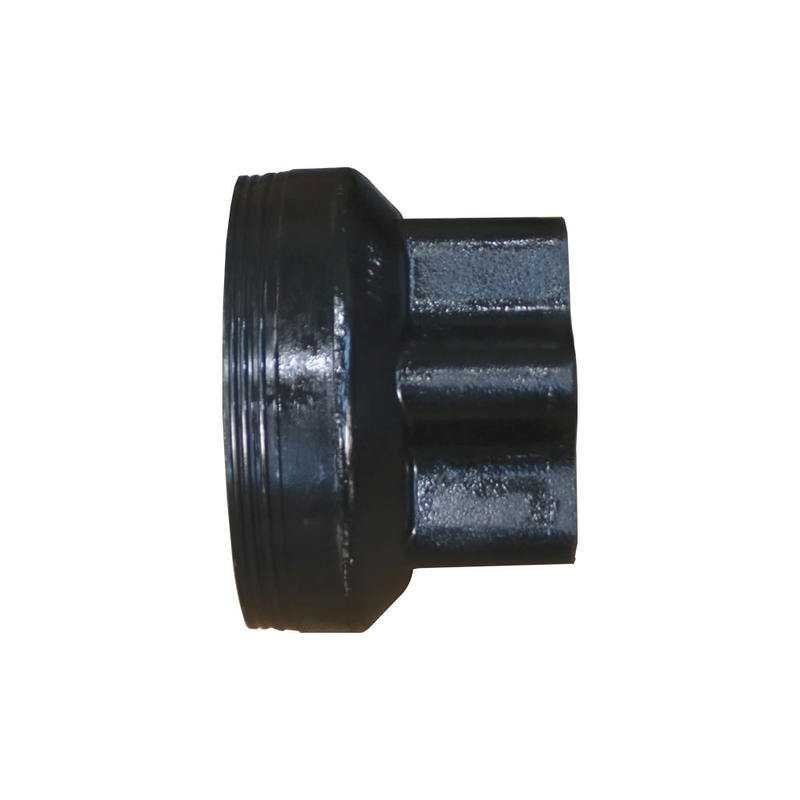

This forklift integrated brake hub is a Kingstream OEM complete brake hub assembly for Toyota 8FDGJ35 forklift trucks in logistics, transportation, and construction environments. The integrated brake hub combines the wheel hub mounting flange and the brake drum or disc friction surface into a single cast component — this integrated design eliminates separate hub and drum alignment issues, reduces parts count in the brake system, and simplifies maintenance procedures by allowing the entire unit to be replaced as one assembly. Designed for Toyota 8-series diesel forklifts with the GJ35 chassis code which powers 3.5 ton capacity forklifts commonly used in warehousing and container handling operations. 3-month warranty. Kingstream OEM for Toyota forklift fleet operators worldwide.

INSTALLATION PROCEDURE: Step 1 — Park the forklift on a level surface, engage the parking brake, and chock the wheels. Step 2 — Remove the wheel nuts and wheel assembly using appropriate lifting equipment. Step 3 — Release the brake shoe adjuster to back the brake shoes away from the drum. Step 4 — Remove the axle shaft retaining hardware and slide the axle shaft out partially to access the hub. Step 5 — Remove the old integrated brake hub from the axle housing by removing the hub retaining nut and using a puller if necessary. Step 6 — Clean the axle spindle and bearing surfaces thoroughly. Inspect the wheel bearings for wear — replace if any pitting, scoring, or discoloration is present. Step 7 — Pack new wheel bearings with high-temperature wheel bearing grease and install into the new hub. Step 8 — Install the new hub onto the spindle, torque the retaining nut to specification, and adjust bearing preload. Step 9 — Reinstall the axle shaft, brake drum, and wheel assembly. Step 10 — Adjust brake shoe clearance and test brake pedal feel and function before returning to service. 3-month warranty. Kingstream OEM.

SYMPTOMS OF HUB FAILURE: Worn or damaged integrated hubs exhibit wheel end play causing vehicle wander during travel, grinding or scraping noise from the hub area during turns, brake pulsation from uneven drum surface, visible cracks in the hub casting, and difficulty maintaining brake adjustment. For Toyota 8FDGJ35 forklift fleet brake hub maintenance programs, contact us for competitive pricing. Kingstream OEM.

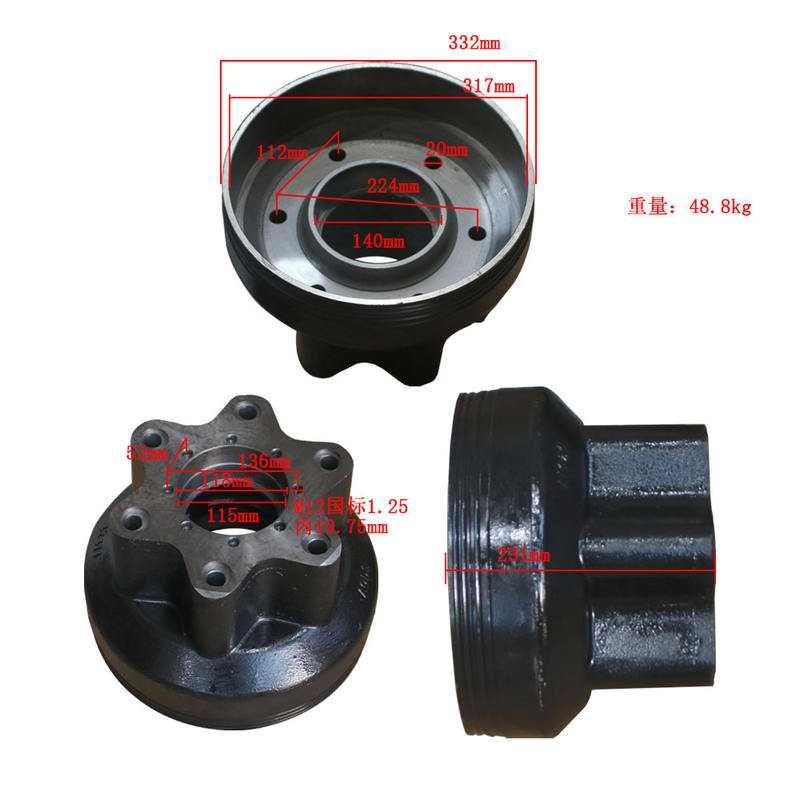

Technical Specifications

Kingstream OEM. Contact us.
