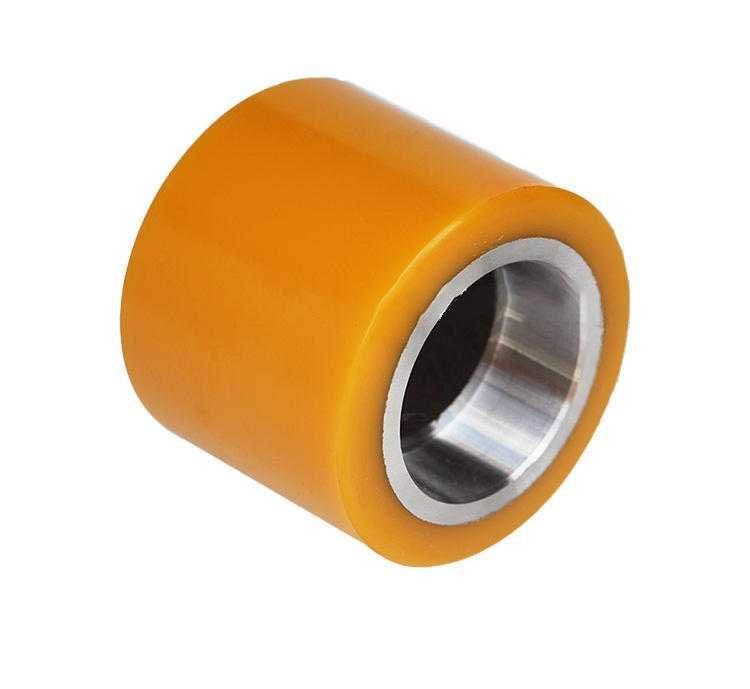

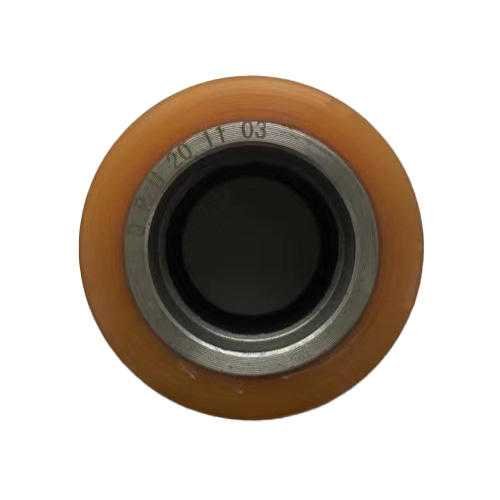

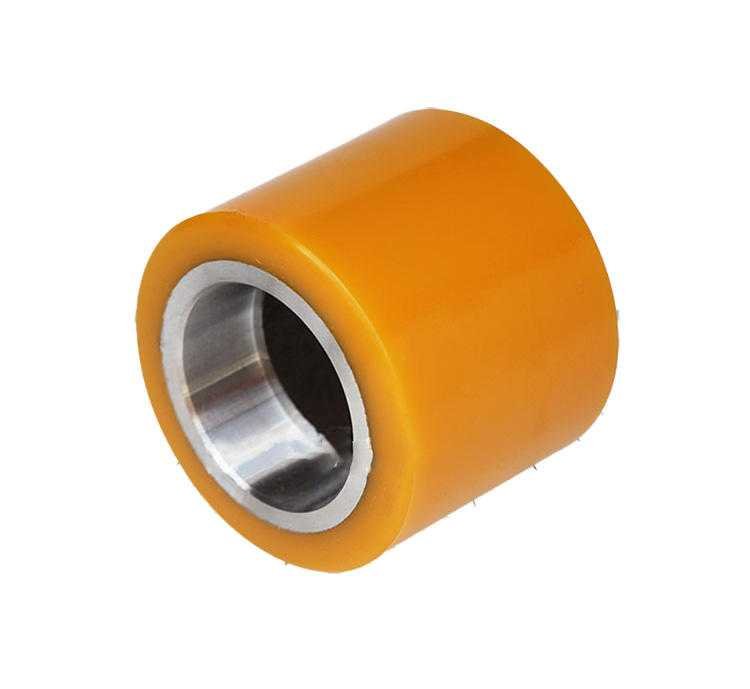

Forklift PU Wheel – 80x60x47mm Pallet Truck Yellow
$4.00
PU Wheel 80×60-47 solid polyurethane on steel hub for electric pallet truck and forklift support wheel positions. Direct OEM replacement from Kingstream.
Forklift PU Wheel — 80×60×47mm Polyurethane-Metal Core Wheel for Pallet Trucks, Yellow
This forklift PU wheel measures 80×60×47mm with a polyurethane tread bonded to a metal core, designed for pallet truck and forklift caster applications in garment, building material, manufacturing, food and beverage, construction, port, freight yard, mining, and agricultural environments. The 80mm outer diameter provides compact rolling capability for tight warehouse aisles and pallet truck maneuverability, while the 60mm tread width delivers stable load-bearing contact and the 47mm bearing bore matches standard pallet truck axle dimensions. The polyurethane tread bonded to a metal core combines the floor-safe, non-marking, wear-resistant properties of PU with the structural strength and precise dimensional stability of a metal hub — a design particularly important for pallet truck wheels that experience high point loads when transporting heavy pallets over uneven floor joints and dock plate transitions. The yellow color provides high visibility for warehouse safety. 1kg net weight with 20×20×20cm packaging. Kingstream OEM with 100% professional testing and 7-15 day delivery.
Installing the 80×60×47mm pallet truck wheel requires removing the axle bolt from the wheel bracket and sliding the old wheel off. The 47mm bore houses the bearing assembly — inspect the existing bearings and replace if worn, seized, or noisy. After installation, the wheel must rotate freely without binding against the bracket arms. For pallet trucks, all load wheels should be checked for even wear — replacing only one wheel in a set while leaving worn wheels in place creates uneven height that concentrates the load on the tallest wheel, accelerating its wear rate.
Browse our Forklift PU Wheel category for additional sizes from 84mm to 250mm. Contact us.
Technical Specifications
| Parameter | Value |
|---|---|

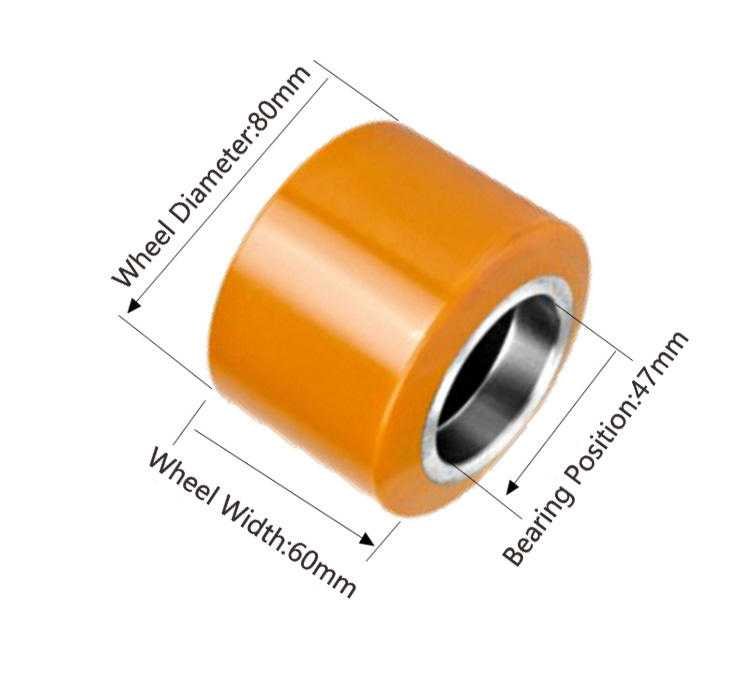

| Size | 80×60×47 mm |
| Material | Polyurethane + Metal Core |
| Color | Yellow |
| Weight | 1 kg |
100% professional tested. Carton box packaging. Kingstream OEM. For bulk orders, contact us.
Full Category Coverage
One supplier for all forklift systems — engine, hydraulic, electrical, mast, brake, undercarriage. No need to juggle multiple vendors.
No Minimum Order
Trial orders welcome. Single-piece to bulk supply. You test first, scale later. We treat every order seriously.
Three Quality Choices
Original, OEM, or Aftermarket. You decide based on budget and application. We don't upsell — you control cost and performance.
Direct 1-on-1 Communication
You talk to the sourcing decision maker. No sales reps, no forwarding. Faster answers, clearer quotes, real accountability.
Mixed Order Consolidation
Combine different parts in one shipment. Save on freight. We handle the picking, packing, and export documentation.
After-Sale Warranty
Manufacturing defects covered. Free replacement or credit arranged quickly. Your trust is worth more than any single transaction.
Same part, different brand numbers. This cross-reference table helps you confirm compatibility across multiple forklift brands. If your brand or part number is not listed, send it to us — we will match it.
| Brand | OEM Part Number | Notes |
|---|---|---|
| TOYOTA | 47201-23300 | Original |
| KOMATSU | 3EB-30-41200 | Original |
| HELI | 24022-83011 | Original |
| HANGCHA | R240-83011 | Original / OEM |
| LINDE | 0009830123 | OEM |
| HYSTER | H47201-233 | OEM |
| TCM | TCM-47201 | OEM |
| AFTERMARKET | AM-47201 | Cost-effective replacement |
