Seat Belt for Industrial Machinery, Agricultural & Forklift Seats

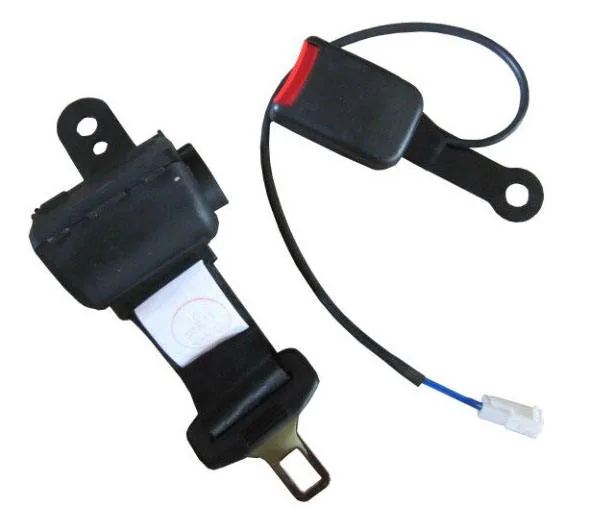

This seat belt is a universal 2-point lap belt restraint system designed for industrial machinery seats including counterbalance forklifts, agricultural tractors, skid-steer loaders, compact excavators, and telehandlers. The primary function is operator retention — preventing ejection from the seat during sudden stops, tip-over events, or collision impacts where an unrestrained operator can be thrown against the ROPS structure or ejected through the open cab. On sit-down counterbalance forklifts, the seat belt must be worn and functional under OSHA 1910.178 and ANSI/ITSDF B56.1 requirements — a non-functional or missing seat belt during a compliance inspection results in immediate equipment out-of-service tagging.

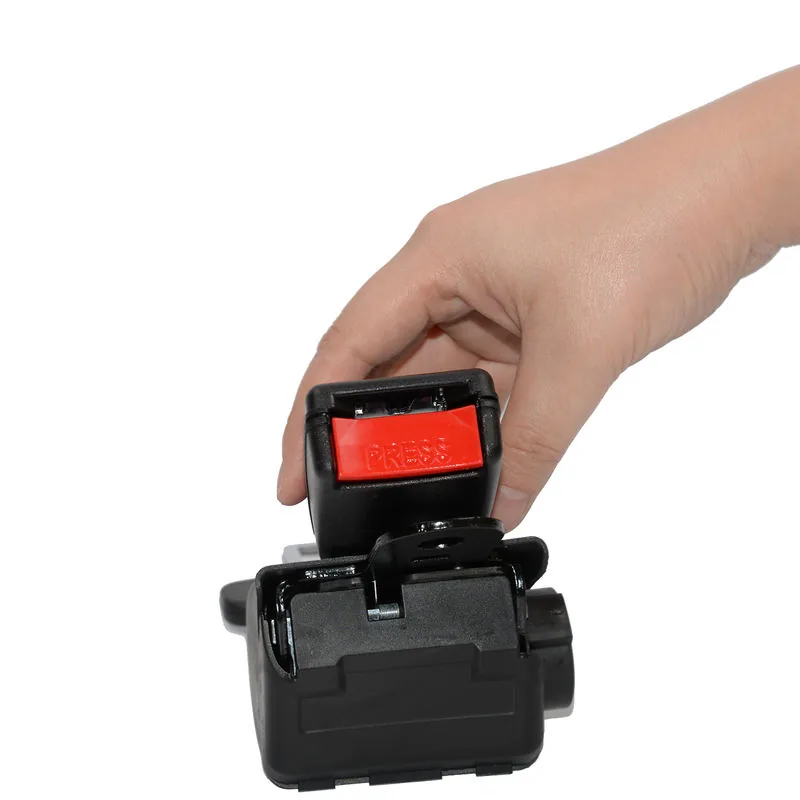

The belt assembly features a 50mm (2-inch) wide polyester webbing rated for a minimum breaking strength of 22 kN (5,000 lbs), exceeding the ISO 6683 requirements for industrial seat belt restraint systems. The webbing is treated with a UV-inhibitor coating and high-temperature resistance to prevent degradation from sunlight exposure through open-cab structures and radiant heat from engine compartments. The push-button metal buckle with a quick-release mechanism allows single-handed operation even while wearing heavy work gloves, and the adjustable-length latch plate accommodates operators from 60 kg to 150 kg body weight without requiring a separate belt length inspection. The 4-bolt mounting brackets with M10 bolt holes fit standard forklift and agricultural machinery seat base frames with bolt spacing from 180mm to 260mm center-to-center.

Universal fitment for HELI, Hangcha, Toyota, Komatsu, Linde, TCM, John Deere, Kubota, Caterpillar, JCB, CASE, and New Holland seat bases using 2-point lap belt mounting points. The belt ships with mounting bolts, flat washers, and Nyloc lock nuts — installation requires a 13mm and 17mm wrench and takes under 10 minutes. For other operator safety components including seat switches, armrests, and headrests, browse our forklift seat belt category.

Technical Specifications

• Type: Universal 2-point lap seat belt
• Webbing Width: 50mm (2 inches)
• Webbing Material: Polyester, UV-inhibitor coated, high-temp resistant
• Breaking Strength: 22 kN (5,000 lbs), exceeds ISO 6683
• Buckle Type: Push-button metal quick-release, single-handed operation
• Adjustment: Adjustable-length latch plate, 60kg-150kg operator range
• Mounting: 4-bolt brackets, M10 bolts, 180mm-260mm bolt spacing
• Hardware Included: Mounting bolts, flat washers, Nyloc lock nuts
• Install Time: Under 10 minutes, 13mm + 17mm wrench
• Application: Forklifts, agricultural machinery, skid-steers, telehandlers
• Compliance: Meets OSHA 1910.178, ANSI/ITSDF B56.1, ISO 6683 requirements

Compatible Equipment Brands

Inspect the seat belt monthly: check webbing for cuts, fraying, or chemical contamination from hydraulic oil or battery acid — any damage regardless of size warrants immediate replacement. Verify the buckle engages with an audible click and releases cleanly without sticking; a buckle that requires force to release can trap the operator during an emergency egress situation. Never attempt to repair a damaged seat belt — stitching repairs, knots, or metal clamps reduce the webbing breaking strength by 50-80% and will not withstand the 22 kN load requirement in a tip-over event. For forklift operator safety training resources, consult Baldwin Filters. Kingstream stocks universal industrial seat belts for same-day dispatch — worldwide shipping with online tracking.
