Forklift Side Shift Carriage – 1040mm

Forklift Side Shift Carriage 1040mm — ±100-150mm Lateral Positioning, High-Strength Steel, 3-Year Warranty

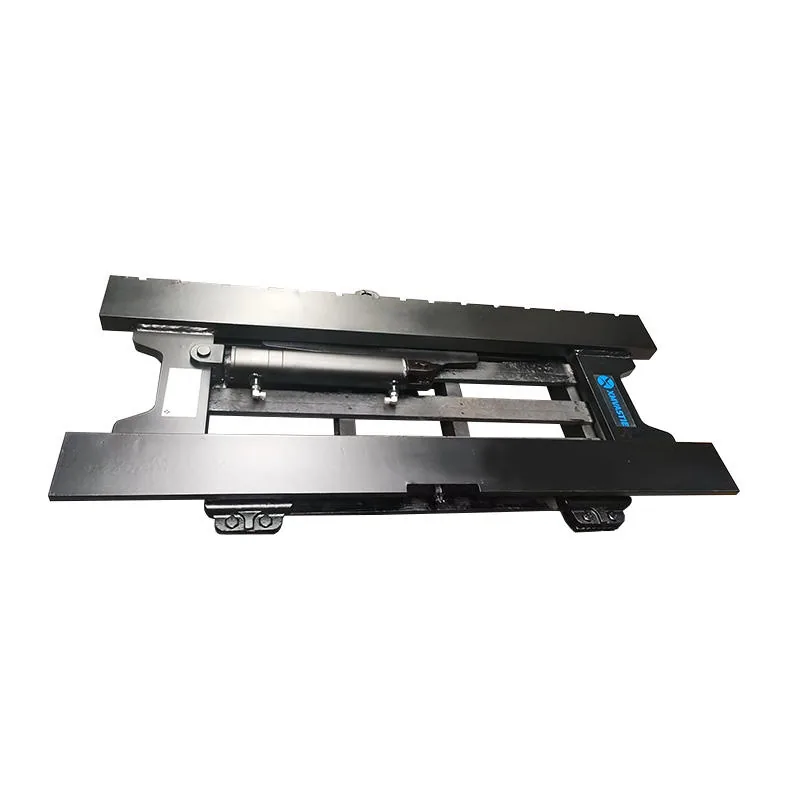

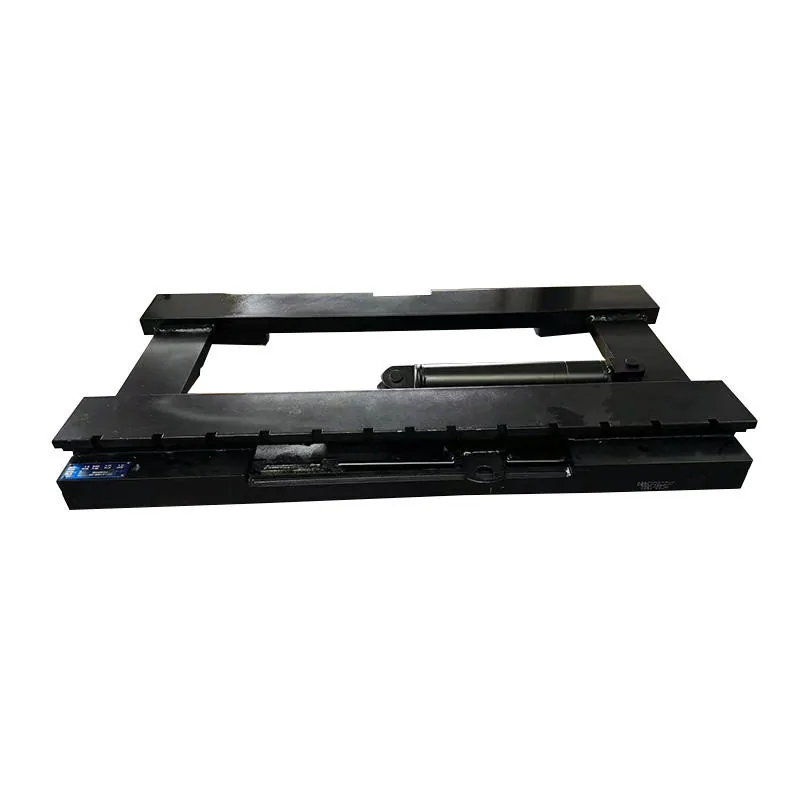

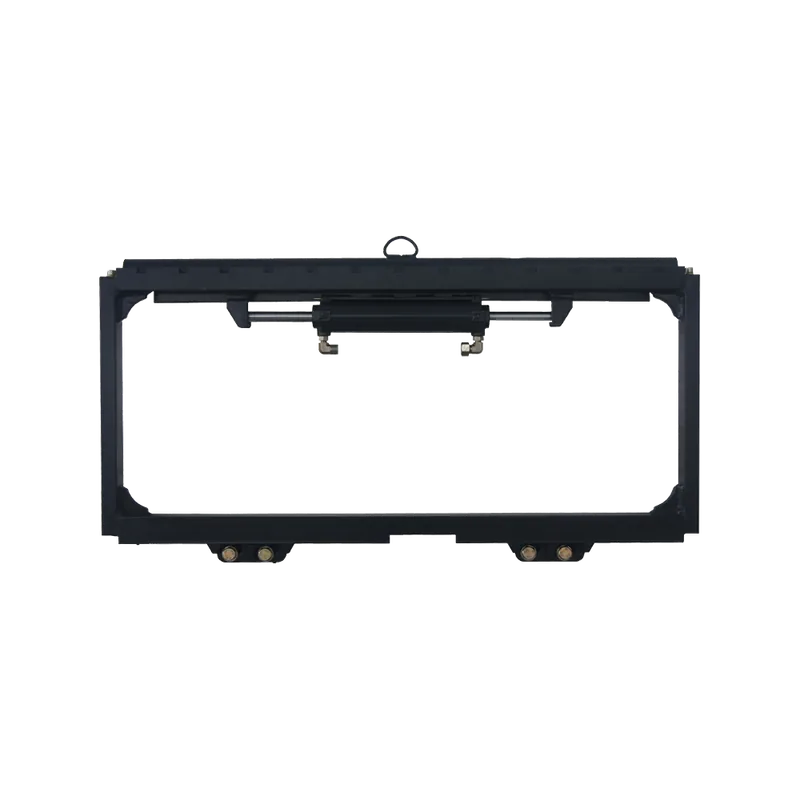

This side shift carriage is a bolt-on forklift attachment featuring a 1040mm carriage width with ±100mm to ±150mm lateral fork movement, enabling operators to reposition forks left or right without moving the entire forklift — a critical time-saving function in high-density warehousing, container loading, and narrow-aisle material handling where repeated fork repositioning would otherwise require multiple forklift maneuvers. Constructed from high-strength steel with a 68kg packaged weight and 105×50×40cm package dimensions, this unit is designed for diesel-powered forklifts in building material, manufacturing, and machinery repair operations. The side shift function is hydraulically actuated through the forklift’s auxiliary circuit, with the cylinder and slide mechanism engineered for longer wear resistance in continuous multi-shift service. Unlike carriages that require manual fork repositioning with pins and tools, the side shift function enables the operator to make fine lateral adjustments from the driver’s seat — improving both safety (no operator exit required) and productivity (seconds vs minutes per adjustment). 3-year warranty included, making this one of the longest-warranty carriage attachments available.

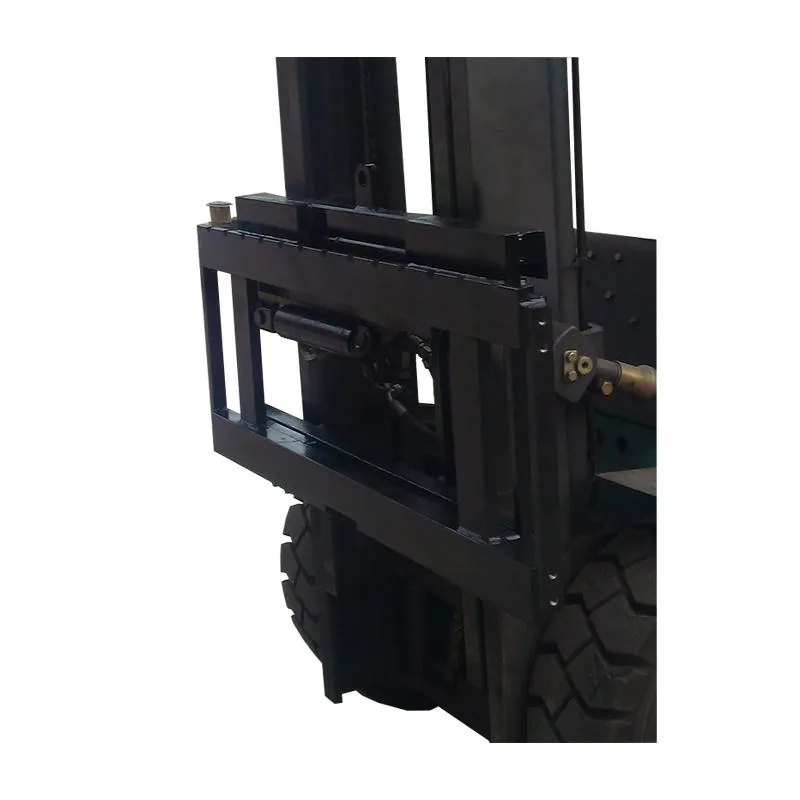

Installing a side shift carriage requires connecting the hydraulic cylinder to the forklift’s auxiliary circuit — verify your machine has a spare auxiliary circuit with adequate flow rate and pressure rating before ordering. The 1040mm carriage width must match your forklift’s mast channel spacing and roller configuration. After mounting, bleed the side shift cylinder circuit thoroughly; air in the hydraulic lines causes jerky or delayed lateral movement that defeats the fine-positioning purpose of the side shift function. Once bled, cycle the side shift through its full ±100-150mm range and verify smooth, drift-free movement under load. The slide rails incorporate grease fittings that require monthly lubrication — dry rails accelerate slide block wear, progressively increasing lateral play that reduces positioning precision. The most common operational issue with side shift carriages is cylinder drift, where the carriage creeps off-center under sustained load — this indicates internal cylinder seal bypass requiring cylinder rebuild or replacement. A 3-year warranty provides coverage well beyond the typical 1-year industry standard for carriage attachments.

This side shift carriage is designed for diesel forklifts with 1040mm mast width compatibility and auxiliary hydraulic circuit. Confirm your mast dimensions and hydraulic specifications before ordering. Browse our Fork Carriage category for fixed carriages, tilting carriages, and fork components. For OEM specifications, visit HELI Forklift official site. For bulk orders or technical inquiries, contact us.

Technical Specifications

Compatible Forklift Brands

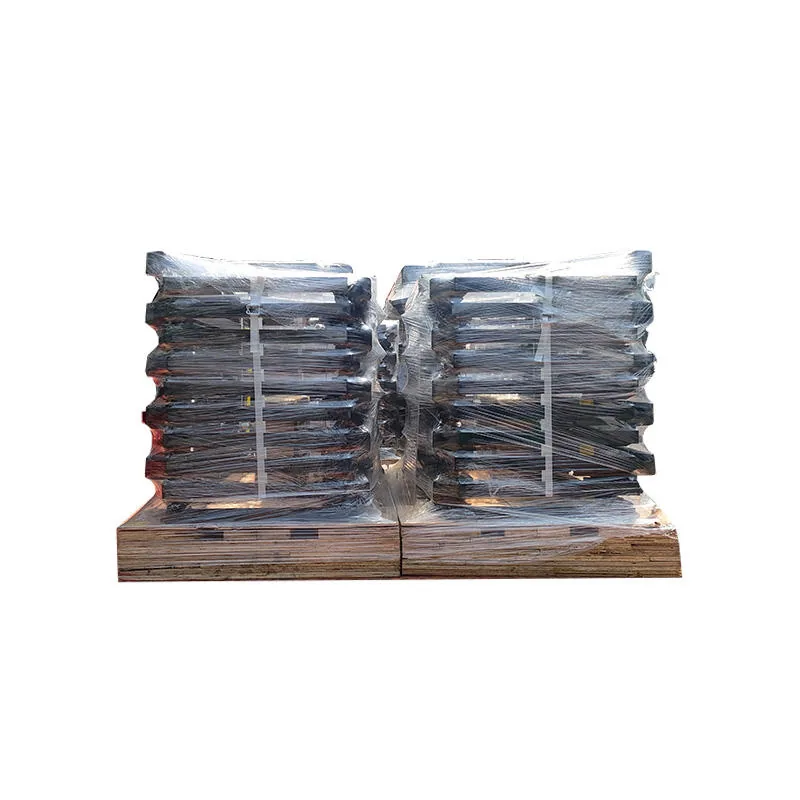

Each side shift carriage is inspected for hydraulic function and slide rail smoothness before shipment. 3-year warranty. Standard export packaging. For bulk orders or custom specifications, contact us.
