Solid Forklift Tires Size 6.50-10 Forklift Tyres Solid Tire Forklift Spare Parts

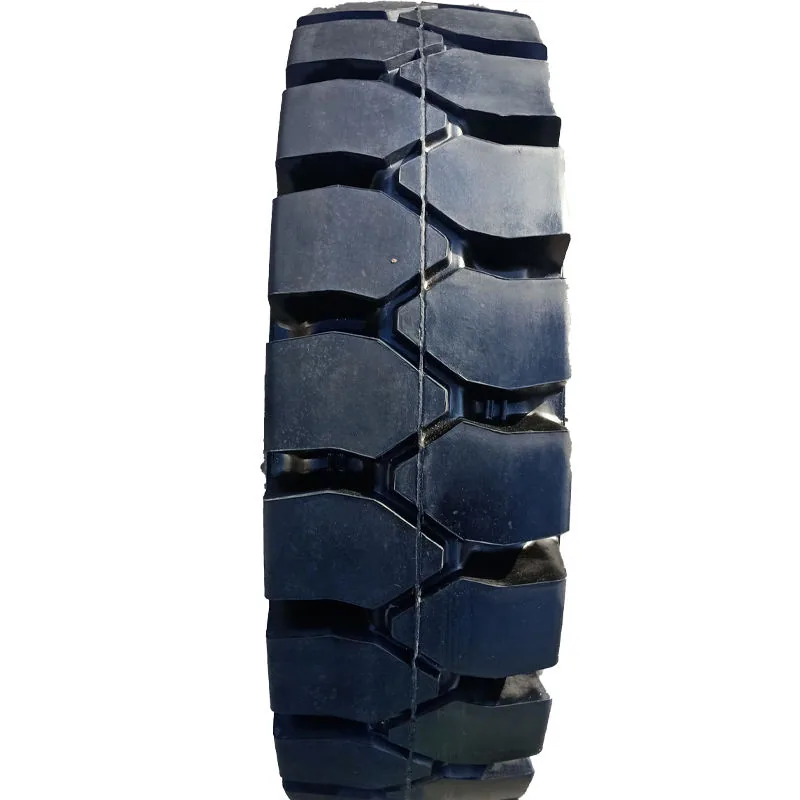

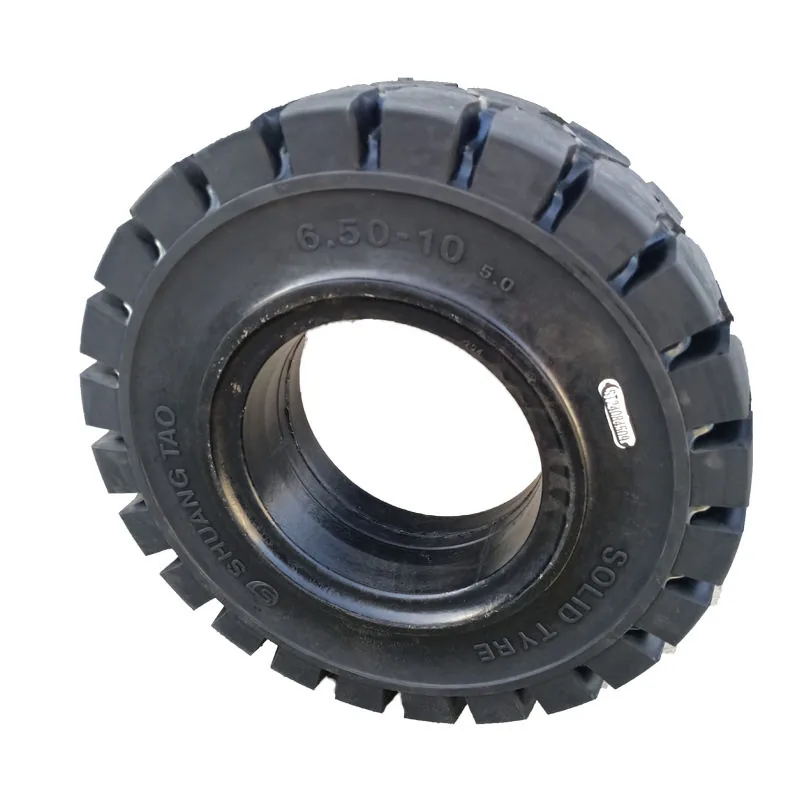

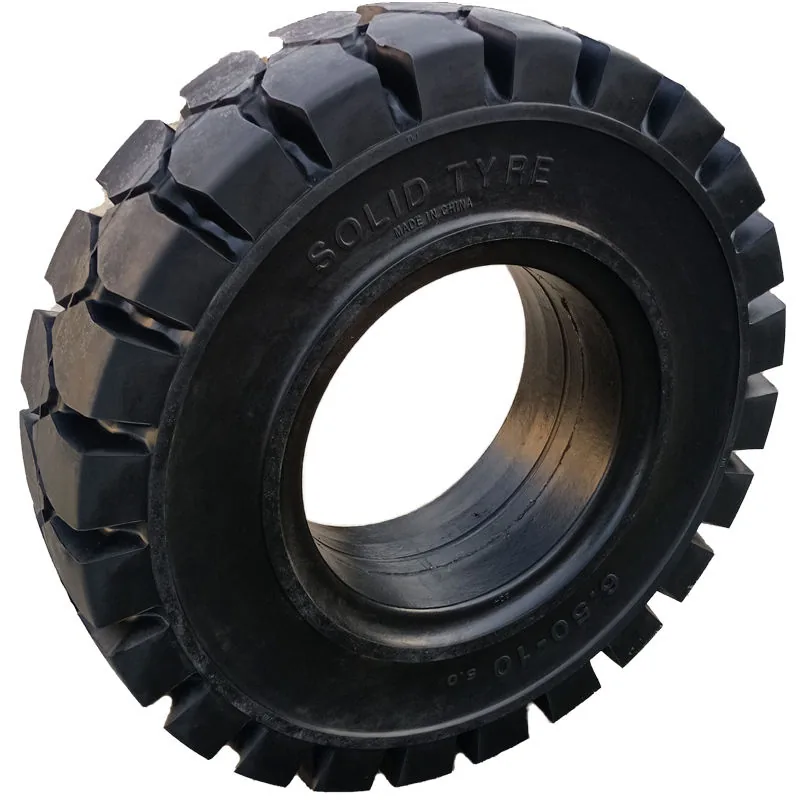

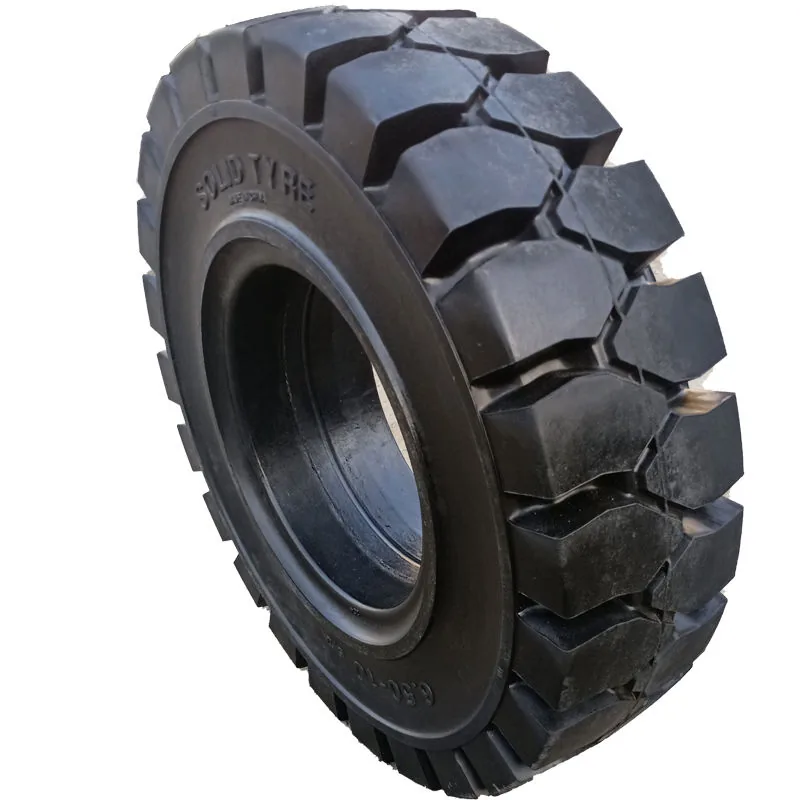

6.50-10 Forklift Solid Tire — Standard Press-On Industrial Solid Tyre for 1-2 Ton Forklifts

This 6.50-10 press-on solid tire is the standard industrial tyre for 1-2 ton electric and IC counterbalance forklifts, the workhorse compact class deployed in warehouses, distribution centers, manufacturing plants, cold storage facilities, and retail logistics operations worldwide. The 6.50-10 size — approximately 6.5 inches section width on a 10-inch bead-seat rim — is the most commonly specified small-format forklift tire dimension, fitted across the entire product range of Heli, Toyota, Komatsu, Hangcha, Lonking, Clark, Nissan, and TCM for their 1-2 ton models. As a solid tire, it is manufactured as a single homogeneous rubber body permanently bonded to a precision steel base band, containing no internal air cavity and therefore completely immune to the punctures, blowouts, and slow leaks that are the single largest cause of forklift tire-related downtime. In high-cycle warehouse environments where a forklift may traverse nail-and-staple-laden floors hundreds of times per shift, the operational reliability advantage of solid tires over pneumatic alternatives translates directly to increased throughput and reduced maintenance intervention, making them the default tire choice for the vast majority of indoor forklift applications.

Manufactured using a three-layer compression molding process under controlled heat and pressure, the outer tread layer is formulated from a balanced natural rubber compound with optimized abrasion resistance for long service life on concrete, polished concrete, and epoxy-coated warehouse floors. The compound is designed to provide adequate cut and chunk resistance against the metal debris, wood splinters, and general floor detritus typical of industrial environments while maintaining acceptably low rolling resistance to preserve electric forklift battery range. The intermediate cushion layer provides the shock absorption and vibration isolation that protects the forklift drivetrain, steering components, mast assembly, and operator from the cumulative effects of continuous impact loading from expansion joints, dock plates, and floor irregularities. The base layer features a high-modulus rubber formulation chemically and mechanically bonded to the cold-rolled steel base band, creating a permanent interface that resists the shear forces of acceleration, braking, and cornering without separation. The tread pattern includes functional grooves for water evacuation and debris channeling.

Direct replacement for 1-2 ton forklifts specifying 6.50-10 tires: Heli CPD10-20 and CPCD10-20; Hangcha CPD10-20; Toyota 7FB10-20 and 7FBE10-20; Komatsu FB10-20 and FG10-20; Clark ECG/ECX10-20; Nissan/TCM 1-2 ton models. Can replace worn solid tires or retrofit from pneumatic to solid. Press-mount using hydraulic tire press with correct tooling. Browse our tire and wheel category. Contact us for pricing.

Technical Specifications

• SKU: SOLID-650-10
• Size: 6.50-10
• Type: Press-On Solid Forklift Tire
• Construction: 3-Layer Compression Molded on Steel Base Band
• Application: 1-2 Ton Electric & IC Counterbalance Forklifts

Compatible Forklift Brands

Kingstream solid tires are individually wrapped and pallet-packed. QC includes hardness and dimensional testing. 12-month warranty. Contact us for quotation.
