Forklift Spare PartsElectronic Flasher 24V for Heli 3T Aftermarket Parts

Electronic Flasher 24V for Heli 3T Forklift Aftermarket Replacement

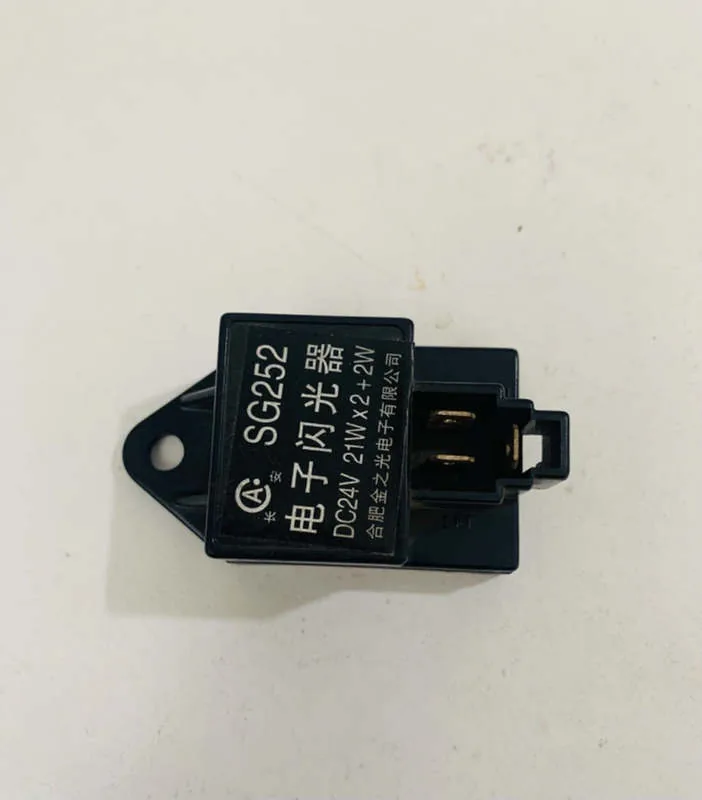

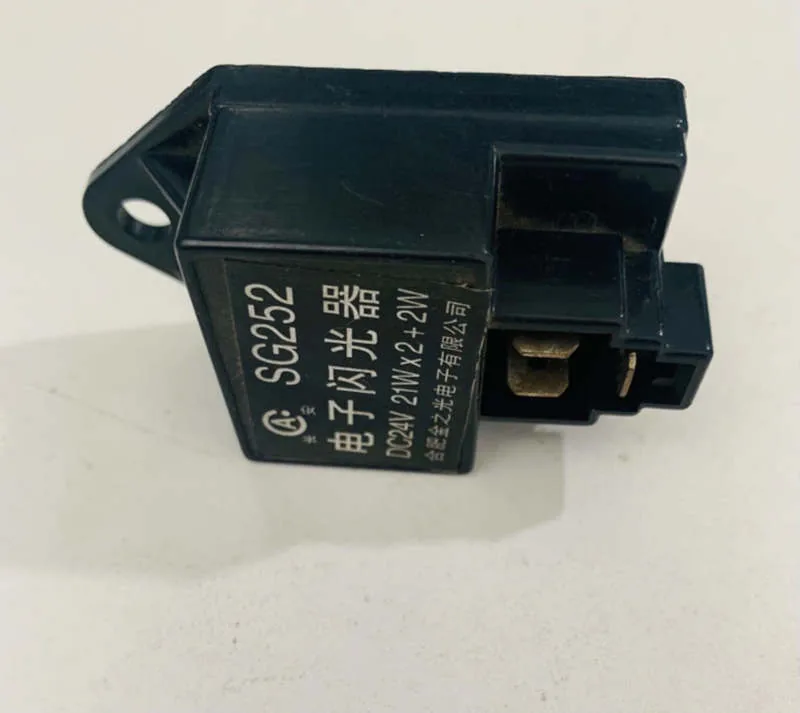

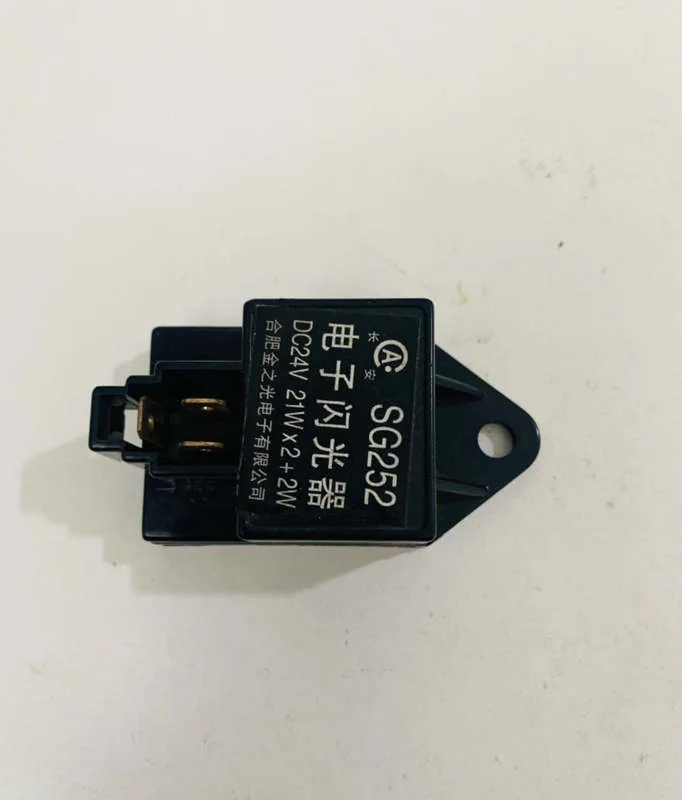

The 24V electronic flasher unit is a solid-state turn signal control module for HELI 3-ton (CPCD30/CPD30) forklifts. The electronic design replaces the OEM thermal bimetal flasher — which degrades from contact oxidation within 2-3 years — with a 555 oscillator IC and MOSFET output stage delivering a stable 85 FPM flash rate regardless of load, temperature, or battery state. The sealed ABS housing with integrated 3-pin connector (49, 49a, 31 per DIN 72552) plugs directly into HELI OEM wiring harness. Rated for 200,000+ cycle MTBF, this aftermarket unit performs reliably in cold-start and multi-shift environments where thermal units fail. Forklift electronic flasher category.

Technical Specifications

• Type: Electronic flasher unit (solid-state)
• System Voltage: 24V DC
• Flash Rate: 85 FPM stable
• Pin Configuration: 3-pin — 49 (Input), 49a (Output), 31 (Ground)
• Max Load: 42W per side
• Circuit Type: 555 oscillator + MOSFET output
• Housing: Sealed ABS
• MTBF: 200,000+ flash cycles
• Fitment: HELI CPCD30/35, CPD30/35 3T-3.5T

Compatible Forklift Models

Each 24V flasher ships with terminal cap. Never bridge flasher socket pins — continuous current melts lens housings. The electronic unit produces a quieter click than thermal — this is normal solid-state operation. Baldwin Filters. Kingstream stocks HELI 24V flasher units for same-day dispatch — worldwide shipping.
