Forklift Steering Link Pin N163-220008 17x78mm – Heli Hangcha

Forklift Steering Linkage Pin N163-220008 — 17×78mm Alloy Steel Steering Link Pin for Heli 2.5T / Hangcha CPCD20-30 / JAC CPCD25 CPCD50

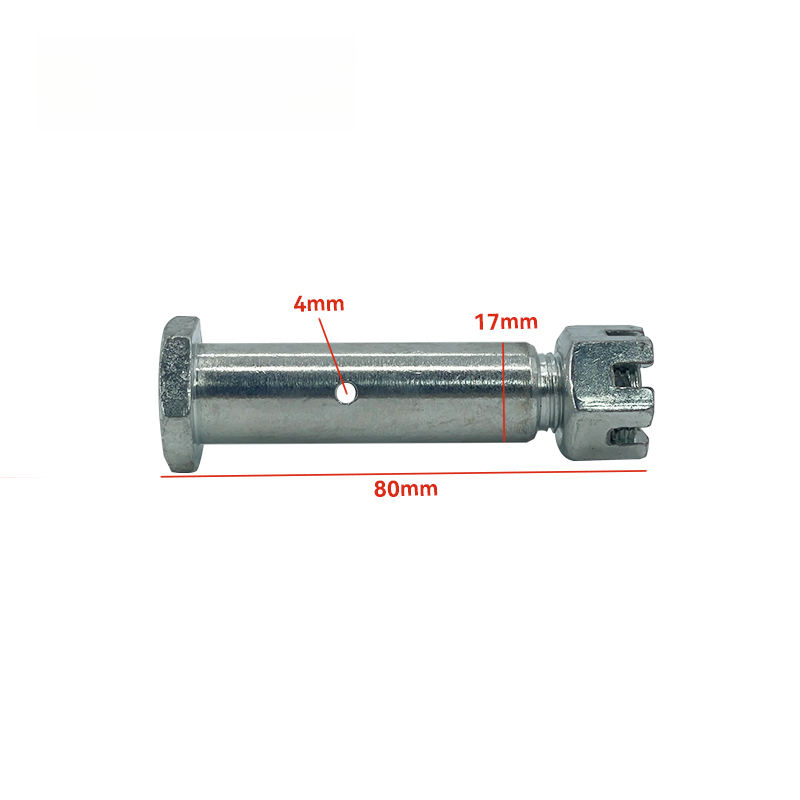

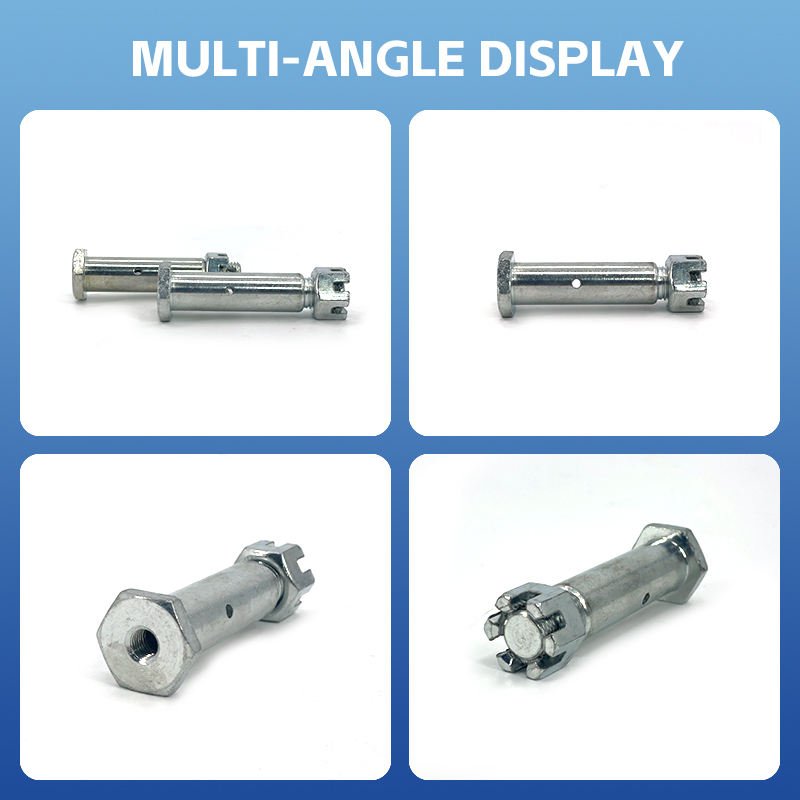

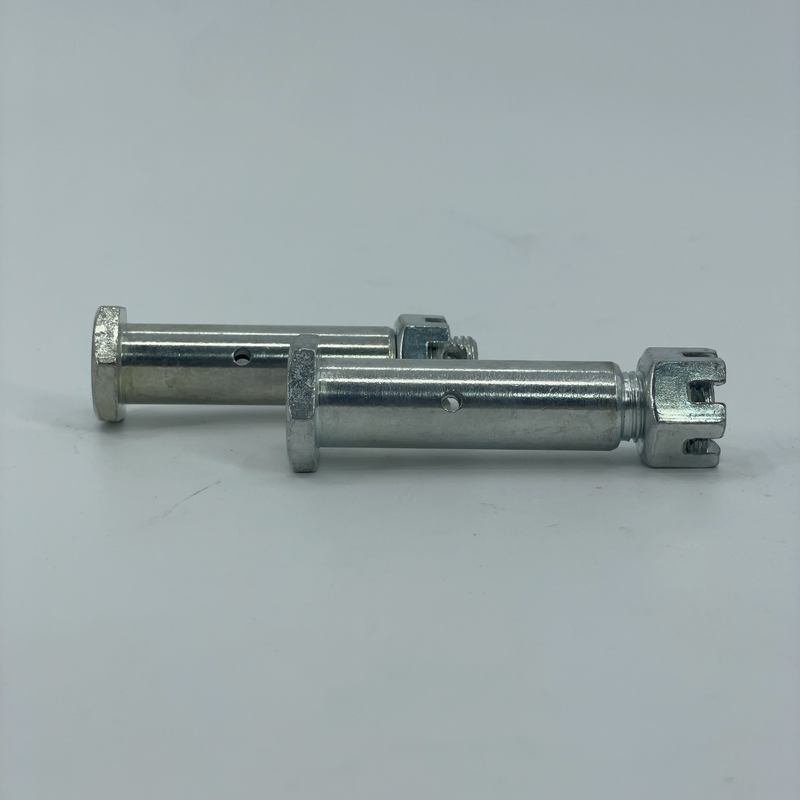

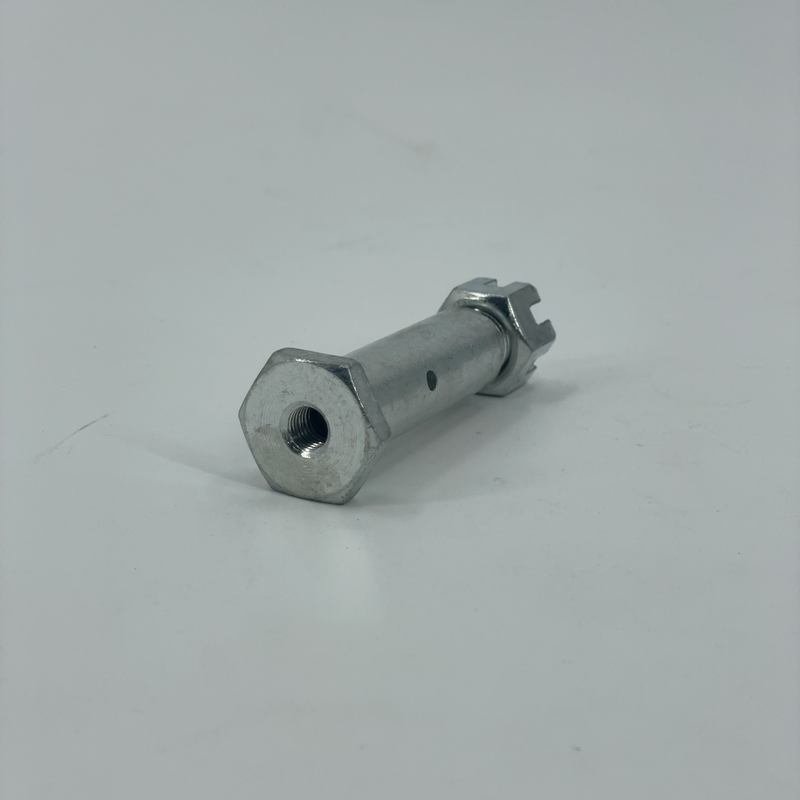

This forklift steering linkage pin part number N163-220008 is a Kingstream OEM steering link pin for Heli 2.5 ton, Hangcha CPCD20-30 (R series), and JAC CPCD25/CPCD50 forklift trucks in manufacturing, construction, warehousing, and material handling. Dimensions: 17mm diameter × 78mm length. Precision machined from alloy steel with a round body, slot at one end, and mounting holes at both ends. The steering link pin connects the steering cylinder rod end to the steering linkage assembly, providing the critical mechanical pivot that transfers steering cylinder motion to the wheel-turning linkage. Weight approximately 0.15kg (0.2kg gross). Kingstream OEM for forklift fleet steering linkage maintenance.

STEERING LINK PIN FUNCTION: The steering link pin is the pivot connector between the steering cylinder and the steering drag link or tie rod. The cylinder rod end clevis straddles the link pin, and the pin passes through both the clevis and the linkage end, secured by a cotter pin, snap ring, or retaining nut through the slot. When the steering cylinder extends or retracts, the pin transfers this linear motion to the linkage, which pushes or pulls the steering knuckle arm to turn the wheels. The alloy steel construction with the precise 17mm diameter ensures a tight, wear-resistant fit in the linkage bore. For forklift fleet steering linkage maintenance, contact us. Kingstream OEM.

INSTALLATION: Align the steering cylinder rod end clevis with the steering drag link bore. Insert the new N163-220008 pin through both components. Secure with the retaining clip through the slot or install the retaining nut — ensure the pin cannot back out during steering operation. Grease the pivot point through the grease fitting if equipped. Verify smooth steering operation without binding or excessive play. For forklift fleet steering maintenance, contact us. Kingstream OEM.

Technical Specifications

Kingstream OEM. Contact us.
