Forklift Transmission Input Plate DC6A26100000B

Forklift Transmission Input Plate DC6A26100000B — FD20~30-12/14, Transmission Torque Converter, 1.25kg

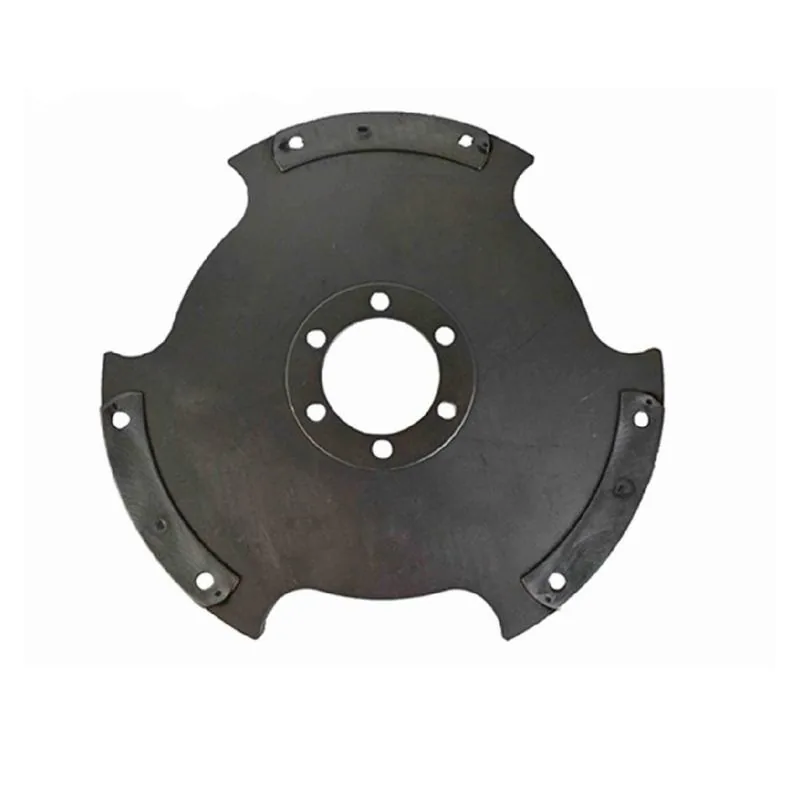

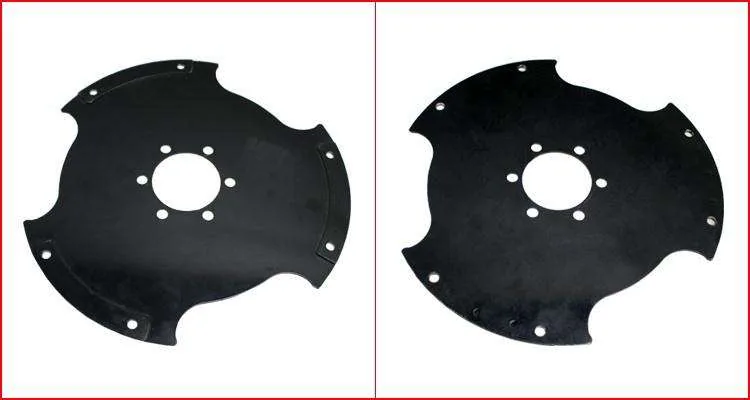

This is the transmission input plate (part number DC6A26100000B) for forklifts with FD20~30-12/14 transmissions — the steel plate that connects the torque converter or clutch assembly to the transmission input shaft, transmitting engine torque from the flex plate/flywheel assembly into the transmission gear train. The input plate is a flat steel disc with a precision-machined center bore that aligns with the transmission input shaft and a bolt circle pattern that matches the torque converter or clutch housing. The input plate must be perfectly flat — a warped plate (from overheating during a previous transmission failure) creates runout at the torque converter hub that destroys the transmission front pump bushing and seal within hours of installation. The input plate also serves as the mounting surface for the ring gear (starter motor engagement) on some transmission designs — a damaged ring gear tooth on the input plate prevents the starter from engaging and the engine from cranking. When replacing the input plate, always check the transmission input shaft for runout with a dial indicator — a bent input shaft will warp a new input plate within the first hours of operation.

Manufactured in Shandong, China. New condition, 1.25 kg net weight. MOQ: 1 piece. Qingdao port dispatch. Applied model: FD20~30-12/14 transmissions. Transmission parts type, torque converter application. Long working life design. When installing the input plate, verify the bolt hole pattern matches the torque converter or flex plate — an incorrect bolt circle diameter prevents installation. Apply thread locker to the mounting bolts and torque to specification in a cross pattern. Check for runout at the outer edge of the plate with a dial indicator after installation — maximum allowable runout is typically 0.15mm. Check the ring gear teeth for damage before installation — a chipped or worn tooth will cause starter engagement problems.

Compatible with FD20~30-12/14 transmission forklifts. Browse our transmission input plate selection. Visit HELI official website.

Technical Specifications

Compatible Models

Check input shaft runout. Confirm your transmission model →
