Forklift Parts H24C3-52000 Front Axle Differential Assembly for H2000 CPCD20~30
$359.99
H24C3-52000 front axle differential for HELI H2000 CPCD20-30 forklifts. Ductile iron case, forged alloy steel gears, pre-assembled with carrier bearings. Direct OEM replacement, 12-month warranty at Kingstream.
H24C3-52000 Front Axle Differential Assembly for HELI H2000 CPCD20-30

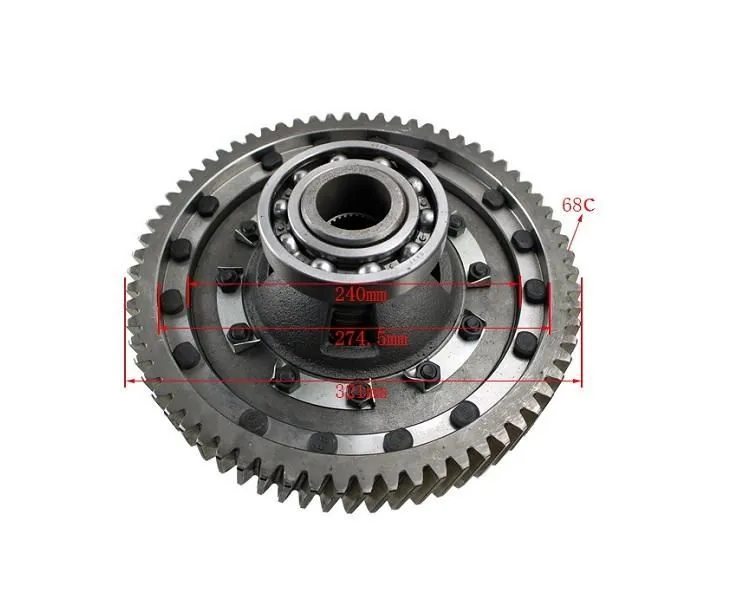

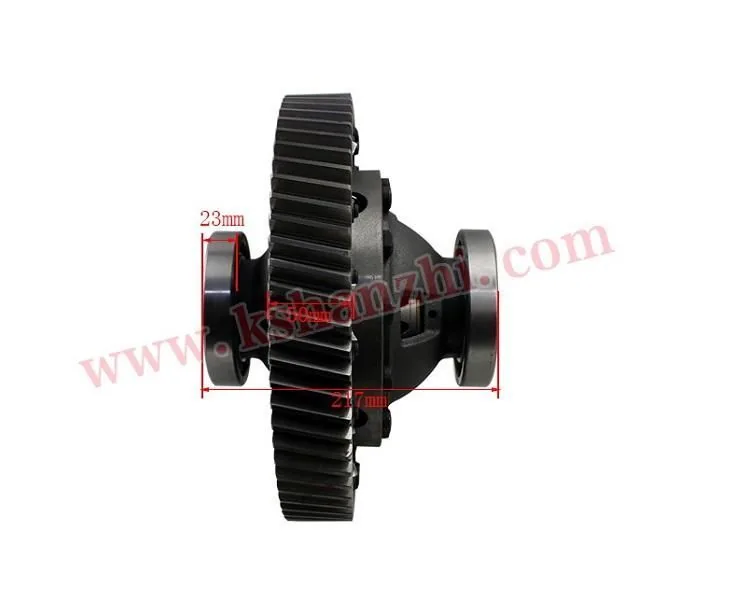

The H24C3-52000 is an OEM-spec front axle differential assembly designed for HELI H2000 series CPCD20 through CPCD30 2-3 ton internal combustion counterbalance forklifts. This differential distributes engine torque from the transmission to the left and right front drive wheels while allowing speed differentiation during cornering, preventing tire wear and driveline stress. The assembly includes the differential case, forged steel side gears, spider gears, hardened cross-shaft, and tapered roller carrier bearings — all pre-assembled and adjusted for direct drop-in replacement.
The differential case is manufactured from high-strength ductile iron with machined ring gear mounting flange for precise bolt-on attachment. The side gears and spider gears are forged alloy steel with machined tooth profiles that mesh with optimized backlash for smooth, quiet operation. The spider gear cross-shaft is case-hardened and precision-ground, and the carrier bearings are matched tapered roller type for long service life under the high radial and thrust loads encountered in forklift drive axle applications.
Direct bolt-in replacement for HELI H2000 series CPCD20, CPCD25, CPCD30, CPQD20, CPQD25, CPQD30 forklifts using the H24C3 drive axle. Always replace differential carrier bearings, axle seals, and gaskets during differential replacement. Fill the axle housing with the manufacturer-specified gear oil (typically 80W-90 GL-5) to the correct fill level. For compatible ring and pinion gear sets, axle shafts, seals, and bearing kits, visit our Forklift Drive Axle Parts section.
Technical Specifications
- PN: H24C3-52000
- Capacity: 2-3 Ton Forklift (CPCD20-30)
- Case Material: Ductile Iron
- Gear Material: Forged Alloy Steel
- Includes: Case, Gears, Cross-Shaft, Carrier Bearings
Compatible HELI Forklift Models
| Model | Type |
|---|---|
| CPCD20 / CPCD25 / CPCD30 | 2-3T Diesel |
| CPQD20 / CPQD25 / CPQD30 | 2-3T Gas/LPG |
Each differential is dimensional-inspected and gear-meshed verified. Ships with preservative coating. 12-month warranty. Contact our team.
