Engine Crankshaft for Isuzu 4D27 Forklift Diesel Engine

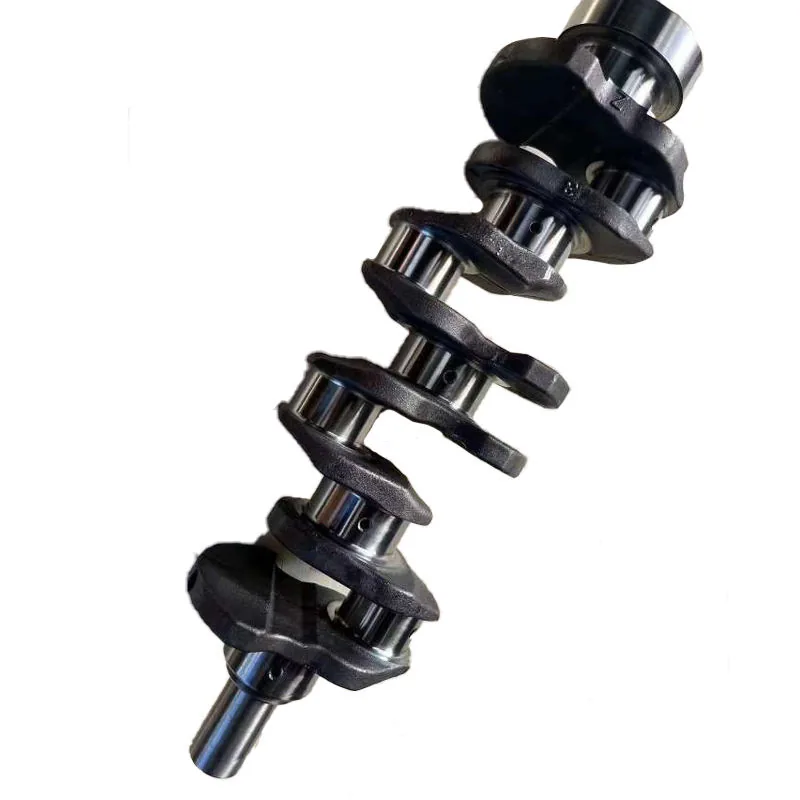

The engine crankshaft for the Isuzu 4D27 is a forged steel OEM-spec replacement crankshaft designed for 4D27-series 4-cylinder diesel engines widely used in HELI, Hangcha, Lonking, TCM, and other 3-5 ton internal combustion counterbalance forklifts. As the central rotating component of the engine’s bottom end, the crankshaft converts the reciprocating linear motion of the pistons and connecting rods into rotational torque that drives the flywheel, transmission, and ultimately the drive wheels. The 4D27 crankshaft features five main bearing journals and four connecting rod journals arranged in a flat-plane configuration, with each journal precision-ground to OEM specifications for diameter, roundness, and surface finish. A worn or damaged crankshaft — typically caused by oil starvation, connecting rod bearing failure, or excessive main bearing clearance — results in low oil pressure, engine knocking, progressively worsening vibration, and ultimately catastrophic engine failure if not addressed.

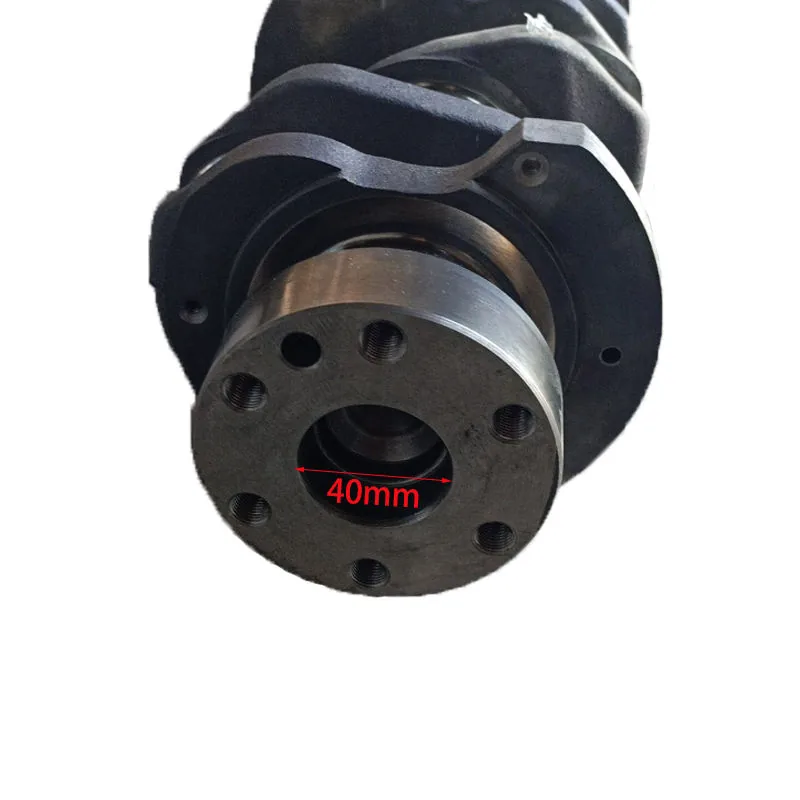

The crankshaft is manufactured from high-grade forged alloy steel (typically 40Cr or 42CrMo) through a multi-stage hot forging process that aligns the grain structure along the crank throws for maximum fatigue strength. After forging and rough machining, the journals undergo induction hardening to a depth of 2-4mm with a surface hardness of 50-55 HRC, providing the wear resistance required for the high-load, high-cycle operating conditions of forklift diesel engines where the crankshaft may rotate over 200 million times during its service life. Each main and connecting rod journal is then precision-ground to the specified diameter with a tolerance of +0/-0.015mm, a roundness of less than 0.005mm, and a surface finish of Ra 0.2μm or better. The oil drillings are chamfered and deburred to ensure unrestricted oil flow to each bearing, and the entire crankshaft is dynamically balanced to within 15g·cm to minimize vibration throughout the engine’s RPM range. The front nose features a keyway for the crankshaft timing gear and vibration damper, while the rear flange includes the precision-machined bolt pattern for the flywheel attachment.

Direct OEM replacement for Isuzu 4D27, 4D27T, and 4D27TI 4-cylinder diesel engines. Compatible with HELI CPCD30-CPCD50, Hangcha CPCD30-CPCD50, TCM FD30-FD50, and other forklifts using the Isuzu 4D27 engine platform. During replacement, always install new main bearings, connecting rod bearings, and thrust washers matched to the crankshaft journal size (standard or undersize). Measure main bearing clearance with Plastigauge and verify connecting rod bearing clearance before final assembly — typical specifications are 0.030-0.080mm for main bearings and 0.025-0.070mm for connecting rod bearings. Replace the front and rear crankshaft oil seals as part of the installation. After assembly, prime the oil system by cranking the engine with the fuel shut-off engaged until oil pressure registers on the gauge. For compatible main bearings, connecting rod bearings, thrust washers, timing gears, oil seals, and complete engine overhaul gasket kits, visit our Forklift Engine Parts section. For Isuzu 4D27 engine specifications, refer to Isuzu Motors technical documentation.

Technical Specifications

• SKU: 4D27-CRANKSHAFT
• Engine: Isuzu 4D27 / 4D27T / 4D27TI Diesel
• Type: Forged Steel Crankshaft, 4-Cylinder Flat-Plane
• Main Journals: 5 Bearings, Precision-Ground
• Material: Forged Alloy Steel (40Cr/42CrMo)
• Hardness: Induction Hardened Journals, 50-55 HRC
• Finish: Ra 0.2μm Journal Surface, Dynamic Balanced
• Oil Drillings: Chamfered & Deburred for Unrestricted Flow

Compatible Forklift Models

Each Kingstream 4D27 crankshaft undergoes a comprehensive QC protocol: journal diameter measurement at multiple points around the circumference with a micrometer accurate to 0.001mm, roundness verification on a precision rotary fixture, surface finish inspection with a profilometer, magnetic particle inspection for surface and subsurface cracks, and dynamic balance verification. The crankshaft ships with a heavy preservative oil coating, each journal wrapped in VCI anti-corrosion paper, and the entire assembly packed in a reinforced wooden crate with foam padding and desiccant packs. 12-month warranty against manufacturing defects. Recommended practice: always pre-lubricate all bearing surfaces with clean engine assembly lubricant or engine oil before assembly, and use new crankshaft pulley bolts torqued to OEM specification. For complete engine overhaul kits including pistons, rings, bearings, gaskets, and timing components, contact our technical team with your engine model and serial number.
