Isuzu 1-2 Synchronizer 42T/40T — ZP-5M-TB12-1 Transmission Gear Set

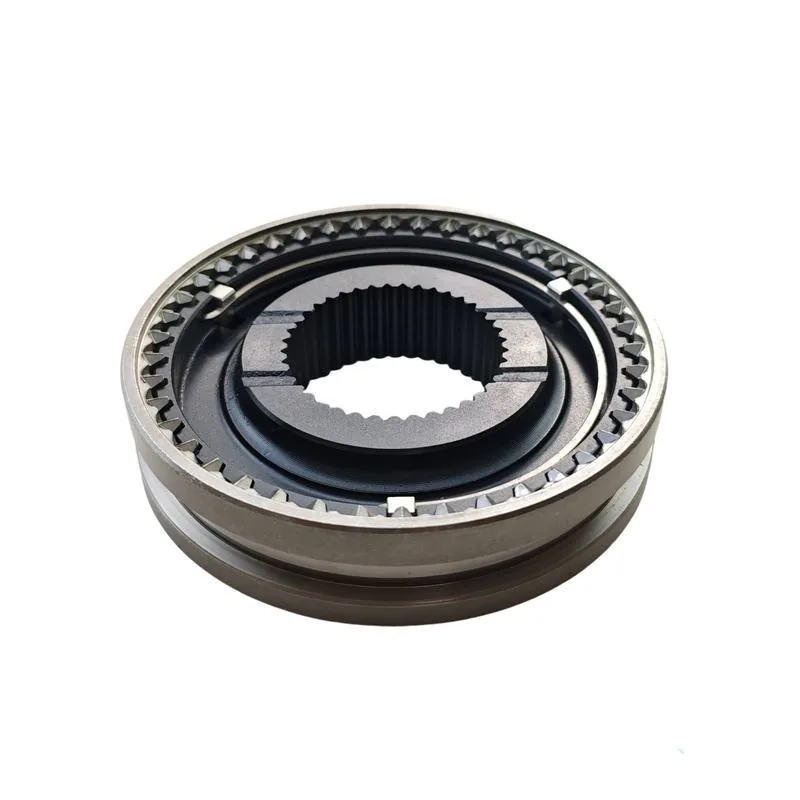

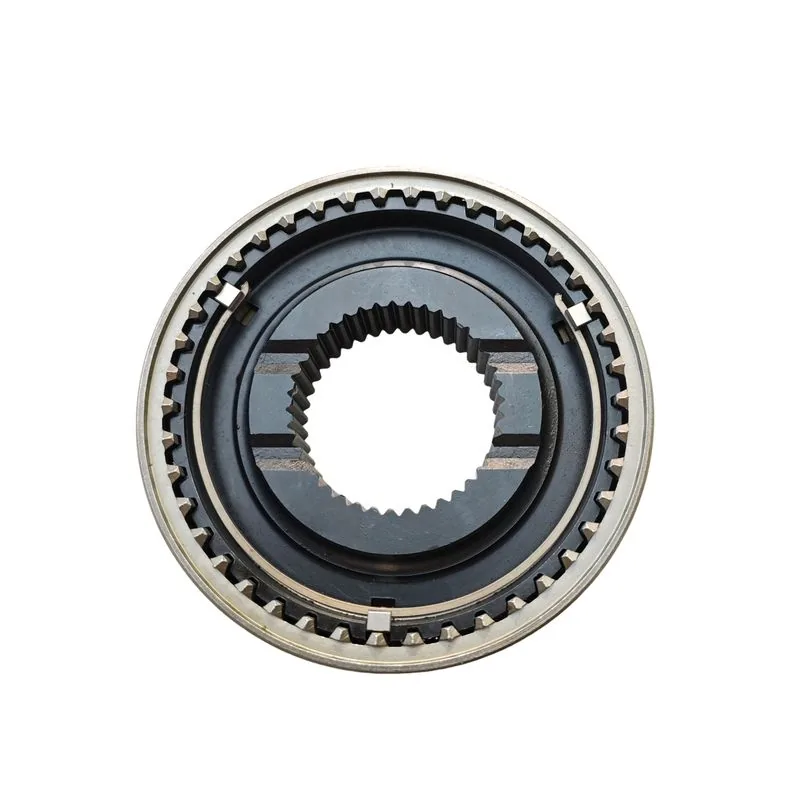

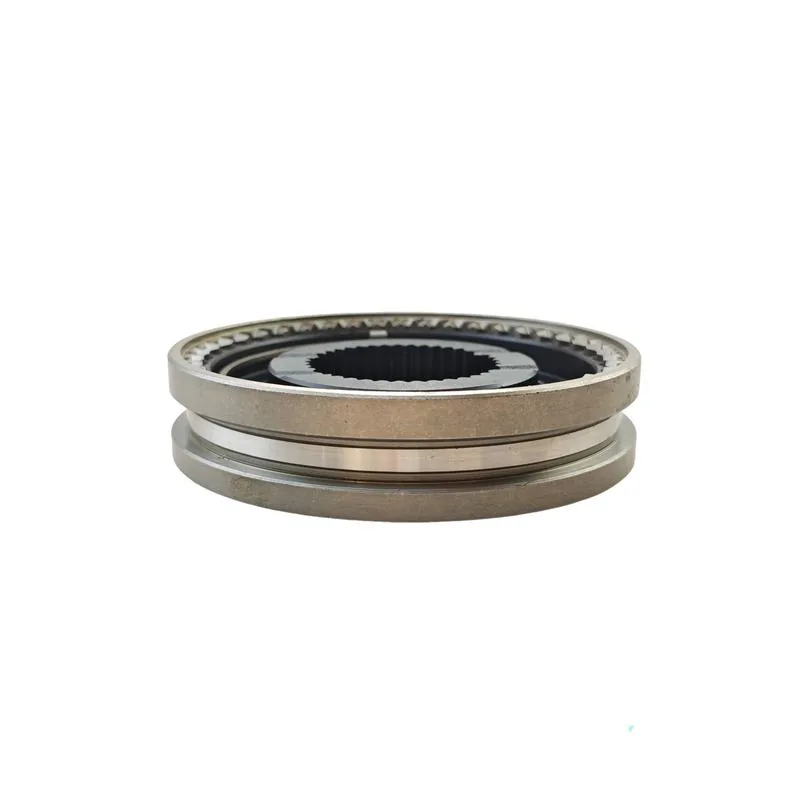

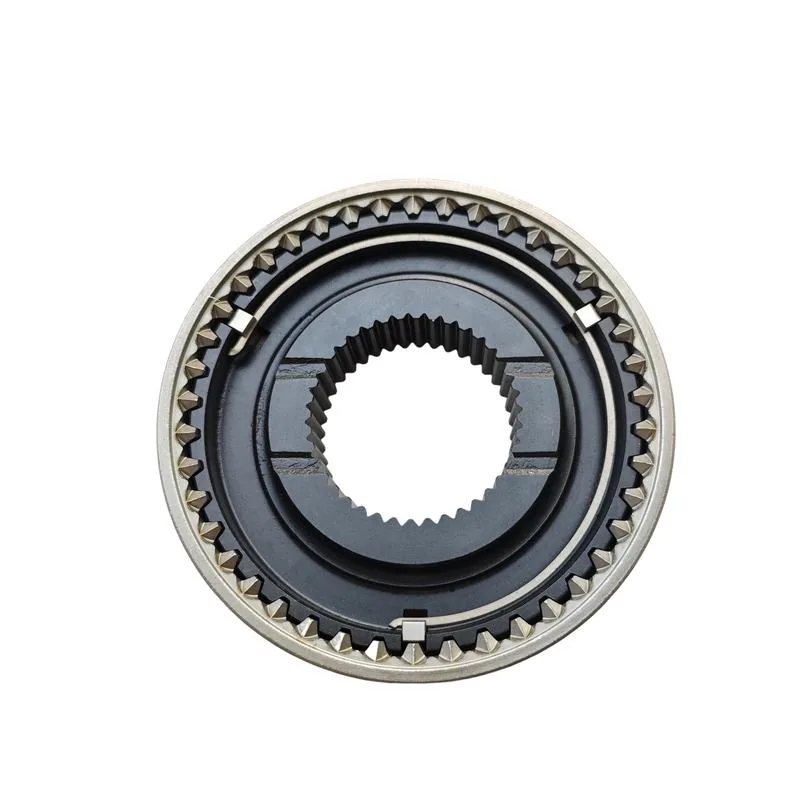

This 1-2 synchronizer assembly (model ZP-5M-TB12-1) is designed for Isuzu manual transmissions, featuring a 42-tooth 1st gear cone and 40-tooth 2nd gear cone in a single integrated hub assembly. Unlike the single-cone synchronizers used in passenger vehicle transmissions, this Isuzu truck/forklift unit uses a dual-cone design on the 1st gear side only — the 42T cone has both an inner brass ring and an outer sintered steel ring, providing approximately 2.5x the synchronizing torque of a single-cone design to overcome the higher rotating inertia of the 1st gear cluster in heavy-duty applications. The 40T 2nd gear side uses a standard single-cone design since the speed differential between 1st and 2nd gear is smaller and requires less synchronizing effort. The outer hub is machined from forged 45# steel with induction-hardened splines (HRC 50-55), and the engagement sleeve has a 6-key slot configuration with spring-loaded detent balls — a design that provides positive shift feel and prevents the sleeve from floating between gears under vibration. This ZP-5M-TB12-1 assembly is specifically for Isuzu 5-speed manual transmissions and is NOT interchangeable with the Mitsubishi or Nissan synchronizer units that share similar tooth counts but use different cone angles (6.5° vs Isuzu’s 7.0°).

The 1st gear dual-cone synchronizer requires a specific break-in procedure that is frequently overlooked. After installation, the first 20-30 1-2 shift cycles must be performed with the vehicle stationary and the engine at idle — this allows the molybdenum friction coating on the outer cone to transfer uniformly to the inner cone surface, establishing the proper friction coefficient of approximately 0.08-0.10. Attempting to power-shift during this break-in period will glaze the molybdenum surface, reducing the friction coefficient to 0.03-0.04 and causing permanent 1st gear clash that no adjustment can fix. The synchronizer hub-to-shaft spline fit is an H7/g6 sliding fit — if the hub can be rocked on the shaft by hand, both the hub and shaft must be replaced as a set. The engagement sleeve detent spring preload should be checked with a spring scale: the force required to move the sleeve from its neutral detent should be 8-12 kgf (80-120 N). Springs below 6 kgf will allow the transmission to pop out of gear during engine braking. Common failure symptoms: grinding when engaging 1st gear from a stop (glazed outer cone), difficulty downshifting from 2nd to 1st while moving (worn blocker ring key slots), and a buzzing vibration felt through the shift lever at 1,500-2,000 RPM in 2nd gear (loose synchronizer hub due to worn spline).

This ZP-5M-TB12-1 synchronizer fits Isuzu 5-speed manual transmissions used in NPR, NQR trucks and certain Isuzu-powered forklift applications. Always verify your transmission model code stamped on the top of the gearbox case — Isuzu used two different 5-speed variants during this production era with different synchronizer key widths (8mm vs 10mm) that are visually identical. For related transmission components including shift forks, mainshafts, and bearing kits, visit our Forklift Mechanic Transmission section. For OEM specifications, consult the Isuzu Official Website.

Technical Specifications

• Model: ZP-5M-TB12-1
• Synchronizer Type: 1-2 Gear, 1st Side Dual-Cone
• Tooth Configuration: 42T (1st Gear) / 40T (2nd Gear)
• Cone Angle: 7.0° (Isuzu-Specific)
• Hub Spline Fit: H7/g6 Sliding Fit
• Detent Spring Preload: 8-12 kgf (80-120 N)

Compatible Applications

Each synchronizer is factory-lubricated, sealed in rust-preventive packaging, and ships within 1-2 business days. 12-month warranty. For bulk orders or other Isuzu transmission parts, contact us. Browse our Forklift Mechanic Transmission catalog.
