JK411 Four-Wire Plug Forklift Preheating Switch for a Variety of Models Forklift

JK411 Four-Wire Preheating Ignition Switch for Diesel Forklift

The JK411 is a four-wire preheating ignition switch designed for diesel forklifts requiring manual glow plug activation. Positions are OFF-ON-PREHEAT-START. Turning to PREHEAT energizes glow plugs for 10-20 seconds before cranking — essential for cold-start reliability on Xinchai 490/495/498, Isuzu C240, and Yanmar diesel engines where glow plug preheat is the single most critical factor in sub-10°C starting.

The four-wire configuration provides separate circuits for glow plug relay activation, preheat indicator lamp, ignition ON signal, and starter solenoid. Die-cast lock cylinder with dust shutter. Directional switch category.

Technical Specifications

• Model: JK411
• Type: 4-position preheating ignition switch
• Positions: OFF-ON-PREHEAT-START

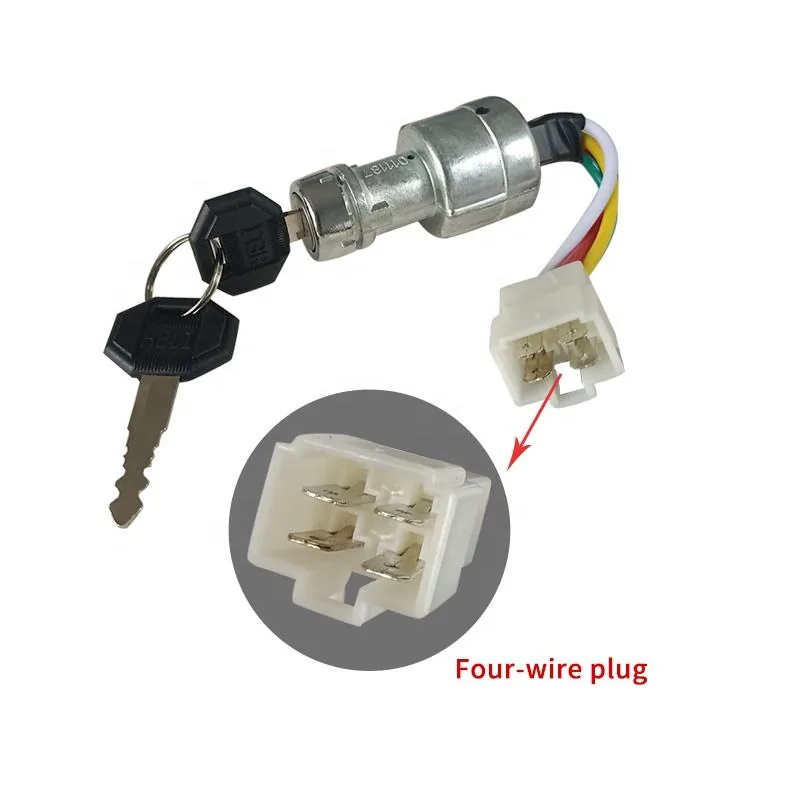

• Connection: 4-wire plug
• Lock: Die-cast cylinder, dust shutter
• Application: Diesel forklift glow plug preheat circuit

Never crank the engine without preheating first in cold conditions — unburned fuel washes cylinder walls and accelerates ring wear. Baldwin Filters. Worldwide shipping from Kingstream.
