K Series Forklift Brake Master Pump / Master Cylinder

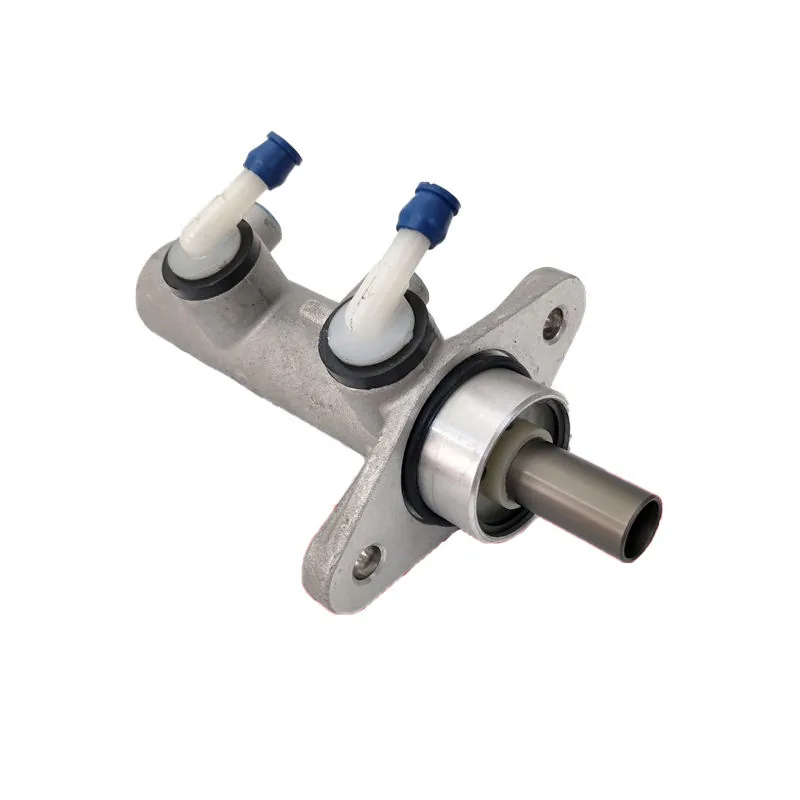

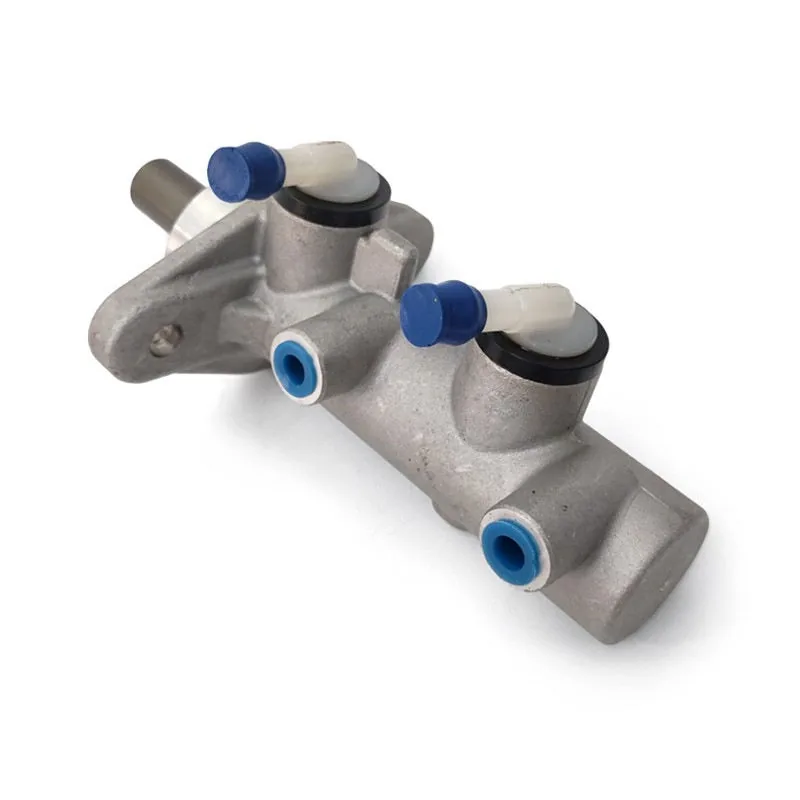

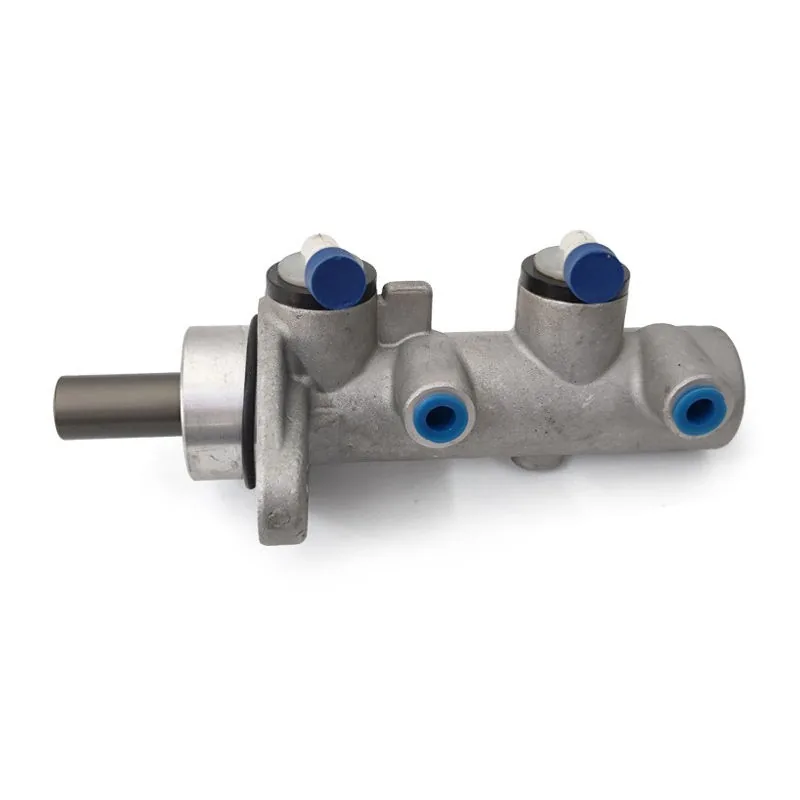

This K Series brake master pump is a heavy-duty hydraulic master cylinder designed for K Series 5-10 ton internal combustion forklifts equipped with drum brake systems. The K Series master pump converts mechanical pedal input into hydraulic pressure through a large-bore piston assembly, delivering the high fluid volume and clamping force required to safely stop heavy-load forklifts in demanding industrial environments such as ports, steel yards, and lumber handling facilities. The cast iron body features a reinforced mounting flange that bolts directly to the firewall or pedal bracket, while the oversized reservoir with screw-cap lid provides ample fluid capacity for full-stroke brake application without risk of drawing air into the system.

Internally, the cylinder uses a twin-seal piston design with EPDM primary and secondary cups that maintain reliable sealing through millions of actuation cycles. The piston bore is precision-honed to a mirror finish (Ra 0.8μm or better), and the return spring is high-tensile chrome-silicon wire that provides consistent pedal return force without fatigue. The dual-circuit outlet configuration (M10x1.0 or M12x1.0 metric threads depending on model year) splits the braking system into front-left and front-right independent circuits, ensuring that a single brake line failure does not result in complete loss of braking. The push rod interface includes a dust boot that seals against the pedal linkage to prevent dirt and moisture from contaminating the cylinder bore.

Direct replacement for HELI K Series (K50, K60, K70), Hangcha K Series, Lonking K Series, and other domestic-brand 5-10 ton forklifts using K-type brake master pump assemblies. Before installation, compare the mounting bolt pattern and outlet thread size with your existing unit — K Series cylinders may have slight variations between model years and sub-models. Always bench-bleed the new master cylinder before mounting to ensure complete air evacuation. Use only fresh DOT 3 or DOT 4 brake fluid from a sealed container. For compatible brake fluid, wheel cylinders, brake shoes, and complete K Series brake overhaul kits, visit our Forklift Brake Parts section.

Technical Specifications

• SKU: K-SERIES-BRAKE-MC
• Capacity: 5.0 – 10.0 Ton Forklift
• Body Material: Heavy-Duty Cast Iron
• Bore Type: Large-Bore Twin-Seal Piston
• Fluid: DOT 3 / DOT 4 Compatible
• Outlet: Dual-Circuit Metric Thread
• Reservoir: Oversized, Screw-Cap with Vent

Compatible Forklift Models

Each K Series master pump is pressure-tested at 2500 PSI, vacuum-leak-checked, and bench-bled before packaging. The cylinder ships with outlet port dust caps installed and is packaged in a VCI anti-corrosion bag inside a foam-padded heavy-duty box. Mounting gasket and reservoir cap are included. 12-month warranty. Installation note: the K Series master pump uses a longer push rod stroke than 3T-class cylinders — verify pedal free play is set to 3-5mm at the push rod before road testing. For fleet maintenance support, contact our team.
